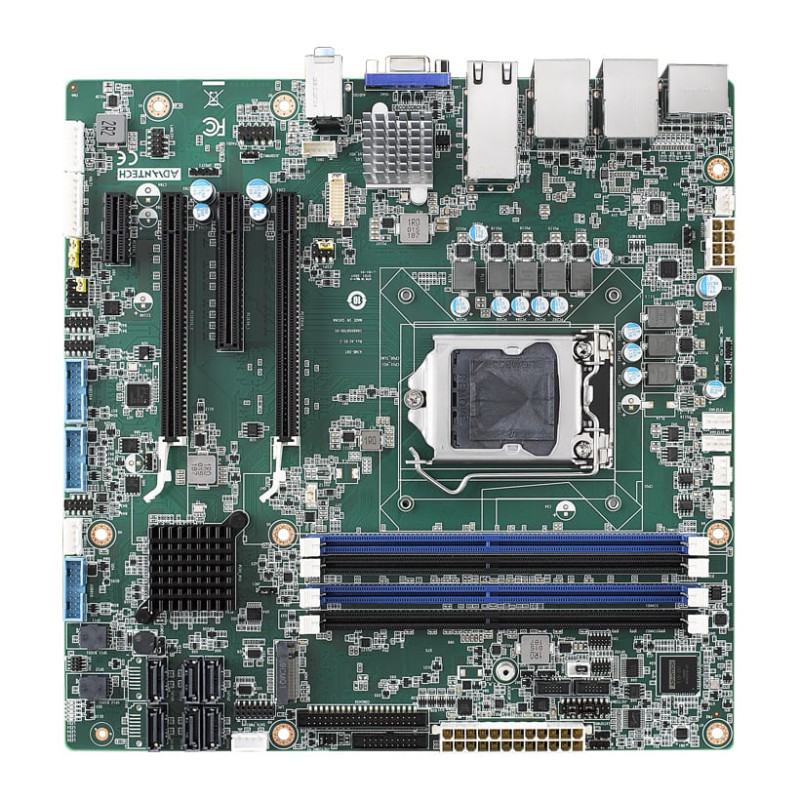

Advantech AIMB-587QG2-00A1E

Name: Advantech AIMB-587QG2-00A1E
Brand: Advantech
SKU: AIMB-587QG2-00A1E
Price: 464 EUR
Availability: OutOfStock

€464

Tax excluded

LGA1200 mATX 2DP/6SATA/6COM/12USB/2GbE/

Supports Intel® 10th Gen Xeon/ Core™ i9/i7/i5/i3 processor with Q470E/ W480E/ H420E chipset.
Four U-DIMM sockets support up to 128GB DDR4 2666/2933 MHz SDRAM.
Supports 2 DP++, VGA(option), eDP display with Triple Display support.
Supports Intel AMT 12.0 and Intel vPro competent.
Supports PCIE Gen3, Dual 10 GbE LAN, Dual GbE LAN, M.2(M-key) and up to 8 x SATAIII.
Supports 4 USB3.2 Gen2, 6 USB3.1 Gen1 and 6 USB2.0.
Supports SUSI, WISE-DeviceOn and Edge AI Suite.

Quantity

On enquiry

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech AIMB-587QG2-00A1E

Intel® Xeon® 10th Gen Core™i9/i7/i5/i3 LGA1200, MicroATX with2 DP++/VGA/eDP /6 COM, 2 Gbe LANs/ 2 10GbE Lans/ 4 USB3.2 Gen2/ 6 USB3.0 Gen1, ATX

Form Factor	Form Factor	Micro ATX
Processor	CPU TDP	65W / 35W
	Core Number	10/8/6/4/2
	Frequency	2.2GHz ~ 3.8GHz
	BIOS	AMI EFI 128Mbit
Memory	Max. Capacity	128GB
Processor	L3 Cache	2 ~ 8MB
	Chipset	Intel Q470E
Memory	Technology	Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM
Display	Controller	Intel HD Graphics
	Graphic Engine	DirectX 11.2, OpenGL 5.0, OpenCL 2.1
	Graphic Memory	1GB maximum shared memory with 2GB and above system memory installed
Memory	ECC Support	Yes/NO
Display	LCD (TTL/LVDS/eDP)	eDP: support to 3840 x 2160 @ 60 Hz
Memory	Socket	4 x 288-pin DIMM
Display	DDI (HDMI/DVI/DisplayPort)	HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz
	Multiple Display	Dual/ Triple
Expansion	PCI Express x 16	1
	PCI Express x 8	option
	PCI Express x 4	1
	PCI Express x 1	1
	SMBus	1
Audio	Audio Interface	HD Audio
Ethernet	Controller	LAN1: Intel i219LM / LAN2: Intel i211AT
	Speed	10/ 100/ 1000 Mbps
Audio	CODEC	Realtek ALC888S, High Definition Audio (HD)
	Connector	2 (Line out, Mic-in)
Ethernet	Connector	RJ45 x 2
Watchdog Timer	WatchDog Timer	Yes
Storage	SATA	6 x SATAIII (Max. Data Transfer Rate 600 MB/s)
	RAID	Software RAID 0, 1, 5, 10
I/O	GPIO	16-bit GPIO
	USB3.0	6
	USB2.0	6
	COM Port	6 ( 5 x RS232, 1 x RS232/ 422/ 485)
	Keypad	1
	TPM	Optional
	Smart Fan	5
Power	Power Type	ATX
	Connector	ATX24P
	Power Consumption (Full Load)	3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
	Battery	Lithium 3 V / 200 mAh
Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Non-Operational Temperature	-40 ~ 85° C and 60° C @ 95% RH Non-Condensing
	Vibration Resistance	3.5 Grm (Non-Operation Mode)
Physical	Dimension (mm)	244 x 244 mm
	Weight	1.2 kg (2.64 lb), weight of total package
Operating System	Microsoft Windows	Yes
	Linux	Yes
	SUSIAccess	Yes
Certification	EMC	CE, FCC

Brand Advantech

Reference AIMB-587QG2-00A1E

Download

AIMB-587_DS(082721)20210827160444.pdf
