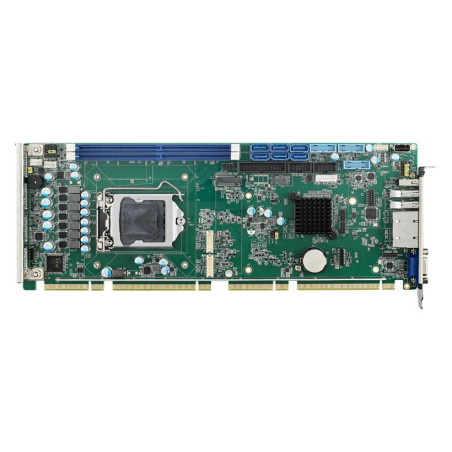

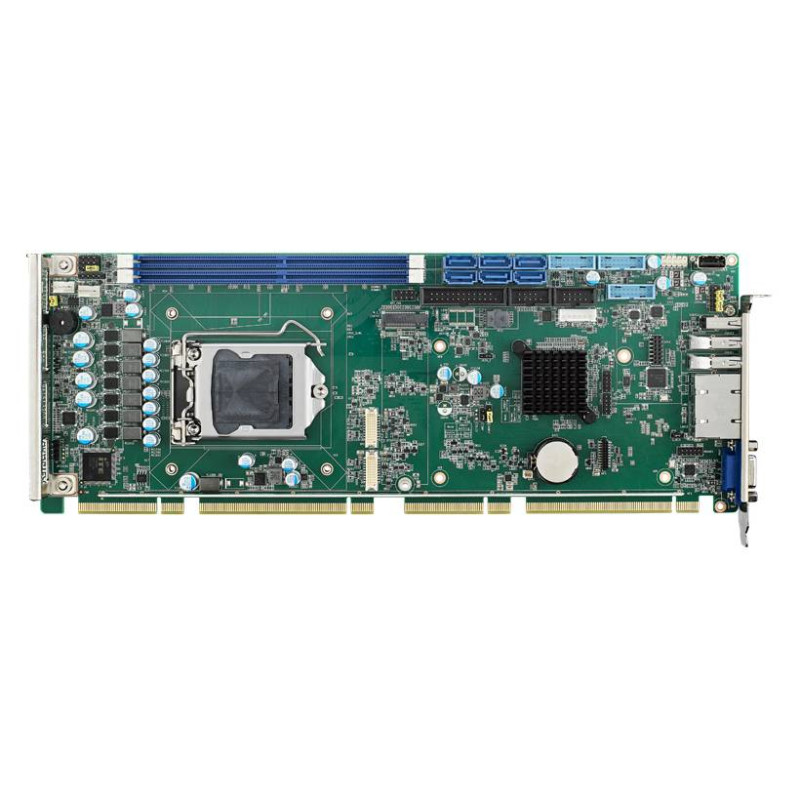

Advantech PCE-5132G2-00A3

Name: Advantech PCE-5132G2-00A3
Brand: Advantech
SKU: PCE-5132G2-00A3
Price: 731 EUR
Availability: InStock

731 €

Tax excluded (incl. VAT: 885 €, 21%) In stock

LGA1200 Q470E DDR4/Core i9/VGA, w/o LPT,8892

Intel® Core™ i9/7/i5/i3 LGA1200 processor with Q470E chipset.
Up to 64 GB of dual-channel (non-ECC) DDR4 2666/2933 MHz.
PCIe 3.0, M.2, USB 3.2, SATA 3.0, and SW Raid 0, 1, 5, 10.
Supports out-of-band remote management with AMT.
Supports Advantech’s LPC modules, SUSIAccess, and embedded software APIs.

Technical Documentation:

PCE-5132_DS(010625)20250107102957.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron System Host Board with DDR4, SATA 3.0, USB 3.2, M.2, Dual GbE, and Triple Displays

Processor System	CPU	10th Gen Intel® Xeon®/Core™ processors
	Socket Q'ty	1 x LGA1200
	TDP	Up to 125 W
	Core Number	Up to 10
	L3 Cache	Up to 20 MB
	Chipset	Intel Q470E/H420E
	BIOS	AMI 256 Mbit SPI Flash
Memory	Type and Speed	Dual-channel DDR4 2666/2933 MHz (non-ECC)
	System Max Capacity	64 GB
	Per Slot Max Capacity	32 GB
	Slots	2 x 288-pin DDR4
LAN	Interface	10/100/1000 Mbps
	Controller	LAN1: Intel® I219-LM, LAN2: Intel® I210-AT
	Connector	2 x RJ45
Rear I/O Interface	VGA	1
	Ethernet	2
	USB3.0	2
	USB2.0	1
WatchDog Timer	Output	System Reset
	Interval	Programmable 1~255 sec
Environment	Operating Temperature	0 ~ 60 °C
	Non-Operational Temperature	-40 ~ 85 °C
	Operating Humidity	95% @ 40 °C (Non-condensing)
	Non-Operating Humidity (Non-condensing)	95% RH @ 60 °C
Physical Characteristics	Dimension (L x H)	338 x 122 mm (13.3" x 4.8")
Expansion	PCIe x16	1
	PCIe x4	1
	PCI	4
Internal Connector	USB	5 x USB 2.0 ( 1 USB Type A + 4 to backplane), 6 x USB 3.2
	SATA	6
	M.2 (2280 Type M)	1 (PCIe x4)
	DP/DVI-D/HDMI	2 (Pin header)
	COM	2
	GPIO	8 bit

Reference PCE-5132G2-00A3

In stock 30 Items

Data sheet

Temperature (Operating Range): 0 ~ 60 °C

Download

PCE-5132_DS(010625)20250107102957.pdf
