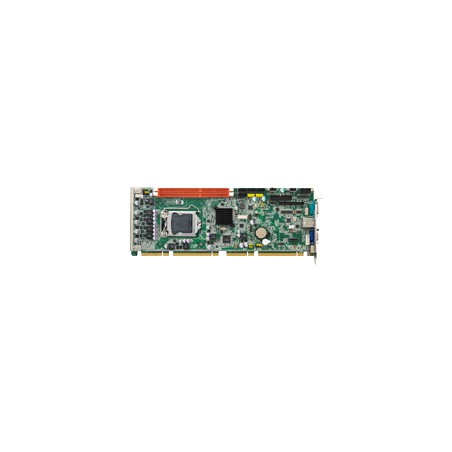

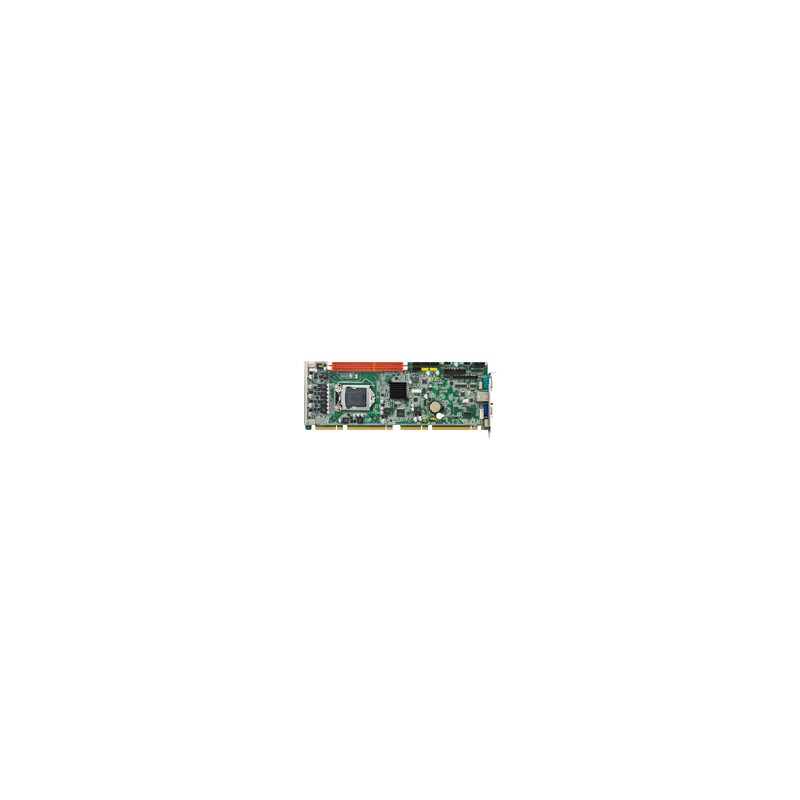

Advantech PCE-5026VG-00A1E

Name: Advantech PCE-5026VG-00A1E
Brand: Advantech
SKU: PCE-5026VG-00A1E
Price: 330 EUR
Availability: OutOfStock

€330

Tax excluded

LGA1155 H61 FSHB with DDR3/Core i7/VGA/1

LGA1155 Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors.
Dual Channel (Non-ECC) DDR3 1066/1333/1600* up to 16 GB.
Supports 10 USB2.0 and TPM1.2(Optional).
Supports embedded software APIs and utilities.

Quantity

On enquiry

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech PCE-5026VG-00A1E

LGA1155 Intel® Core™ i7/i5/i3 SHB DDR3/SATA 2.0/Single GbE

Form Factor	Form Factor	PICMG1.3 Full-Size SBC
Processor System	CPU	Intel 2nd, 3rd Core i3/i5/i7 (LGA 1155)
	CPU TDP	Up to 95 W
	Frequency	Up to 3.4 GHz
	Core Number	4
	L3 Cache	8 MB
	BIOS	AMI 64 Mbit
	Chipset	Intel H61
	Integrated Graphics	Yes
Memory	Technology	DDR3 1066/1333/1600 MHz
	Capacity	Up to 16 GB
	Socket	1 x 240-pin DDR3
Display	Controller	Intel HD graphics Integrated
	Graphic Memory	Shared with system memory up to 1GB
	Multiple Display	Single
	Display Interface	VGA: Up to 2048 x 1536
Expansion Interface	PCI Express x 16	1
	PCI Express x 4	1
	PCI	4
Ethernet	Controller	LAN1: Intel 82579V
	Speed	10/100/1000 Mbps
	Connector	2 x RJ45
Watchdog timer	Output	System Reset
	Interval	Programmable 1 ~ 255 sec
I/O	COM Port	2 x RS-232
	GPIO	8-bit
	LPT	1
	PS/2 Keyboard/Mouse	1
	SATA	4 x SATAII
	System Fan	1
	USB3.0	10
Rear I/O Interface	COM	1 x RS-232
	PS/2	2 (1 x Keyboard, 1 x Mouse)
	Ethernet	1
	VGA	1
Power Requirement	Voltage	+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V
	Current	6.65 A/1.62 A/1.98 A/0.73 A/0.13 A/0 A
Environment	Operating-Temperature	0 ~ 60° C (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Non-Operational Temperature	-40 ~ 85° C and 60° C @ 95% RH Non-Condensing
	Non-Operating Vibration	2 Grms
Physical Characteristics	Dimensions (LxW)	338 x 122 mm (13.3" x 4.8")
	Weight	0.5 kg
Certification	EMC	CE/FCC

Brand Advantech

Reference PCE-5026VG-00A1E

Download

PCE-5026_DS(01.24.13)_R20140721110019.pdf
