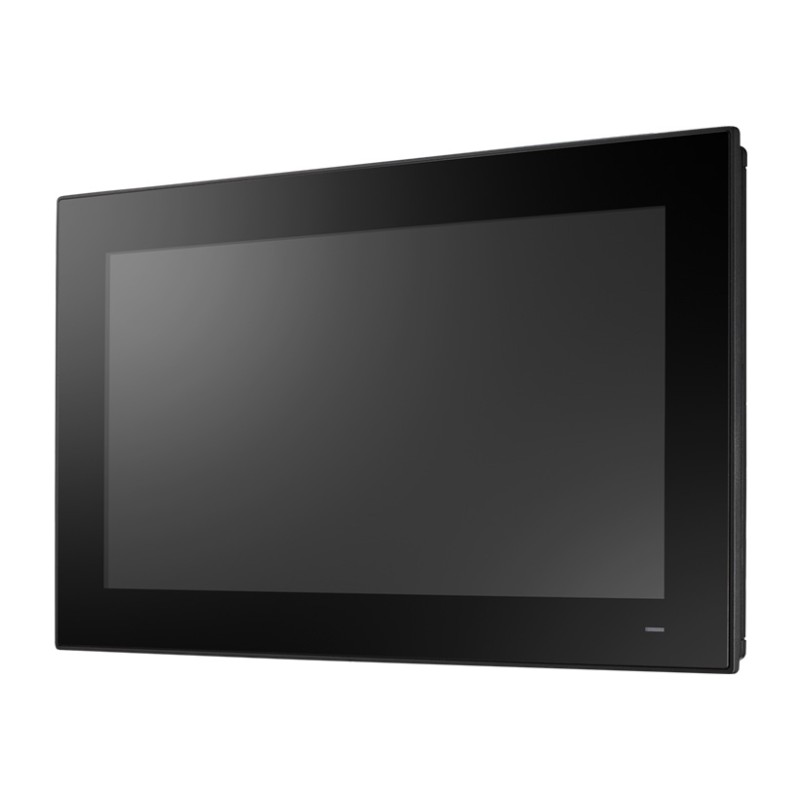

Advantech PPC-318W-PB3A

1 684 €

Tax excluded (incl. VAT: 2 038 €, 21%) In stock

18.5" PPC w/Intel i3-1115G4E, Pcap

Industrial-grade 18.5" LCD panel with 50k backlight lifetime.
True-flat touchscreen with multi-touch projected capacitive control.
High-performance, fanless 11th generation Intel® Core™ i processor.
Dual channel memory slots, max 64G.
Compact, fanless design with aluminum alloy enclosure.
IP66-rated front panel.
1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1.
1 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology.
Supports VESA 100, TPM2.0 hardware security and Type C (USB only).

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Description
Product Details

PPC-318w TGL is an 18.5" Fanless Panel PC equipped with Intel 11th Gen Core i7/i5/i3, providing high computing performance with a robust aluminum alloy enclosure. It also leverages M.2 M key NVMe PCIe to accommodate extremely high data rate and low latency advantage.

Environment	Ingress Protection	Front Panel IP66
	Operating Temperature	-10~50 °C
	Relative Humidity	95% RH (non-condensing)
	Storage Temperature	-20~60 °C
	Vibration Protection	1 Grms, random
Hardware	Certification	CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
	CPU	Intel® Core™ i3-1115G4E 2.2GHz Dual core
	Ethernet	Intel® i219-LM GbE, Intel® i225-LM GbE
	Expansion	1 x M.2 E Key 2230
	I/O	1 x RS-232, 1 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Type C, 1 x HDMI, 1 x Line Out
	LAN	1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
	Memory	2 x DDR4 SO-DIMM Slot
	OS Support	Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
	Power Consumption	70 W @ 19 VDC
	Power Input	12~30 VDC
I/O Interface	Displays	1 x HDMI
	Power Connector	1 x 2-Pin Terminal Block
	Serial Ports	1 x RS-232, 1 x RS-232/422/485
LCD Display	Backlight Life (hrs)	50,000
	Display Size	18.5"
	Luminance (cd/m2)	450
	Max. Resolution	1366 x 768
	Viewing Angle (H/V°)	170/160
Mechanical	Dimension (W x H x D)	488 x 309 x 62 mm
	Enclosure	Die-cast aluminum alloy
	Mounting	Stand, Wall, VESA, Panel
	Weight (Net)	5.7 kg (12.56 lb)
Touchscreen	Touch Type	PCAP
USB Vision	Connector	3 x USB 3.2 Type A, 1 x USB 2.0 Type A, 1 x Type C
Hardware	Hardware Security	TPM 2.0

Reference PPC-318W-PB3A

In stock 9 Items

Data sheet

Temperature (Operating Range): -10~50 °C
