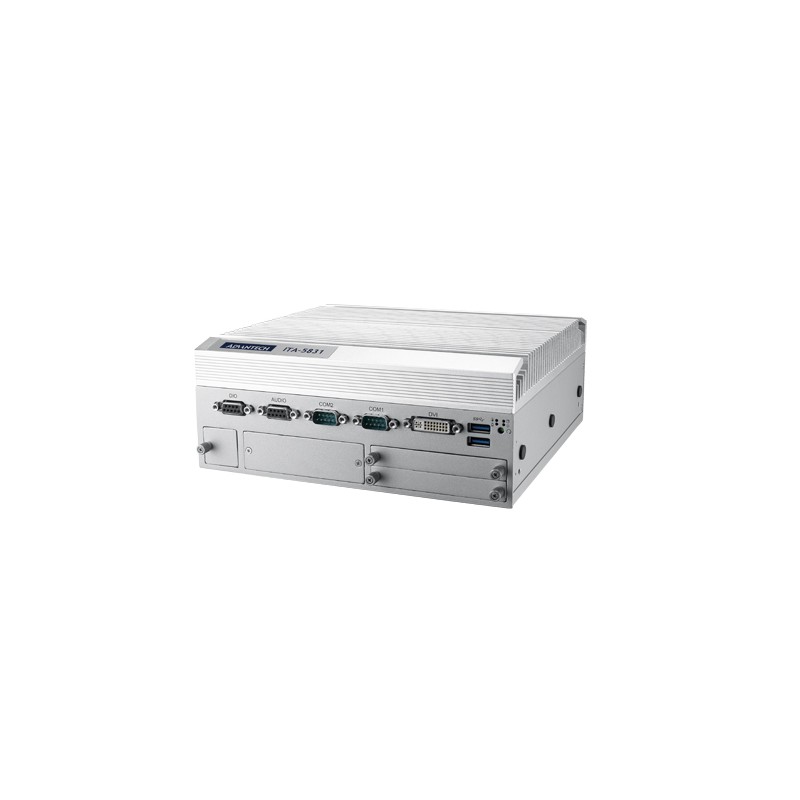

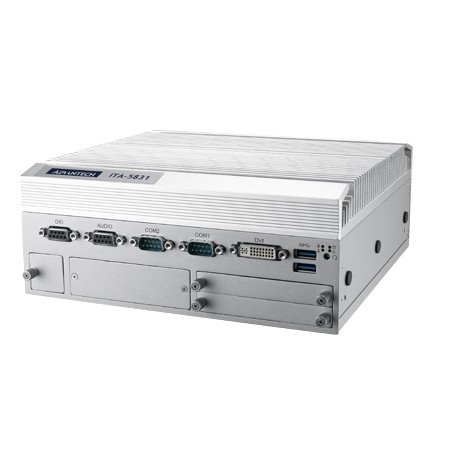

Advantech ITA-5831-S7A1E

Name: Advantech ITA-5831-S7A1E
Brand: Advantech
SKU: ITA-5831-S7A1E
Price: 3725 EUR
Availability: OutOfStock

3 725 €

Tax excluded (incl. VAT: 4 508 €, 21%)

ITA-5831,i7-6822EQ+8G memory,DC-IN 110V,EN50155

Intel skylake-H platform with QM170.
Fanless computer for railway vehicle applications, fully compliant with EN 50155.
Compliant with EN 50121-3-2/ EN 50121-4 EMC test standard.
Ruggedized connectors (M12) used for communication and power ports.
Support Easy-swap storage module and I/O module.
No RED Certification.

Technical Documentation:

ITA-5831_DS(050923)20230516155255.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Intel® 6th Generation Core™ i Processor Fanless System; EN 50155 Complied Product for Railway Applications

Processor System	CPU	Intel® Core™ i7-6822EQ
	Frequency	2.0 GHz (Up to 2.8 GHz w/ burst frequencey enable)
	L3 Cache	8 MB
	Chipset	Intel QM170
	BIOS	AMI SPI 16M byte
Memory	Max. Capacity	8GB on board memory, DDR4 2133MHz
Ethernet	Controller	2 x Intel® I210-IT
	Interface	10/100/1000 Mbps
	Connector	Up to 3 x M12 X-coded
Display	Graphic Memory	Share with system memory up to 512MB
	Controller	Intel Integrated Graphics GT2
WatchDog Timer	Output	System Reset
Power	Input	DC-IN 110V
WatchDog Timer	Interval	Programmable 1~255 sec
I/O	Digital I/O	1 x DB9, 4GPI/4GPO with 2KV Isolation
	COM Port	2 x DB9, RS-232/422/485 with 2KV Isolation, Support auto-flow control
	USB3.0	2 x USB3.0 with Type A
EN 50155 Compliance	EMC	EN 50121-3-2, EN 50121-4
I/O	USB2.0	1 x USB2.0 with M12 A-coded 4-pin
Certification	EMC	CE/FCC Class A, CCC, BSMI
Storage	SSD	Max to 3 x 2.5" SSD(7mm)
Power	Connector	1 x M12 S-coded(M) 4-pin
Mechanical	Dimension	220 x 88 x 197.2 (8.66" x 3.46" x 7.76")
EN 50155 Compliance	Ambient Temperature	EN 50155 TX(-40~70℃)
Certification	Safety Certifications	UL/CB/CCC
	Safety Certifications	UL/CB/CCC/BSMI
EN 50155 Compliance	Shock and Vibration	IEC 61373 body mount class B
	Supply Change Over	Class C1
Environment	Non-Operational Temperature	-40 ~ 85° C
	Operating Humidity	5 ~ 95% @ 40° C
	Operating Temperature	-40 ~ 70 ℃
I/O	Audio	1 x Speaker-out with 2W4Ω Amp., 1 x Mic-in
	Display	1 x DVI-I

Reference ITA-5831-S7A1E

Download

ITA-5831_DS(050923)20230516155255.pdf
