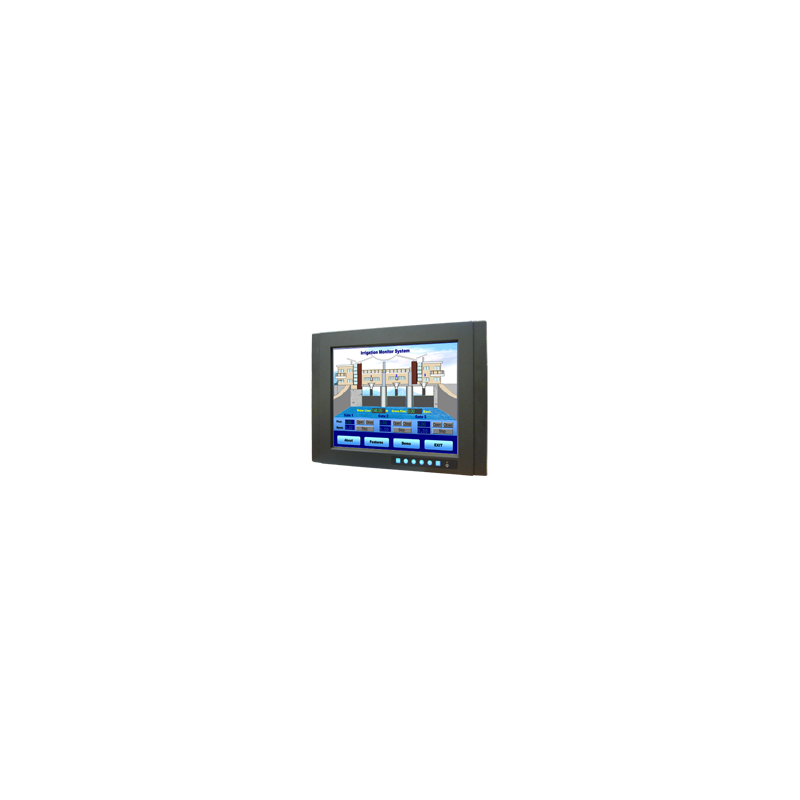

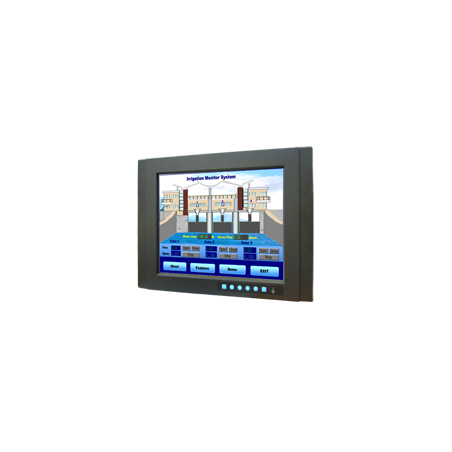

Advantech FPM-3151G-R3BE

1 106 €

Tax excluded (incl. VAT: 1 339 €, 21%) In stock

15" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI Ports, and Wide Operating Temperature

15" XGA LED backlight LCD with low power consumption.
Robust anodized coated aluminum front bezel and stainless steel rear cover.
Supports wide operating temperatures.
Increase reliability by enhanced 5-wire resistive touch sensor.
Anti-reflective screen with tempered glass.
Full enclosure ground isolation protection.
Supports VGA/DVI input, dual touch interfaces and two power inputs.
Front lockable OSD membrane keys with user-defined brightness setting.
Front panel is IP65 compliant.
Supports panel, VESA, wall and desktop stand mounting.

Technical Documentation:

FPM-3151G_DS(111424)20241118104130.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The FPM-3151G is a particularly rugged and reliable 15” XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a hard anodized coating, stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system ground isolation protection to enhance the reliability. FPM-3151G also provides lockable OSD keys on the front panel with two user-defined contrast/brightness settings.

Environment	Ingress Protection	Front Panel IP65
	Operating Temperature	-20~60 °C
	Storage Humidity	10~95% RH (non-condensing)
	Storage Temperature	-30~80 °C
	Vibration Protection	1 Grms, random
Hardware	Certification	CB, UL, CE, FCC Class A, CCC, BSMI, Energy Star
	OS Support	Microsoft® Windows 2000,Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
	Power Input	Phoenix Jack: 24 VDC, DC Jack: 12 VDC
	Video Port	VGA, DVI-D
I/O Interface	Power Connector	1 x Phoenix Jack
LCD Display	Backlight Life (hrs)	50,000
	Display Size	15"
	Luminance (cd/m2)	350
	Max. Resolution	1024 x 768
	Viewing Angle (H/V°)	160/140
Mechanical	Dimension (W x H x D)	422 x 310 x 70 mm
	Enclosure	Aluminum with hard anodizing coating, Stainless steel with ground isolation protection
	Mounting	Stand, Wall, VESA, Panel
	Weight (Net)	7.73 kg (17.04 lb)
Touchscreen	Touch Type	5-wire resistive

Reference FPM-3151G-R3BE

In stock 43 Items

Download

FPM-3151G_DS(111424)20241118104130.pdf
