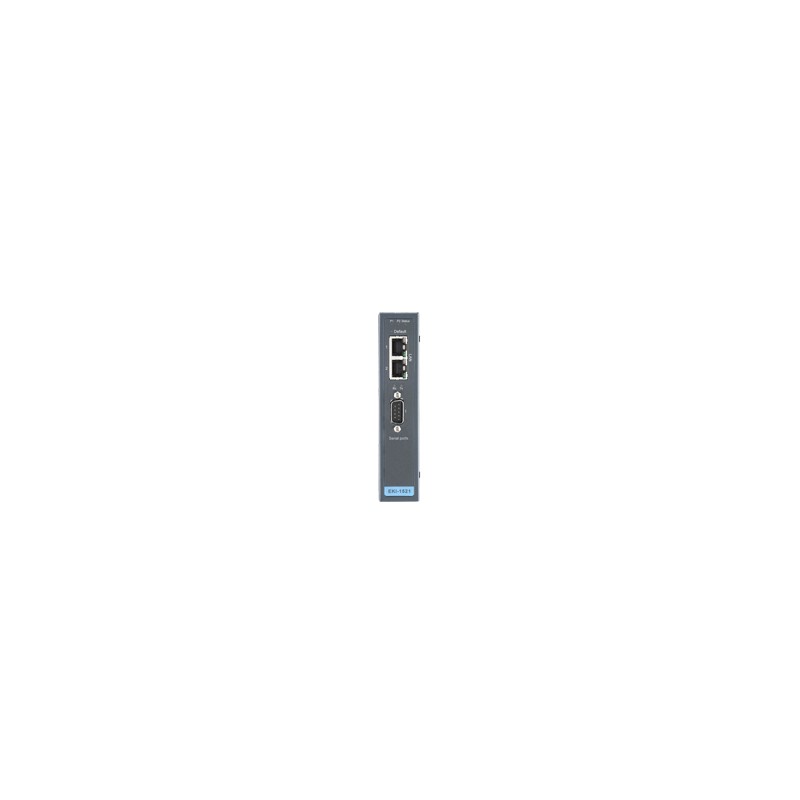

Advantech EKI-1521I-CE

316 €

Tax excluded (incl. VAT: 383 €, 21%) In stock

1-Port Serial Device Server, Wide Temperature

Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy.
Provides COM port redirection (Virtual COM), TCP and UDP operation modes.
Supports up to 921.6 kbps, and any baud rate setting.
Allows a max. of 5 hosts to access one serial port.
Allows a max. of 16 hosts to be accessed as TCP client mode.
Built-in 15 KV ESD protection for all serial signals.
Automatic RS-485 data flow control.
Supports line to line 2 KV, line to ground 4 KV surge protection.
"I" models support a wide operating temperature.
"CI" models support isolation and a wide operating temperature.

Technical Documentation:

EKI-152x_CI_I_DS(012924)20240131110909.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Certification	EMC	CE, FCC
	EMI	EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
	EMS	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
	Freefall	IEC 60068-2-32
	Safety	UL 60950-1, UL 62368
	Shock	IEC 60068-2-27
	Vibration	IEC 60068-2-6
Ethernet Communication	RJ-45 Port Connector Type	RJ-45
Serial Communication	Serial Port Connector Type	DB9 male
Environment	Operating Temperature	-40 ~ 80°C
	Storage Temperature	-40 ~ 85°C
Ethernet Communication	Ethernet Standard	IEEE 802.3 , 802.3u
	RJ-45 Port Number	2
	RJ-45 Transmission Speed	10/100 Mbps
Serial Communication	Serial Port Number	1
Mechanism	Dimensions (W x H x D)	30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
	Enclosure (Metal)	Metal with solid mounting hardware
	IP Rating	IP30
	Mounting (DIN-rail)	Yes
	Mounting (Wall)	Yes
	Weight	432 g
Power	Power Consumption	3.2W
	Power Input (DC)	12 ~ 48 VDC
	Redundant Dual Inputs	Yes
Serial Communication	RS-232	Yes
	RS-422	Yes
	RS-485	Yes
	Baud Rate	50 ~ 921.6 Kbps
Protection	Port to Port Isolation	-
Serial Communication	Serial Transmission Speed	50 ~ 921.6 Kbps
Software	Configuration	Windows utility, Telnet console, Web Browser
	Driver	Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
	Operation Mode	COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection
Warranty	Warranty Period	5 years

Reference EKI-1521I-CE

In stock 2 Items

Data sheet

Temperature (Operating Range): -40 ~ 75°C

Download

EKI-152x_CI_I_DS(012924)20240131110909.pdf
