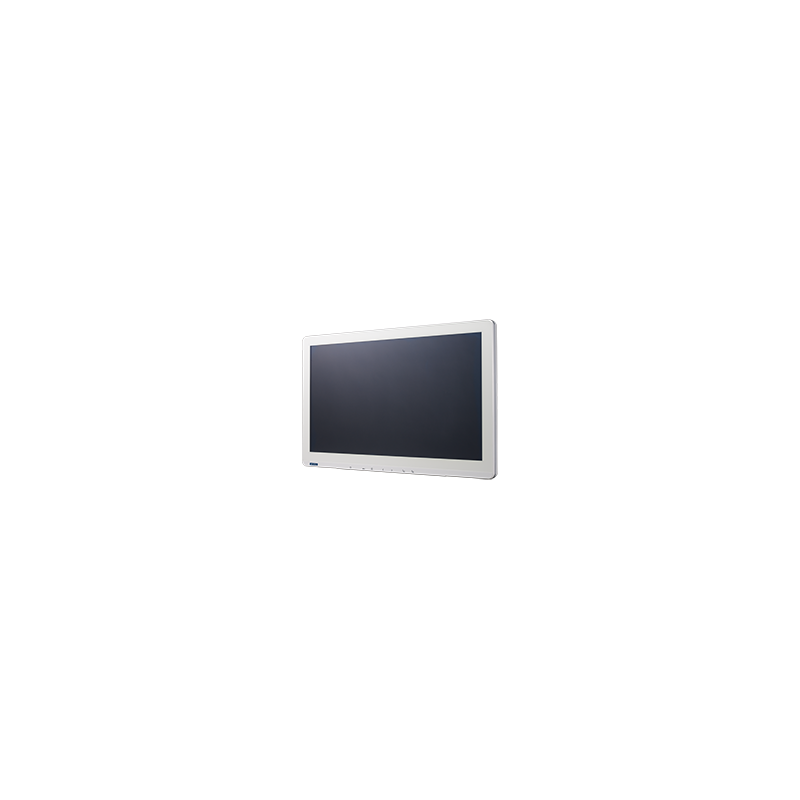

Advantech PAX-327-C2B-HAS
search
  • Advantech PAX-327-C2B-HAS

Advantech PAX-327-C2B-HAS

€3,485
In stock

27"/ FHD/ 900nits/ Non-TS

  • 27” true-flat monitor with AR filter.
  • High-brightness display with a high contrast ratio.
  • FHD resolution (1920 x 1200)/UHD resolution (3840 x 2160).
  • DVI and RGB support resolutions of up to 1920 x 1200 @ 60 Hz.
  • HDMI 2.0, DP 1.2, and SDI support resolutions of up to 3840 x 2160 @ 60Hz.
  • Multi-standard (NTSC, PAL, SECAM) video input receiver.
  • Operating temperature 0 ~ 40 °C/32 ~ 104 °F; storage temperature -20 ~ 60 °C/-4 ~ 140 °F.
  • Video enhancement features●14-bit LUT processing●DICOM Part 14 GSDF compliant●DICOM, clear, blue modes supported.
  • Optional touch panel.
  • Optional upgrade to an IP-based monitor with AVAS.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech PAX-327-C2B-HAS


Designed to deliver medical images of optimal quality, the PAX-327 monitor supports Full HD and UHD resolution. Featuring the Rec. 709 Color Space, true RGB and DICOM Part 14 GSDF compliance, 14-bit LUT processing grayscale, hardware calibration support, and automatic input source detection, PAX-327 ensures precise representation of grayscale images.
LCDScreen Size27" (597.89 x 336.31 mm)
Resolution1920 x 1080
Aspect Ratio16:9
Pixel Pitch0.3114 x 0.3114 mm
Viewing Angle178°/ 178°
Contrast Ratio (Typ.)1000 : 1
Native Luminance (Typ.)900 cd/m2, 300 cd/m2
Color Depth8-bit 16.7M Colors / 10-bit 1.07B Colors
Display ModeAHVA
Response Time14ms (Tr + Tf)
TouchscreenOptional 10-point PCAP
InputDP 1.2 Input DP Jack x 1DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
HDMI 2.0 Input HDMI Jack x 1 (Type A)Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
DVI Input DVI Jack x 1 (Type D)-
DVI Input DVI Jack x 2 (Type D)Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
SDI1 Input BNC Jack x 1Serial Input Common Mode: 2.2 Vp-p (75 Ω)/4K 3G SDI x 4 or 4K 12G SDI x 1
S-Video Input Mini DIN Jack x 1 (4-pin)Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM]
Video Input BNC Jack x 11 Vp-p (75 Ω) [NTSC / PAL / SECAM]
USB Up USB-B Jack x 1For Optional Touchscreen
RS-232C D-Sub Jack x 1Service Port
DC Power Input DC Jack x 1DC 24V, 6.25 A
Optional InputRGB Input/Audio InputD-sub x 1/Audio Jack x 1
AVAS NDcoder-
SDI2 Input / BNC Jack x 1by request only
OutputDP 1.2 Output/DP Jack x 1-
HDMI 2.0 Output/HDMI Jack x 1 (Type A)-
DVI Output/DVI Jack x 1 (Type D)-
DVI Output/DVI Jack x 2 (Type D)Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max
SD/1 Output BNC Jack x 1Serial Input Common Mode: 2.2 Vp-p(75Ω); 1920 x 1080 @ 60 Hz max.
SDI Output/BNC Jack x 4 or/BNC Jack x 1-
S-Video Output Mini DIN Jack x 1 (4-pin)Y: 1 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω) [NTSC]/Y: 1 Vp-p (75 Ω), C: 0.300 Vp-p (75 Ω) [PAL / SECAM]
Video Output BNC Jack x 11 Vp-p (75 Ω) [NTSC / PAL / SECAM]
DC Power Output DC Jack x 1DC 5 V or DC 12 V
Optional OutputAudio OutputAudio Jack x 1
SDI2 Output / BNC Jack x 1by request only
EnvironmentTemperatureOperational: 0~40° C / Storage: -20~60° C
HumidityOperation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90%
PressureOperational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa
PowerRatingDC 24 V, 6.25 A max.
Consumption80W max.
Physical CharacteristicsIP RatingsFront IP65 / Top IPX1
VESA Mount100 x 100; 75 x 75
Dimensions (W x D x H)663.83 x 73.55 x 418.11 mm
Weight~10 kg
Certifications-CE, MDD
Warranty-3 years
Accessories-Power Adapter
Advantech
PAX-327-C2B-HAS
7 Items

Download

PAX-327_DS(030322)20220314155735.pdf

PAX-327_DS(030322)20220314155735.pdf
