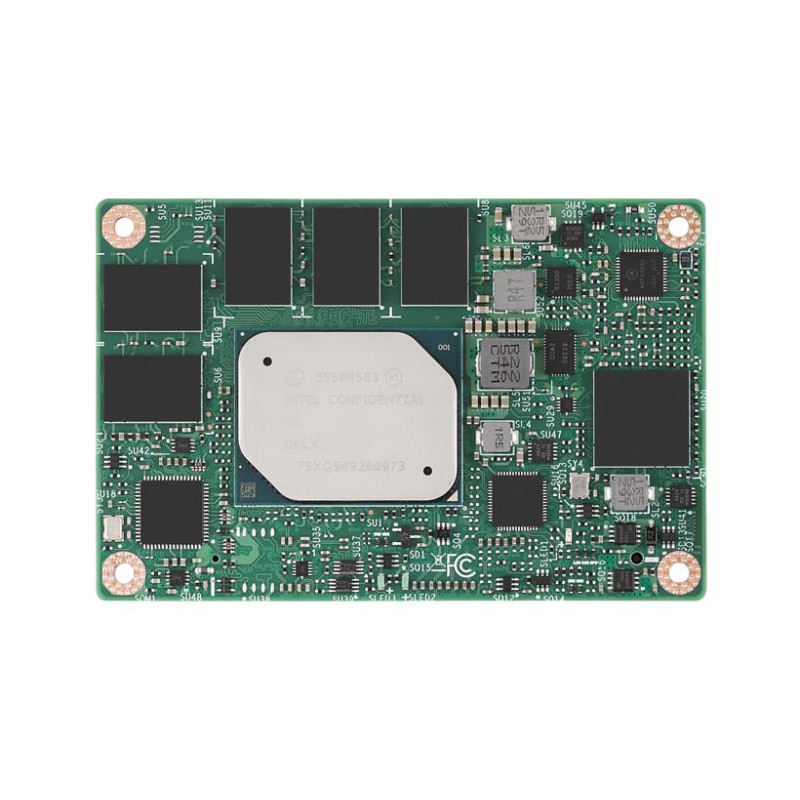

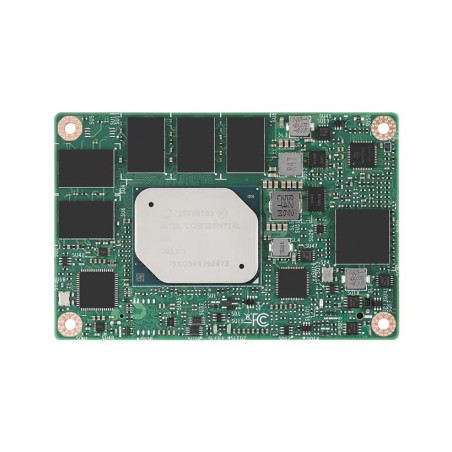

Advantech SOM-7569BNBCC-S2B1

€416
Tax excluded In stock

N4200/F1, 1.1GHz, 4C6W, COMe mini 4G/nE

  • COM R.2.1 Type 10 Mini Module.
  • Intel® Atom™ E3900 & Pentium® / Celeron® Processor.
  • Max 8GB DDR3L onboard memory (support ECC, E3900 SKU only).
  • Dual Display: LVDS, HDMI/DisplayPort.
  • onboard eMMC(default 32GB), TPM2.0.
  • Supports H.264/AVC, H.265/HEVC, VP9, VP8 HW DECODE.
  • Supports Wide-range operating temp./Wide range power input 4.75 ~ 20 V.
  • iManager and Embedded Software APIs.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech SOM-7569BNBCC-S2B1


Intel® Atom™ E3900 & Pentium® / Celeron® Processor COM-Express Mini Module
Form FactorForm FactorCOM Express Mini R2.1
Pin-out TypeType 10
ProcessorCPUPentium N4200
CPU TDP6W
Base Frequency1.1GHz
Core Number4
L2 Cache2MB
DisplayControllerIntel® HD Graphics 505
MemoryMax. Capacity4GB
TechnologySingle channel, DDR3L up to 1866(non-ECC), up to 1600(ECC)
ECC SupportN/A
StorageeMMC32GB
DisplayLCD (TTL/LVDS/eDP)LVDS: Single channel 18-bit LVDS up to WXGA 1366 x 768
Multiple DisplayLVDS, HDMI/DP
ExpansionPCI Express x 14 PCIe x1 (optional for 1 PCIe x4)
ProcessorBIOSAMI UEFI BIOS at 64 Mb
ExpansionPCI Express x 4option
EthernetControllerIntel® i210IT/i210AT
Speed10/100/1000Mbps
I/OUSB2.02 USB 3.0 / 8 USB 2.0
PowerPower TypeATX: Vin, VSB; AT: Vin
Power Supply VoltageVin: 4.75-20V, VSB: 4.75-5.25V
EnvironmentOperational Temperature0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)
PhysicalDimension (mm)84 x 55mm(3.3" x 2.17")
Advantech
SOM-7569BNBCC-S2B1
2 Items

Download

SOM-7569_DS(123120)20201231183545.pdf

SOM-7569_DS(123120)20201231183545.pdf
