  • Advantech EKI-2528DI-AE

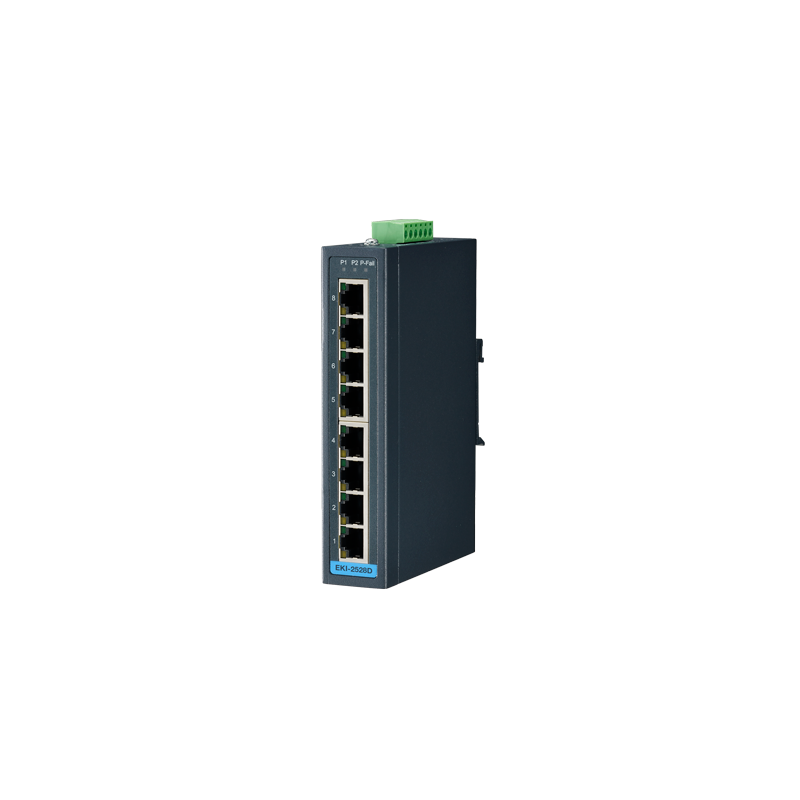

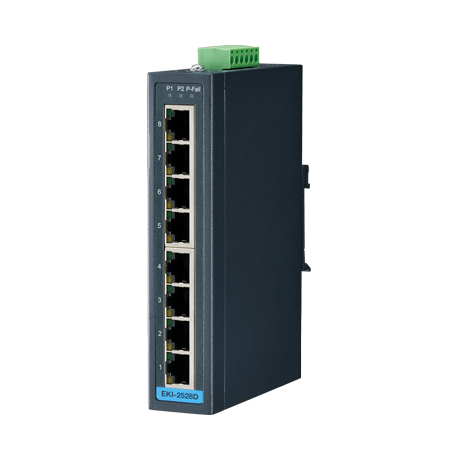

Advantech EKI-2528DI-AE

€121
Tax excluded In stock

8 10/100Mbps Unmanaged Ethernet Switch, -40~75℃

  • Provides 8-port Fast Ethernet ports with Auto MDI/MDI-X.
  • Supports 10/100 Mbps Auto-Negotiation.
  • Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism.
  • Supports redundant 12 ~ 48 VDC power input and P-Fail relay.
  • EKI-2528DI supports wide operating temperatures from -40 to 75°C.
  • DNV certificate.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-2528DI-AE


The EKI-2528D/DI is DNV certificate product supports 8-port Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2528D/DI has 2 LED’s to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2528D/DI comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
GeneralEthernet Port Count8
MountingDIN, Panel
Power12-48VDC
TechnologyEthernet
Temperature-40 to 75C
UnmanagedYes
CertificationEMIFCC Part 15 Subpart B Class A, EN 55022 Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
SafetyDNVGL
EnvironmentTemperature (Min. Operating)-40°C
Temperature (Max. Operating)75°C
Temperature (Operating Range)-40 ~ 75°C
Temperature (Storage Range)-40 ~ 85°C
Ethernet CommunicationFiber Port Number-
Fiber Port Interface-
Fiber Port Connector Type-
Fiber Transmission Distance-
Fiber Transmission Speed-
RJ-45 Port Number8
RJ-45 Port Connector TypeRJ-45
RJ-45 Transmission Distance100 m
RJ-45 Transmission Speed10/100 Mbps
MechanismMounting (DIN-rail)Yes
Mounting (Stack)-
Mounting (Panel)-
Mounting (Wall)Yes
Mounting (Rack Mount)-
Mounting (Pole Mount)-
Dimensions (W x H x D)30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Enclosure (Plastic)-
IP RatingIP30
PoE InformationPoE Port Number-
PoE Budget-
PoE Output-
Support PoENo
PowerPower Connector Type6-pin removable screw terminal
Power Consumption3.93W
Power Input (AC)-
Power Input (DC)12 ~ 48 VDC, Marine 24VDC
Power Input (PoE)-
Power Input (Battery)-
Redundant Dual InputsYes
WarrantyWarranty Period5 years
Protection Overload CurrentPresent
Reverse PolarityPresent
Advantech
EKI-2528DI-AE
16 Items

Data sheet

Temperature (Operating Range)
-40 ~ 75°C

Download

EKI-2528D_DI_DS(12.19.17)20171219160651.pdf

EKI-2528D_DI_DS(12.19.17)20171219160651.pdf
