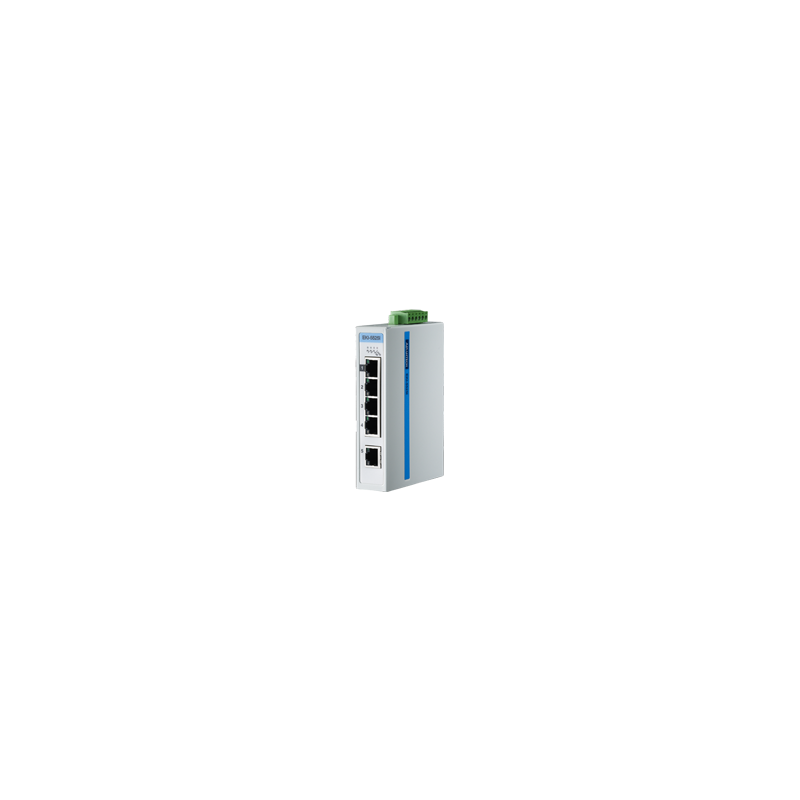

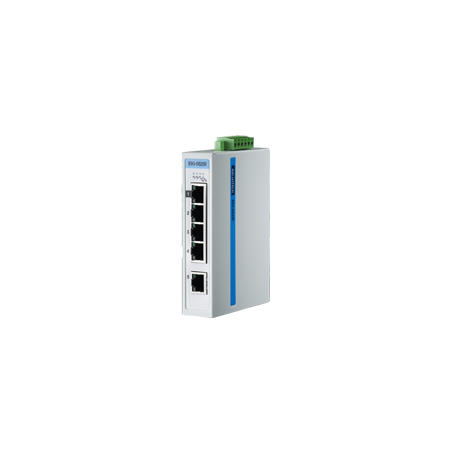

Advantech EKI-5525I-AE

Name: Advantech EKI-5525I-AE
Brand: Advantech
SKU: EKI-5525I-AE
Price: 140 EUR
Availability: InStock

€140

Tax excluded In stock

5 10/100Mbps Unmanaged Ethernet Switch, ATEX/C1D2, -40~75℃

Communicates with SCADA software via Modbus/TCP.
Communicates with NMS (Networking management system) via SNMP.
Port-based QoS for deterministic data transmission.
40~75°C operating temperature range.
8.4~52.8 V DC wide-range power input.
EMS level 3 protection for extreme outdoor environments.
IEEE 802.3az Energy Efficient Ethernet (EEE).
Supports redundant 12~48V DC power input and P-Fail relay.
Loop detection.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-5525I-AE

The EKI-5525/I and EKI-5528/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay
the less immediately necessary data over the remaining ports. EKI-5525/I and EKI-5528/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with Level 3 EMS protection to repel electromagnetic interface for industrial resistance.

General	Ethernet Port Count	5
	Mounting	DIN, Panel
	Power	12-48VDC
	Technology	Ethernet
	Temperature	-40 to 75C
	Unmanaged	Yes
* Port Configuration	Description	5 x 10/100 RJ45
	Total Port Number	5
Certification	EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
	EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Safety	IEC/EN 60950, UL60950, UL508, Class 1 Division 2, ATEX x
Environment	Temperature (Min. Operating)	-40°C (-40°F)x
	Temperature (Max. Operating)	75°C (167°F)x
	Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F) x
	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Ethernet Communication	Fiber Port Number	-
	Fiber Port Interface x	-
	Fiber Port Connector Type	-
	Fiber Transmission Distance	-
	Fiber Transmission Speed	-
	RJ-45 Port Number	5
	RJ-45 Port Connector Type !	RJ-45
	RJ-45 Transmission Distance	100 m
	RJ-45 Transmission Speed	10/100 Mbps
Mechanism	Mounting (DIN-rail)	Yes
	Mounting (Stack)	-
	Mounting (Panel)	-
	Mounting (Wall)	Yes
	Mounting (Rack Mount)	-
	Mounting (Pole Mount)	-
	Dimensions (W x H x D)	27 x 120 x 84 mm
	Enclosure (Plastic)	-
	IP Rating	IP30
	Weight	0.4 kg x
PoE Information	PoE Port Number	-
	PoE Budget	-
	PoE Output	-
	Support PoE	No
Power	Power Connector Type	6-pin removable screw terminal (power & relay)x
	Power Consumption	Max. 2W
	Power Input (AC)	-
	Power Input (DC)	12 ~ 48 VDC
	Power Input (PoE)	-
	Power Input (Battery)	-
	Power Operating Current	0.06A @ 24V
	Redundant Dual Inputs	Yes
Switch Properties	Jumbo Frame	9,216 bytes
	MAC Table Size	2K
	Packet Buffer Size	1M bit
	Switch Fabric Speed	1.0Gbps
Warranty	Warranty Period	5 years
Protection	Overload Current	Present
	Reverse Polarity	Present

Brand Advantech

Reference EKI-5525I-AE

In stock 23 Items

Data sheet

Ports Number: 5
Temperature (Operating Range): -40 ~ 75°C
Switch Fabric Speed: 1.0Gbps

Download

EKI-5528I20150714145225.pdf
