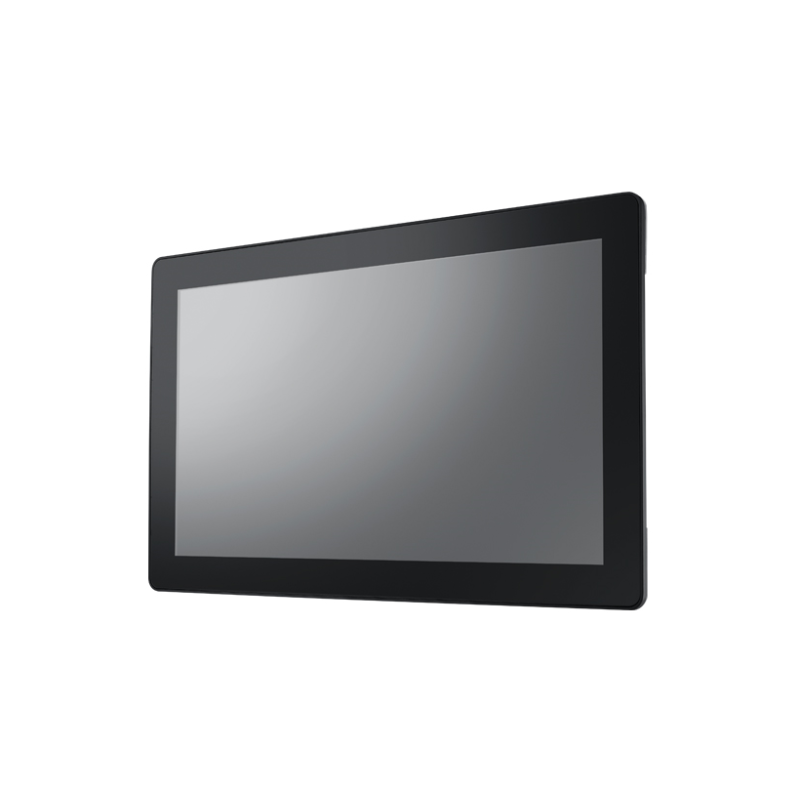

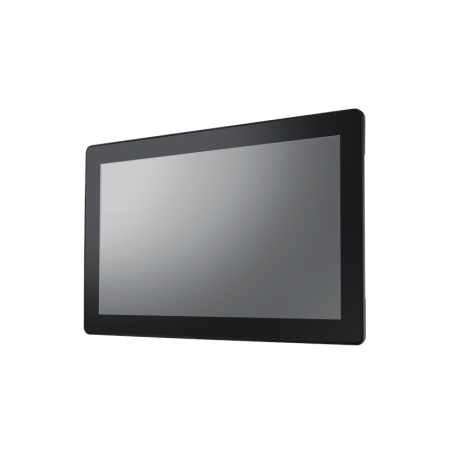

Advantech UTC-115HP-WEF1F

1 802 €

Tax excluded (incl. VAT: 2 181 €, 21%)

15.6", Pcap, FHD 1920x1080, i3-8145UE CPU, 8G RAM, 128G SSD, Win 10 IOT, Wifi/BT, Silver Color, Power Cord

Slimmer and Lighter design.
Low power and fanless system design.
Built-in Intel® Core™ i5-8365UE.
15.6" monitor with 16:9 widescreen display.
IP65-rated front panel for water and dust resistance.
Clean back cover design with 3 Way IO cable routing.
Supports both landscape and portrait screen orientations.
VESA 100 mm standard mounting holes for varied mounting demands.
Support DeviceOn/iService software for remote device management.

Technical Documentation:

UTC-115H_DS(122123)20231221152307.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

UTC-115 features an all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.

Color	Color	Silver
Display	Size	15.6" TFT LCD
	Max. Resolution	FHD (1920 x 1080)
	Brightness	400 cd/m²
	Pixel Pitch (um)	179(H) x 179(V)
	View Angle	170°/170°
Touch Screen	Type	Projected Capacitive
Processor System	CPU	Intel® Core™ i3-8145UE
	RAM	8G DDR4
	Storage	128G SSD
	OS	Windows 10 IoT Enterprise 64bit
I/O Interface	Serial Port	2 x COM (RS-232)
	USB Port	4 x USB3.0
	Output	1 x HDMI 1.4
	Audio	1 x Audio Phone Jack
	Ethernet	2 x Gigabit Ethernet ports
	Speaker	2 x 2W Speaker
	Extendable Slot	1 x M.2 key2230, 1 x M.2 key2242
Peripheral	Bluetooth	Bluetooth® v4.1
	WLAN	IEEE 802.11a/b/g/n/ac
Environment	Operating Temperature	0 ~ 35 °C *
	Operating Humidity	10 ~ 95% @ 40°C non-condensing
	Vibration	0.5G
	Shock	10G peak acceleration (11 msec. duration)
	System Protection	IP65 front panel
Power	Input Rating	12 V/5 A~24 V/2.5 A (60W ITE Adapter)
	PoE	N/A

Reference UTC-115HP-WEF1F

Download

UTC-115H_DS(122123)20231221152307.pdf
