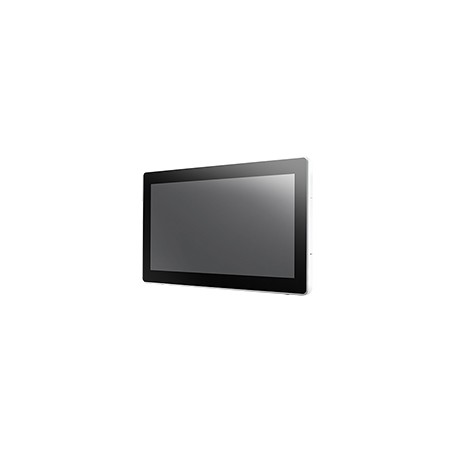

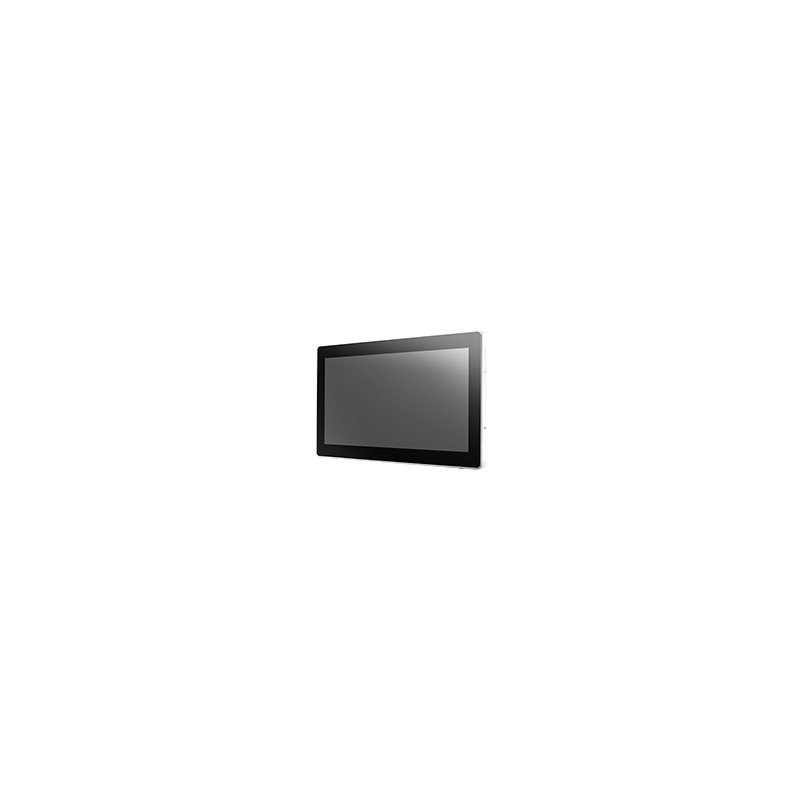

Advantech UTC-315FP-ATB0E

2 083 €

Tax excluded (incl. VAT: 2 521 €, 21%)

15.6" Black, Intel® Core™ i5-6300U, PCap T/S 4GB RAM, IT Adapter

Low power and fanless system design.
Built-in Intel Core™ i5-6300U processor.
15.6" monitor with 16:9 widescreen display.
IP65-rated front panel for water and dust resistance.
Supports both landscape and portrait screen orientations.
VESA 75 mm standard mounting holes for varied mounting demands.
Detachable frame design for panel mount applications.
Support DeviceOn/iService software for remote device management.
Support TPM 2.0.

Technical Documentation:

UTC-315FHI_DS(070623)20230712095916.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

UTC-315F is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. With the removable frame, the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Color	Color	Black
Display	Size	15.6" TFT LCD
	Max. Resolution	HD (1366 x 768) ; Optional FHD (1920 x 1080)
	Brightness	220 cd/m²
Touch Screen	Type	Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel
Processor System	CPU	Intel® Core™ i5-6300U
	Storage	1 x 2.5 internal SATA HDD bay
	RAM	4GB DDR3L
I/O Interface	Serial Port	1 x COM (RS-232) ; 1 x COM (RS-232/422/485)
	USB Port	2 x USB2.0, 1 x OTG USB / 4 x USB2.0, 1 x OTG USB
	Ethernet	2 x Gigabit Ethernet (RJ-45)
	Output	1 x HDMI
	Cash Drawer	1 x RJ11
	Audio	1 x Line-out, 1 x Mic-in
	Extendable Slot	Full-size MiniPCIe/mSATA
Environment	Operating Temperature	0~40° C
	Operating Humidity	10 ~ 95% @ 40°C non-condensing
Power	Input Rating	12-30V/7A (84W ITE Adapter)
OS Support	OS Support	Win 10 IoT Enterprise 64bit/ Linux

Reference UTC-315FP-ATB0E

Download

UTC-315FHI_DS(070623)20230712095916.pdf
