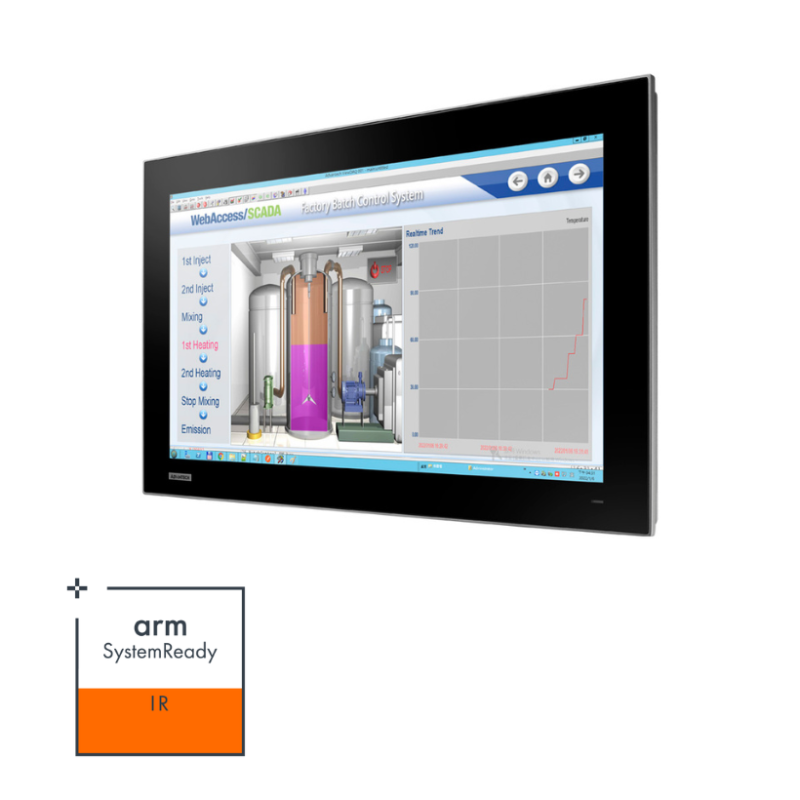

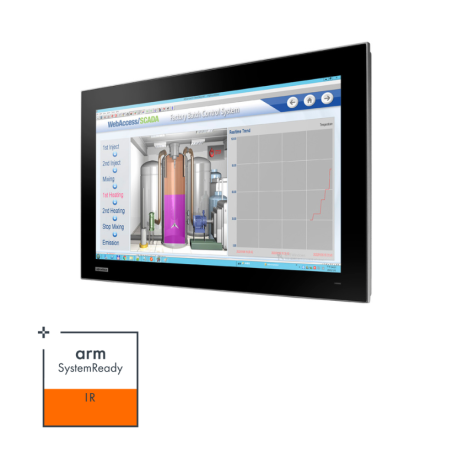

Advantech TPC-121W-N32YB

1 202 €

Tax excluded (incl. VAT: 1 455 €, 21%) In stock

21.5"FHD,i.MX8M Mini Quad,4GB RAM,w/CAN,Yocto

arm SystemReady IR certified.
NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor.
16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel.
Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard.
1 mb FRAM backup memory for unexpected power interruptions.
2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec.
Embedded browser and for rapid Web App development.
Supports Linux Yocto and Android.
Compatible with VESA and panel mounting.

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Description
Product Details

TPC-121W is equipped with an NXP® Cortex™-A53 i.MX 8M Mini quad-core processor. For web-based operations, TPC-121W offers two 10/100/1000 LANs that support the IEEE 802.3 at PoE-PD standard. The inclusion of VNC and browsers enable rapid Web application development and easy configuration.

LCD Display	Display Size	21.5"
Touchscreen	Touch Type	PCAP
LCD Display	Max. Resolution	1920 x 1080
	Luminance (cd/m2)	250
	Backlight Life (hrs)	50,000
Hardware	CPU	NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core
	Memory	1 x LPDDR4 with 4 GB
	Storage	1 x eMMC (16 GB), 1 x micro SD Slot
	OS Support	Linux Yocto
	Power Input	24 VDC ±20%
	Certification	CB, UL, CE, FCC Class A, CCC, BSMI
	Expansion	1 x M.2 E Key 2230
General	Rated Voltage	24 VDC (±20%)
I/O Interface	Serial Ports	1 x RS-232, 1 x RS-232/422/485
	LAN Ports	2 x 10/100/1000 Mbps
	USB Ports	2 x USB 2.0
Mechanical	Weight (Net)	6.1 kg (13.45 lb)
Environment	Ingress Protection	Front Panel IP66
Mechanical	Enclosure	Die cast magnesium alloy, Die-casting aluminum
Environment	Operating Temperature	-20~60 °C
	Storage Temperature	-30~70 °C
	Vibration Protection	2 Grms, random
Mechanical	Mounting	VESA, Panel
Environment	Relative Humidity	95% RH (non-condensing)
	Shock Protection	10 G, half sine
	Isolation Protection	Chassis grounding protection

Reference TPC-121W-N32YB

In stock 52 Items

Data sheet

Temperature (Operating Range): -20~60 °C
