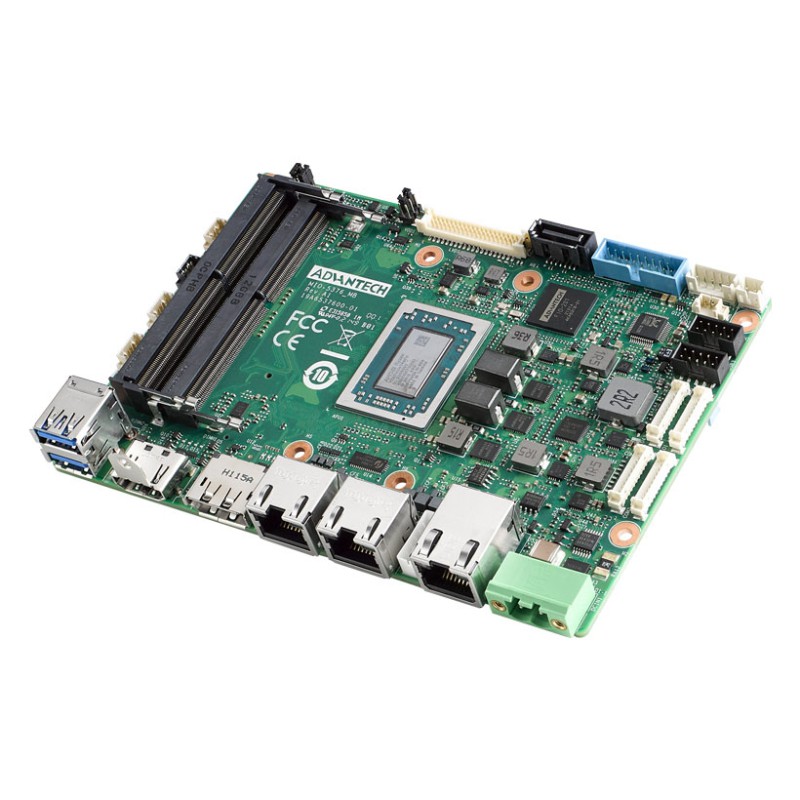

Advantech MIO-5376R-P5A1

676 €

Tax excluded (incl. VAT: 818 €, 21%) In stock

MIO-5376 A101 AMD R2314 cTDP 15W Fanless

AMD Ryzen Embedded R2000 Processor with Quad Cores, TDP 15W/ 28W.
Dual Channel DDR4-2667 up to 32GB.
3 simultaneous displays: LVDS/HDMI/DP.
3 GbE, support optional PoE PSE Dual port 15.4W (Module: MIOe-PSE) .
Expansion: M.2 E-Key/B-Key/M-Key (supports NVMe).
Supports iManager & Software APIs, WISE-DeviceOn.

Technical Documentation:

MIO-5376_DS(051223)20230512093806.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

AMD Ryzen™ Embedded R2000 Series 3.5" SBC

Processor	CPU	AMD RyzenTM Embedded R2314 SoC with AMD Radeon™ Graphics
	Max Turbo Frequency	3.5GHz
	Frequency	2.1 GHz
	Core Number	4
	Thread	4
	CPU TDP	12 W / 15 W/ 25 W
	Chipset	AMD RyzenTM Embedded R2000 processor
	BIOS	AMI EFI 256 Mbit
Memory	Technology	DDR4 2666MHz
	Max. Capacity	32GB (16GB per SO-DIMM)
	Channel/ Socket	Dual Channels / 2 Sockets
	ECC Support	No
Graphics	Controller	Integrated AMD Radeon Graphics
Display	LCD (TTL/LVDS/eDP)	LVDS Dual Channel 18/24-bit LVDS , up to 1920 x 1200@60H
	HDMI	Support HDMI 2.0，up to 3840 x 2160 @ 60Hz
	DP/HDMI	Support DP1.4a, up to 4096x2304@60Hz, 36bpp
	Multi-Display	3 simultaneous displays with each display interface combination
Rear I/O Interface	Ethernet	3 (RJ-45)
Ethernet	PoE	2 support optional PSE compliant to 802.3af (15.4W per port)
Rear I/O Interface	HDMI / DisplayPort*	1/1
	USB	2x USB3.2
Internal I/O	SATA	1 x SATA GenIII 6.0 Gbps
	USB	2 x USB3.2 + 2 x USB2.0
	Serial	2 x RS-232 from COM1/2, 2 x RS-232/422/485 from COM3/4 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)
	GPIO	8-bit general purpose input/output
Audio	CODEC	Realtek ALC888
Internal I/O	CAN Bus	1
Watchdog timer	Watchdog timer	65536 level, 0 ~ 65535 sec
Expansion	M.2	1x B key (2242/3042mm) + 1x E key (2230mm) + 1x M key (2280mm)
Power	Power Supply Voltage	Vin: 12-24V
	Connector	2-pin phoenix head
	Power Type	AT / ATX
Environment	Operational Temperature	0 ~ 60° C
	Storage Temperature	-40 ~ 85° C
	Humidity	Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Mechanical	Dimensions	146 x 102 mm (5.75" x 4.02")

Reference MIO-5376R-P5A1

In stock 20 Items

Download

MIO-5376_DS(051223)20230512093806.pdf
