Advantech ASR-A502-X0A1

Name: Advantech ASR-A502-X0A1
Brand: Advantech
SKU: ASR-A502-X0A1
Price: 1099 EUR
Availability: InStock

1 099 €

Tax excluded (incl. VAT: 1 330 €, 21%) In stock

ASR-A502 A101 ARL-H Core Ultra 255H QFCS

Intel® Core™ Ultra Processors, up to 96 TOPS, TDP 28W.
Dual Channel DDR5-5600, up to 96GB.
Dedicated I/Os for AMR: 3xGbE, 7x USB (incl. 3x USB-C), 4xCOM, 2x CANFD.
4x Expansions: M.2 E-Key, B-Key, 2x M-Key (support NVMe).
Power input support 12-24V DC-in, contact: 8KV, air: 15KV, ESD protection.
Supports Ubuntu 22.04/ 24.04 LTS, Windows 11 LTSC, embedded software API SUSI, ROS2, DeviceOn.

Technical Documentation:

ASR-A502_DS(010226)20260105113523.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

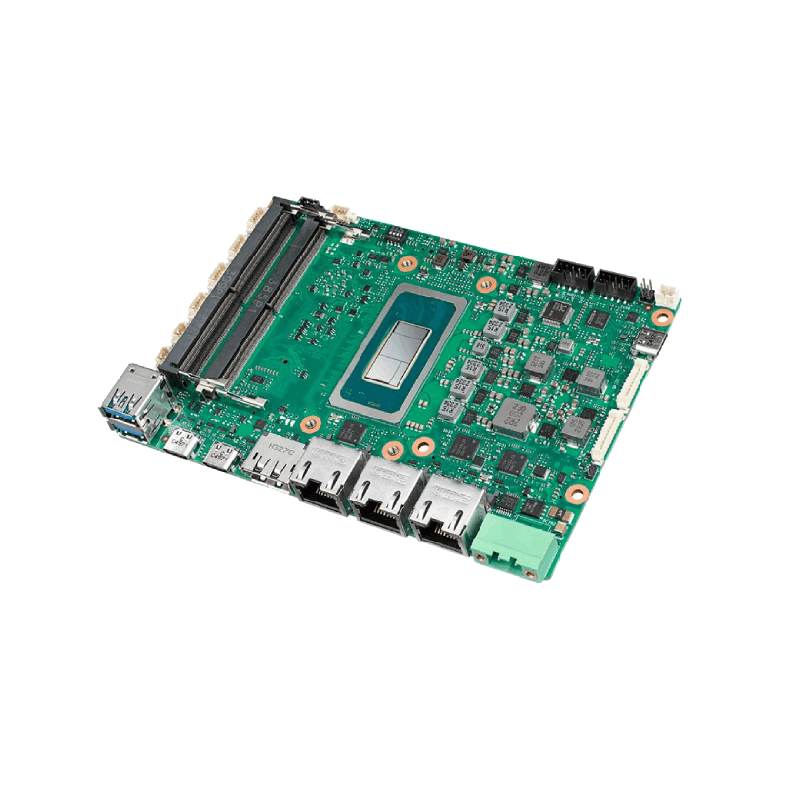

Intel® Core™ Ultra Processors (Series 2) (Code Name: Arrow Lake-H) 3.5" AMR Controller Board

Processor	CPU TDP	28W
	BIOS	AMI EFI 256 Mbit
Graphics	Max. Frequency	2.25GHz
Memory	Technology	DDR5 5600 MHz
	Max. Capacity	96GB
	Channel/ Socket	Dual Channels / 2 Sockets
Front I/O Interface	USB	4 (USB3.0)
	RJ-45	3
	HDMI	1
Power	Input Voltage	12 ~ 24 VDC
	Connector	2-pin phoenix head
Environment	Temperature (Operating)	0 ~ 60° C
	Relative Humidity	40 °C @ 95%, Non-Condensing
	Vibration Resistance	3.5 Grms
Certification	EMC	CE, FCC
Operating System	Window 11 IoT Enterprise	V
	Ubuntu	V

Reference ASR-A502-X0A1

In stock 17 Items

Download

ASR-A502_DS(010226)20260105113523.pdf
