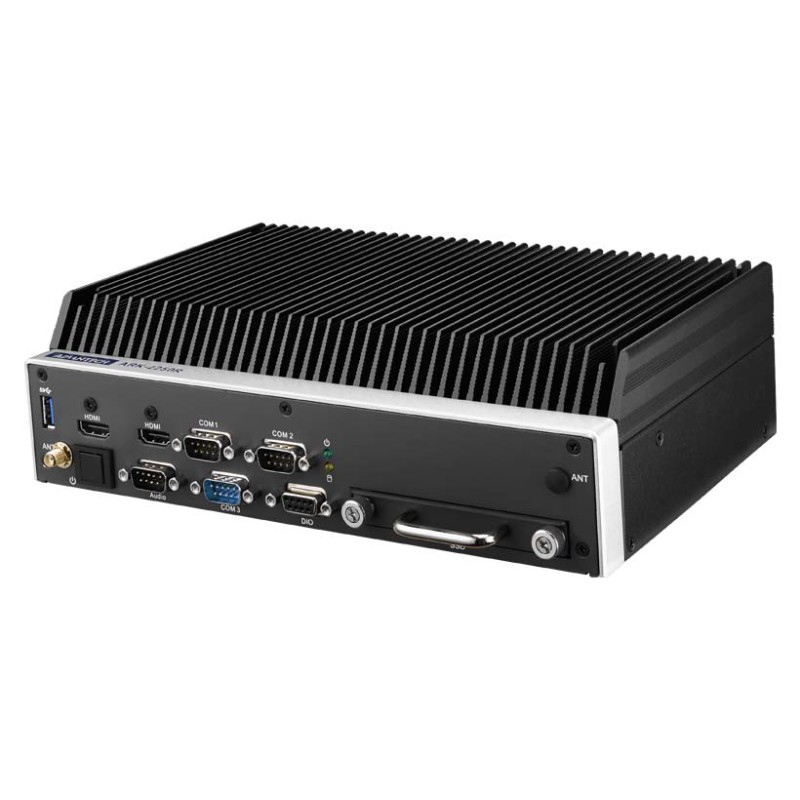

Advantech ARK-2250R-U0A1E

Name: Advantech ARK-2250R-U0A1E
Brand: Advantech
SKU: ARK-2250R-U0A1E
Price: 2040 EUR
Availability: InStock

€2,040

Tax excluded In stock

Rail PC, Core i7-6822EQ 2.0G, 2HDMI

Intel i7-6822EQ QC/ Intel i5-6442EQ QC SoC.
Stackable extension design, option extension kit for applications.
DC 24V EN50155 S2/C1 compliant, DC 48/72/110V options.
Supports redundant power input.
-40 ~ 70 °C wide temperature support with EN50155 TX compliant.
Solid connection for LAN/USB/Audio/COM and power input.
Anti-vibration/shock proof, IEC 61373 Category1, ClassB.
Built-in Advantech remote management software WISE-PaaS/RMM.
No RED Certification.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech ARK-2250R-U0A1E

6th Gen Intel Core i7-6822EQ QC/i5-6442EQ QC Rolling Stock Fanless System

Processor	CPU	Intel i7-6822EQ QC SoC
	Core Number	4
	Frequency	2.0 GHz
	L2 Cache	8 MB
	BIOS	AMI EFI
Memory	Technology	DDR4 2133MHz
	Max. Capacity	32 GB
	Socket	2 x 260-pin SO-DIMM
Graphics	Chipset	QM170
	Graphic Engine	DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265
	VGA	Up to 1920 x 1200 at 60 Hz
	HDMI	HDMI 1.4a for HD video playback, 1080P at 60Hz
	Dual Display	VGA + HDMI (Std.) or Dual HDMI (by project)
Ethernet	LAN1	10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
	LAN2	10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
Audio	Interface	Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in
I/O	Serial port	3 x RS-232/422/485 port with auto flow control
	USB	2x USB2.0 A-Coded, 1x USB3.0 Type A
	GPIO	8-bit Programmable DIO
	CANBus	Optional
Other	Watchdog Timer	255 levels timer interval, setup by software
	TPM	TPM2.0 (Infineon SLB9665)
Expansion	Mini PCIe	#1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key
Storage	2.5" HDD/SSD	1 x 2.5" SATA drive bay
	mSATA	1 x full size mSATA socket (Mini PCIe #1)
Software Support	Microsoft Windows	Windows 10, Windows 8.1, WES7, Windows 7
	Linux	Support by project
Power	Power Type	ATX
	Input Voltage	DC 24V - StandardDC 48/72/110V - Options
Power Requirement	Vehicle Power Ignition	Selectable boot-up & shut-down voltage, on/off delay time
Power	Power Requirement	Regulation: EN50155 S2/C1 Compliant
	Power Consumption	Typical 22 W, Max. 55 W
Mechanical	Construction	Aluminum housing
	Mounting	Wall mounting kit
	Dimensions	260 x 73 x 160.2mm
	Weight	3.2 Kg
Environment	Operational Temperature	With extended temperature peripherals: -40 ~ 70 °C EN50155 TX
	Storage Temperature	-40 ~ 85° C (-40 ~ 185° F)
	Relative Humidity	95% @ 40° C (non-condensing)
	Vibration during Operation	IEC61373 Category1, Class B
	Shock During Operation	IEC61373 Category1, Class B
Certification	Safety Certifications	UL, CCC, BSMI, CB, EN50155
Environment	EMC	CE/FCC Class B, CCC, BSMI, EN50121-3-2, EN50121-4

Brand Advantech

Reference ARK-2250R-U0A1E

In stock 2 Items

Download

ARK-2250R_DS(120420)20201207112541.pdf
