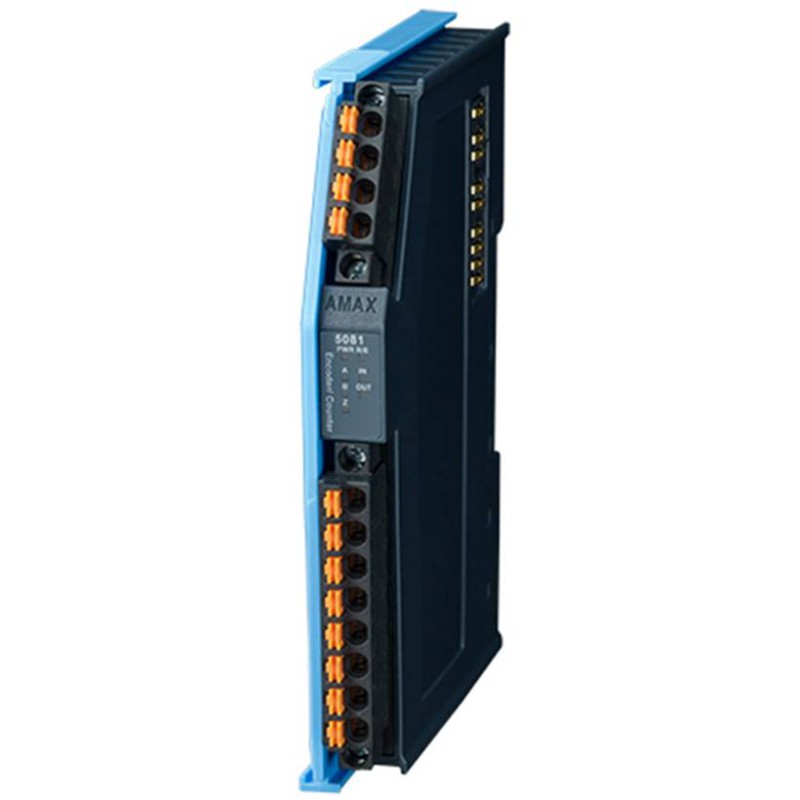

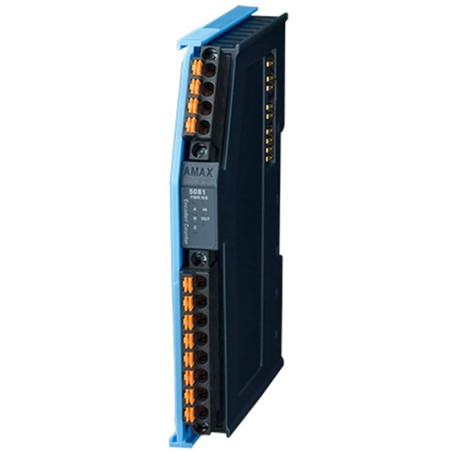

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file AMAX-5080_5081_5082_DS(122221)20220504131826.pdf
Terms and Conditions
| Counter/Encoder Input | Encoder Type | Incremental Encoder |
| Channels | 1 | |
| Counting Range | 32-bit | |
| Max. Input Frequency | 10 MHz | |
| Mode | Counter (up/down, bi-direction, up, A/B Phase), Frequency | |
| General | Connectors | 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal |
| Protocol | EtherCAT | |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Certification | CE, FCC class A |
| LED Indicators | PWR, RUN / ERROR, A+, A-, B+, B-, Z+, Z-, L+, L- | |
| Power Consumption | 3 W @ 24 VDC | |
| Environment | Isolation Voltage | 2,000 VDC |
| Operating Temperature | -25~60 °C | |
| Relative Humidity | 95% RH (non-condensing) | |
| Storage Temperature | -40~85 °C | |
| Storage Humidity | 95% RH (non-condensing) | |
| Mechanical | Enclosure | PC |
| Mounting | DIN-rail | |
| Weight (Net) | 92 g | |
| Dimension (W x H x D) | 14.6 x 105.9 x 94.7 mm |
Data sheet
