Advantech EKI-2728NI-A

Name: Advantech EKI-2728NI-A
Brand: Advantech
SKU: EKI-2728NI-A
Price: 202 EUR
Availability: InStock

202 €

Tax excluded (incl. VAT: 245 €, 21%) In stock

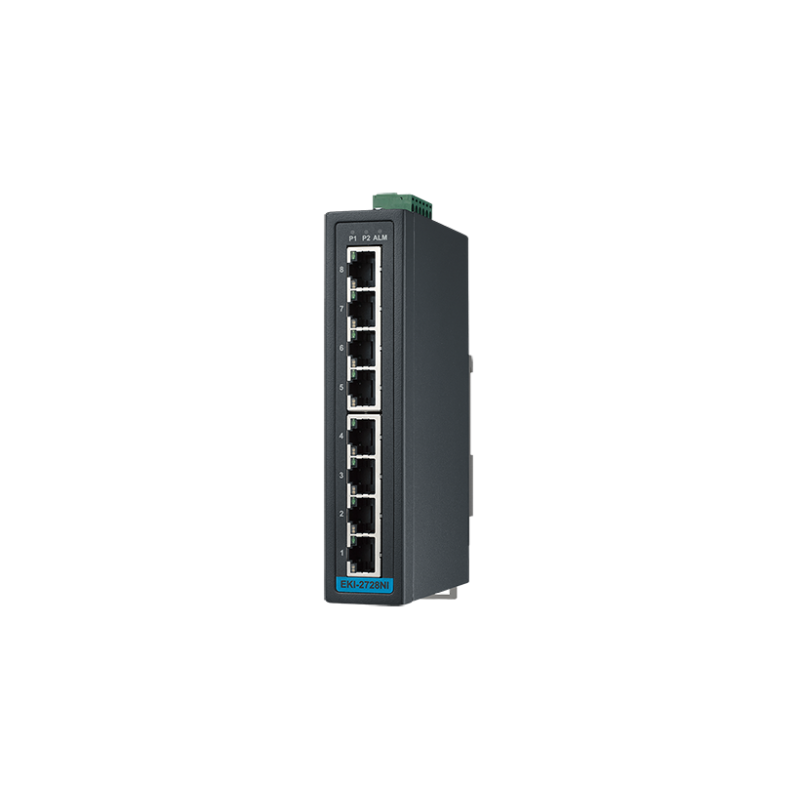

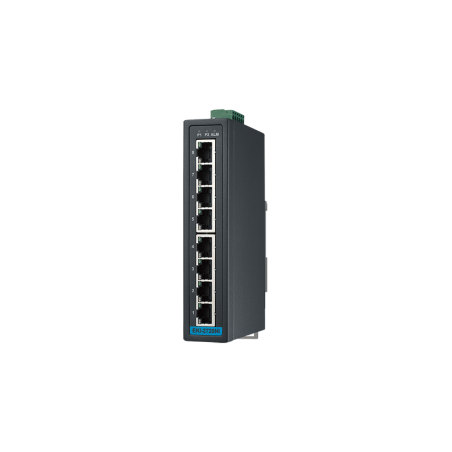

8-port Ind. Unmanaged GbE Switch W/T

Provides 8 Gigabit Ethernet ports with Auto MDI/MDI-X.
Supports 10/100/1000Mbps Auto Negotiation.
Supports jumbo frame transmission up to 9kbytes.
Provides Slim size, DIN-rail with IP30 metal mechanism.
Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay.
Supports a wide temperature range: -40 ~ 75° C.
Supports PROFINET conformance- Class A.

Technical Documentation:

EKI-2728NI-A_DS(031224)20240312172131.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The EKI-2728 supports Gigabit Ethernet, has 12~48 VDC input with reverse power protection, automatic recovery, status LEDs, relay alarms, and an IP30-rated metal housing. It prioritizes traffic on PROFINET networks with a PTCP filter.

Certification	EMI	CE, FCC Class A
	EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Safety	UL 62368
Environment	Temperature (Max. Operating)	75°C
	Storage Temperature	-40 ~ 85°C
Ethernet Communication	RJ-45 Port Number	8
	RJ-45 Port Connector Type	RJ-45
	RJ-45 Transmission Distance	100 m
	RJ-45 Transmission Speed	10/100/1000 Mbps
Mechanism	Mounting (DIN-rail)	Yes
	Mounting (Stack)	-
	Mounting (Panel)	-
	Mounting (Wall)	Yes
	Mounting (Rack Mount)	-
	Mounting (Pole Mount)	-
	Enclosure (Plastic)	-
	IP Rating	IP30
PoE Information	PoE Port Number	-
	PoE Budget	-
	PoE Output	-
	Support PoE	No
Power	Power Connector Type	6-pin removable screw terminal
	Power Input (AC)	-
	Power Input (PoE)	-
	Power Input (Battery)	-
	Redundant Dual Inputs	Yes
Warranty	Warranty Period	5 years
Protection	Overload Current	Present
	Reverse Polarity	Present
Power	Power Input (DC)	12 ~ 48 VDC
	Power Consumption	Max. 3.9W

Reference EKI-2728NI-A

In stock 10 Items

Download

EKI-2728NI-A_DS(031224)20240312172131.pdf
