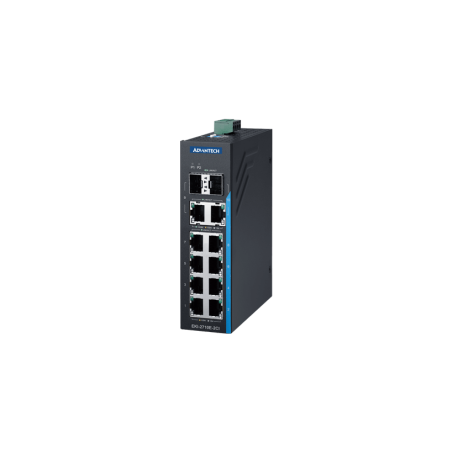

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file EKI-2710E-2CI_DS(011425)20250114104441.pdf
Terms and Conditions
| Certification | EMI | CE, FCC Class A, BSMI |
| EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) | |
| Safety | UL 62368 | |
| Environment | Temperature (Min. Operating) | -40°C |
| Temperature (Max. Operating) | 75°C | |
| Operating Temperature | -40 ~ 75°C | |
| Storage Temperature | -45 ~ 85°C | |
| Ethernet Communication | Fiber Port Number | 2 (combo) |
| Fiber Port Interface | SFP | |
| Fiber Port Connector Type | SFP cage | |
| Fiber Transmission Distance | Up to 110 km | |
| Fiber Transmission Speed | 10/100/1000 Mbps | |
| RJ-45 Port Number | 8 + 2 (combo) | |
| RJ-45 Port Connector Type | RJ-45 | |
| RJ-45 Transmission Distance | 100 m | |
| RJ-45 Transmission Speed | 10/100 Mbps | |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mounting (Stack) | - | |
| Mounting (Panel) | - | |
| Mounting (Wall) | Yes | |
| Mounting (Rack Mount) | - | |
| Mounting (Pole Mount) | - | |
| Dimensions (W x H x D) | 40 X 140 X 105 mm | |
| Enclosure (Plastic) | - | |
| IP Rating | IP30 | |
| Weight | 0.58 kg (1.3 lb) | |
| PoE Information | PoE Port Number | - |
| PoE Budget | - | |
| PoE Output | - | |
| Support PoE | No | |
| Power | Power Connector Type | 4-pin removable terminal (power) |
| Power Consumption | 5.8W | |
| Power Input (AC) | - | |
| Power Input (DC) | 12 ~ 48 VDC, redundant dual inputs | |
| Power Input (PoE) | - | |
| Power Input (Battery) | - | |
| Power Operating Current | 0.4A @ 12 V | |
| Redundant Dual Inputs | Yes | |
| Switch Properties | Jumbo Frame | 16K byets |
| MAC Table Size | 4096 | |
| Packet Buffer Size | 2M bit | |
| Switch Fabric Speed | 5.6Gbps | |
| Warranty | Warranty Period | 5 years |
| Protection | Overload Current | Present |
| Reverse Polarity | Present |
