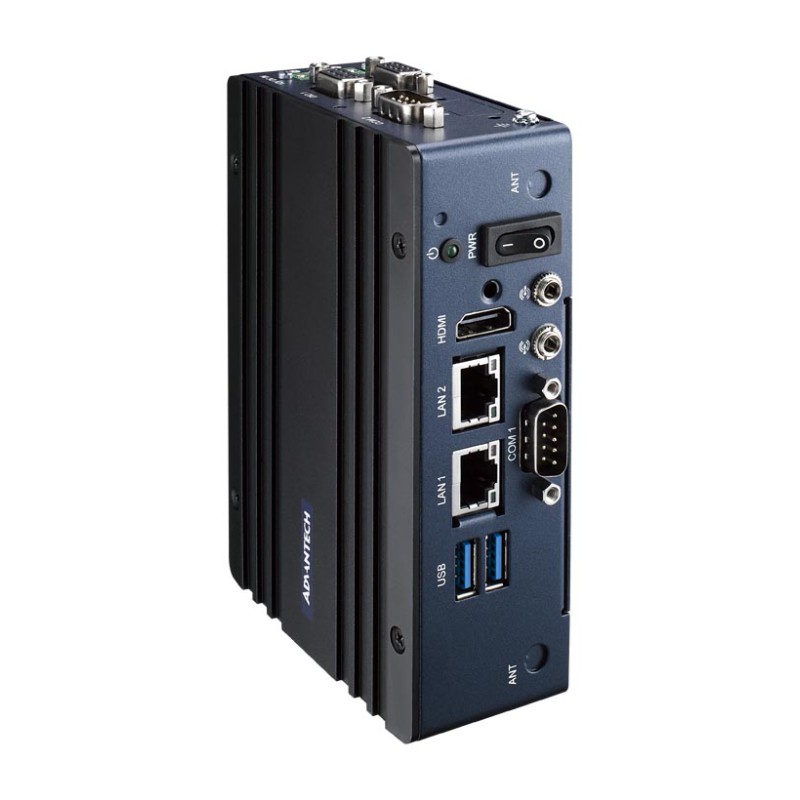

Advantech EPC-S202E-S8A1

€383
Tax excluded

Intel E3930, 12VDC, HDMI, DIO, COM, 2 L

  • Intel® Atom™ E3900 series.
  • Onboard 4GB LPDDR4-2400MT/s, 32GB eMMC.
  • Semi-Industry Fanless slim systen, Din Rail or Wall mount design.
  • Support HDMI x 1 , GbE x 2 USB 3.0 x 2, COM x 2, DIO x 2.
  • Flexible expansion M.2 E key, mSATA/mPCIe.
  • Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite.
  • *No RED certification.
Quantity
On enquiry



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EPC-S202E-S8A1


Intel® Atom™ E3900 series Embedded SBC Fanless Slim System
ProcessorCPUIntel Atom® x5-E3930 Processor
Core Number2
Frequency1.3 GHz
Max Turbo Frequency1.8 GHz
L2 Cache2 MB
BIOSAMI UEFI BIOS at 64 Mb
MemoryTechnologyOnboard LPDDR4-2400
Max. CapacityDefault 4GB, max. up to 8GB
Socket4 GB on-board memory
DisplayControllerIntel® HD Graphics 505
Graphic Engine4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG
HDMIUp to 3840 x 2160 at 30Hz
EthernetLAN10/100/1000 Mbps, Intel i210
AudioChipsetRealtek ALC888S, High Definition Audio (HD), Line-in, Line-out
ExpansionMini PCIe1 x Full size Mini-PCIe
M.21 x M.2 2230 E Key
StorageeMMC32GB
Front I/O InterfaceRJ-452
USB2 USB3.0
HDMI1
COM1 (RS232/422/485)
Antennaup to 2
AudioLine-in, Line-out
I/OCOM Port1 (RS232/422/485)
Digital I/O1 (8-bit general purpose input/ output)
MiscellaneousLED IndicatorsPower
ControlPower switch
PowerPower TypeAT
Input Voltage12 VDC
Connector Type2-Pole Phoenix DC plug in
EnvironmentOperational Temperature-20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
Non-Operational Temperature-40 ~ 85° C (-40 ~ 185° F)
Relative Humidity40 °C @ 95%, Non-Condensing
Vibration during OperationWith Desk/Wall Mount/ DIN Rail: 3 Grms, IEC 60068-2-64, random vibration, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation30G, IEC60068-2-27, half sine, 11m duration
PhysicalMountingDesk/ Wall Mount/ DIN Rail
Dimensions (W x H x D)System dimension : 139 x 100 x 44 mm
Weight0.6 kg (1.2 lb)
RegulationEMCCE/FCC Class B, CCC, BSMI, VCCI
SafetyCB, UL, CCC, BSMI
