Advantech EPC-T22853A-00Y1E
search
  • Advantech EPC-T22853A-00Y1E
  • Advantech EPC-T22853A-00Y1E
  • Advantech EPC-T22853A-00Y1E
  • Advantech EPC-T22853A-00Y1E
  • Advantech EPC-T22853A-00Y1E
  • Advantech EPC-T22853A-00Y1E
  • Advantech EPC-T22853A-00Y1E

Advantech EPC-T22853A-00Y1E

€680
Tax excluded

EPC-T2285 barebone,w/ I3-6100, w/o ADP,R

  • Lock type DC power jack.
  • Support Wall/VESA/Din Rail/Rack mounting kit.
  • One 2.5" shock-resistant drive bay.
  • Easy/ quick installation for additional peripherals.
  • Thin barebone with multi-IO ports is suitable for variety of applicationenvironments with DC-in design.
  • Thin design with 44.2mm in height.
  • CE (No RED certification) .
  • Support SUSI, WISE-DeviceOn and Edge AI Suite.
Quantity
On enquiry



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EPC-T22853A-00Y1E

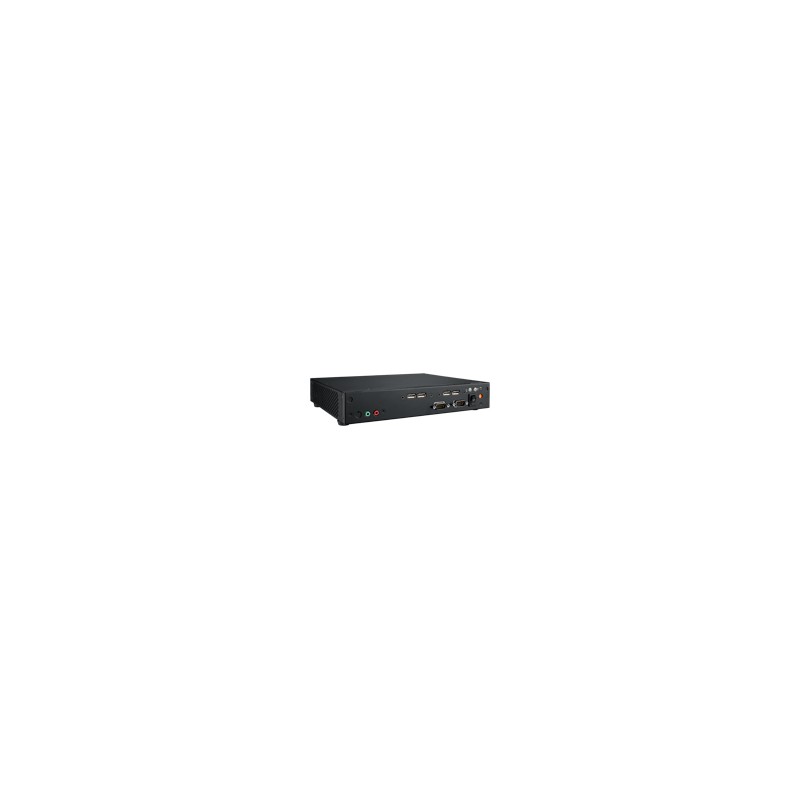

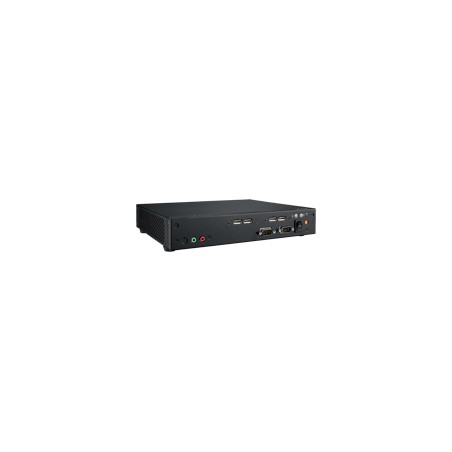

Intel® 6th/7th Generation Desktop Core™ i3/i5/i7 1U THIN embedded PC
Thermal SolutionThermal Solution2x chassis fan (4cm/23.8CFM each)
ProcessorCompatible MotherboardAIMB-285G2-00A1E
CPUIntel® Core™ i3-6100 Processor
BIOSAMI EFI 128Mbit
MemorySocket2 x 260 Pin DDR4 SO-DIMM
TechnologyDDR4 2133MHz SO-DIMM
Max. Capacity32GB (up to 16GB per SO-DIMM)
GraphicsChipsetIntel HD Graphics
StoragemSATA1 (Full-size mini-PCIe)
2.5" Drive Bay1 (support 2.5" HDD/SSD, max 9.5 mm height)
EthernetInterface10/100/1000 Mbps
ControllerLAN1/ LAN2: Realtek RTL8111G
Connector2 (RJ-45)
AudioChipsetRealtek ALC892, High Definition Audio (HD)
ExpansionMini PCIe 1+1 (Full-size, Half-size); 1 (PCIe x4)
Front I/O InterfaceAntennaup to 2
Audio2 (Line-Out, Mic-In)
COM2 (1x RS-232/422/485, 1 x RS-232/422/485 with 5V/12V)
USB4 (USB2.0)
Rear I/O InterfaceDP++1
HDMI / DisplayPort*1
COM0
USB4
VGA(optional)
AudioBase on motherboard
Antennaup to 2
Ethernet2
Power Input1 (DC Jack)
MiscellaneousLED Indicators2 (Power LED, HDD LED)
Control1 (Power switch); 1(Reset switch)
Power RequirementPower ConsumptionBased on motherboard
Voltage12V DC-in
EnvironmentHumidity10 ~ 85% @ 40° C, non-condensing
Non-Operational Temperature-20 ~ 60° C (-4 ~ 140° F)
Operating Temperature0 ~ 45° C (32 ~ 113° F)(W/ HDD); 0 ~ 50°C (32 ~ 122°F)(w/ SSD)
Vibration Resistance1 Grms (HDD x 1); 3 Grms (SSD x 1)
Weight (kg)Weight (kg)3.23 kg
DimensionsDimensions (W x H x D)250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85")
Advantech
EPC-T22853A-00Y1E

Download

EPC-T2285-Series-System_DS(122220)20201222180535.pdf

EPC-T2285-Series-System_DS(122220)20201222180535.pdf
