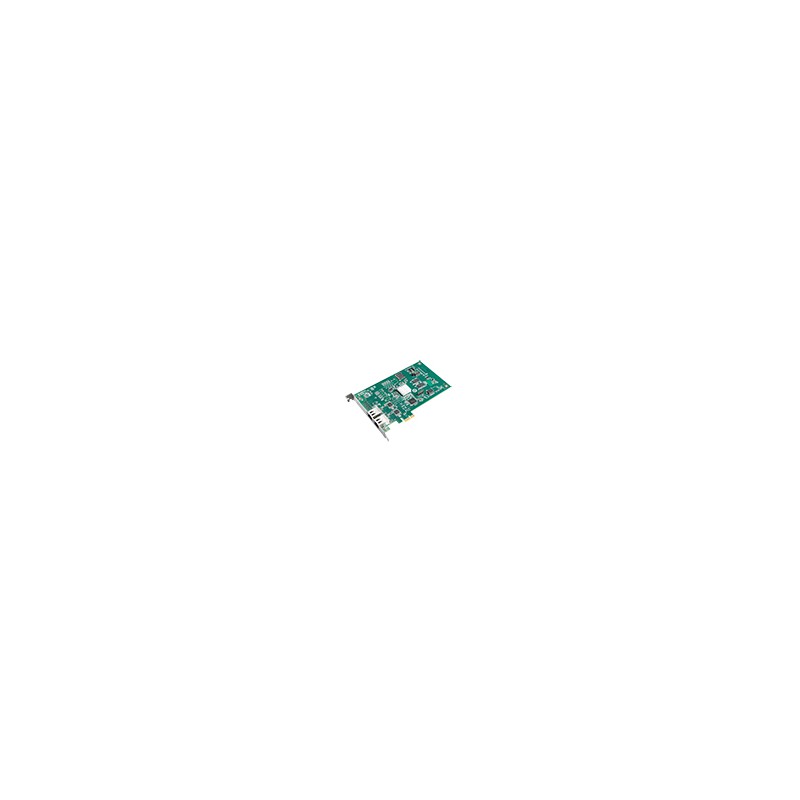

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file PCIE-1203L_DS(2024041520240415150800.pdf
Terms and Conditions
| Communications | Communication Cycle Time | 1000 us |
| Interface | EtherCAT | |
| EtherCAT | Communication IO SubDevice | 1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO |
| Communication Motion SubDevice | 64 Servo Drive Max. | |
| EtherCAT Extension | BUS Interface | 2 x RJ45 |
| Isolated Digital Input | Isolation Protection | 1,000 VDC |
| Isolated Digital Output | Output Type | Sink |
| Mechanical | Dimensions (L x H) | 175 x 100 mm |
| Pulse Type Motion Control | Interpolation | 2-axis linear |
| Number of Axes | 64 |
After placing your order, you will receive an email with a proforma invoice that details the most advantageous shipping cost. With us, you won't pay any hidden fees; we do not incorporate shipping costs into the product price. We will also provide you with an estimated delivery date. By confirming the proforma invoice, you give us the green light to dispatch your order and agree to our delivery terms.
We are proud certified partners of brands like Advantech, Westermo, Elproma, and Korenix. This ensures that you are purchasing quality and verified products directly from a trusted supplier. Visit the link to verify our collaboration directly on the official website.
Our team has extensive experience in designing and implementing large industrial projects. We have already collaborated with significant industrial enterprises, metro systems, and railway transport. If you are planning a larger project or need consultation, we are here for you! Our specialists are happy to assist you and prepare an offer tailored precisely to your needs.
Do you have questions or need quick assistance? Our customer service is ready to respond as quickly as possible and provide you with all the information you need.
We believe in the quality of our products and services. If for any reason you are not satisfied, we are happy to help you find a solution.
2-port EtherCAT Universal PCI MDevice Card 650MHz dual-core ARM processor. 2 x EtherCAT ports for high-performance of Motion and I/O applications. Supports common motion SDK for rapid application development. Up to 32 axes support for motion control. Supports a maximum of 6 motion groups and 8 axes per group. Supports on board 8-CH isolated DI and 4-CH...
