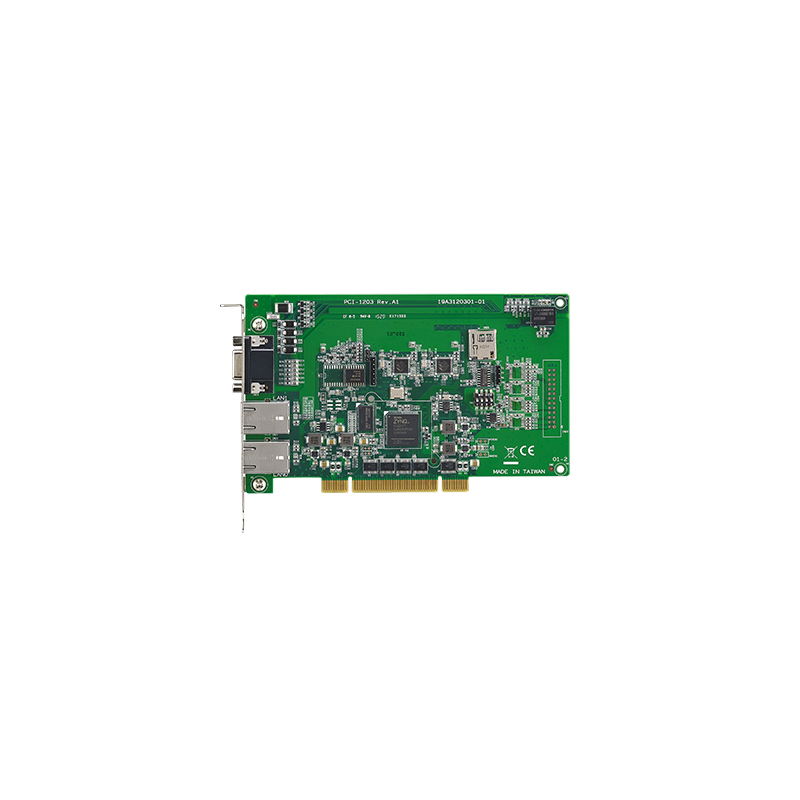

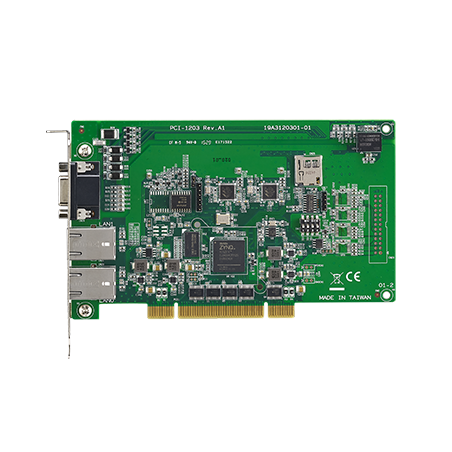

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file PCI-1203_DS(2024041520240415150237.pdf
Terms and Conditions
| Communications | Communication Cycle Time | 500 us |
| Interface | EtherCAT | |
| EtherCAT | Communication IO SubDevice | 1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO |
| Communication Motion SubDevice | 06 Servo Drive Max. | |
| EtherCAT Extension | BUS Interface | 2 x RJ45 |
| Isolated Digital Input | Isolation Protection | 1,000 VDC |
| Isolated Digital Output | Output Type | Sink |
| Mechanical | Dimensions (L x H) | 175 x 100 mm |
| Pulse Type Motion Control | Interpolation | 2 to 8-axis linear, 3-axis circular, X-Y plane with Z thread helical interpolation |
| Number of Axes | 6 |
