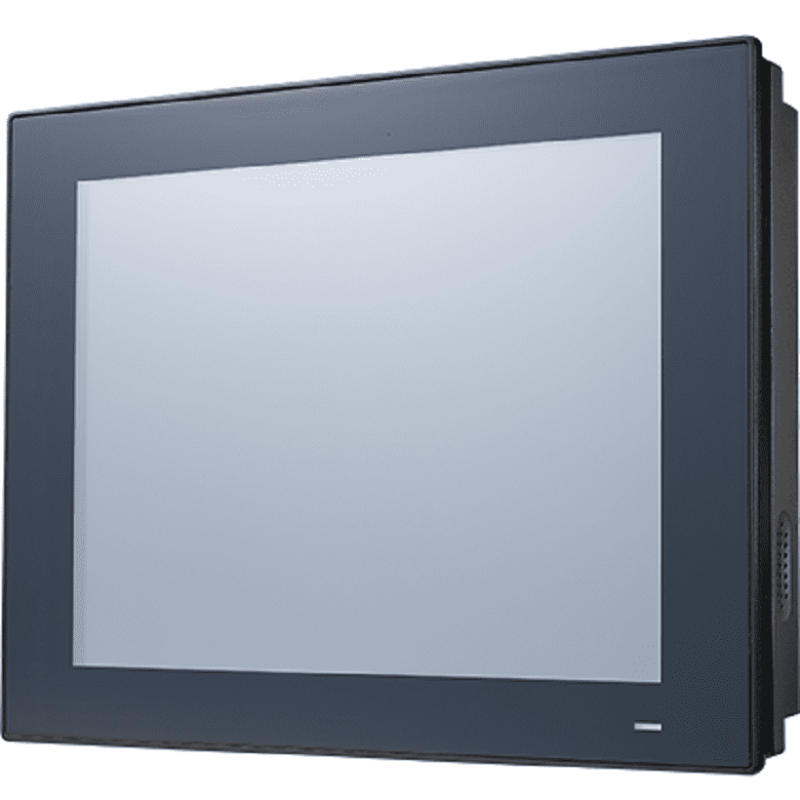

Advantech PPC-412-R750A

1 865 €

Tax excluded (incl. VAT: 2 257 €, 21%) In stock

12.1" PPC w/Intel i5-7300U, Res.

12.1" XGA TFT LCD with resistive touchscreen.
Intel® Core™ i5-7300U(default); i7-7600U/i3-7100U(optional) processor with fanless system design.
1 x isolated RS-422/485 with auto flow.
Wide input power range (9 ~ 32 VDC).
Dual Gigabit Ethernet with IEEE1588 support.
3 x Independent displays.
1 x M.2 bay (2242) for storage only and support SATA RAID 0/1.
No RED Certification.
Supports VESA 75 mounting interface.

Technical Documentation:

PPC-412_DS(081023)20230810135754.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

PPC-412 is a new generation industrial panel PC with a 12.1" TFT LCD, which features a flat, sleek design to greatly reduce maintenance effort. Pre-installed Intel® Core™ i processor and designed fanless architecture, PPC-412 provide high performance and reliable system for factory automation.

Hardware	CPU	7th generation Intel® Core™ i5-7300U 2.6GHz Dual-Core
	Memory	1 x DDR4 SO-DIMM Slot
	Storage	1 x SATA M.2 SSD slot (2242 B-Key), 1 x 2.5" SSD/HDD Bay
	LAN	2 x 10/100/1000 Mbps
	Ethernet	Intel® i210-AT GbE, Intel® i219-LM GbE
	I/O	3 x RS-232, 1 x RS-422/485, 4 x USB 3.0, 1 x Line Out, 1 x Mic In, 1 x VGA, 1 x DP
	Expansion	1 x Full-size mPCIe slot
	Watchdog Timer	1~255 s
I/O Interface	Serial Ports	3 x RS-232, 1 x RS-422/485
	Displays	1 x VGA, 1 x DP
USB Vision	Connector	4 x USB 3.0 Type A
I/O Interface	Audio	Line-Out, Mic-In
	Power Connector	1 x 2-Pin Terminal Block
Mechanical	Dimension (W x H x D)	317 x 246 x 61 mm
	Weight (Net)	3.4 kg (7.5 lb)
	Enclosure	Die-cast aluminum alloy, PC + ABS
	Mounting	Stand, Wall, VESA, Panel
Hardware	OS Support	Microsoft® Windows 10, Microsoft® Windows 10 LTSC, Linux
	Power Input	9~32 VDC
	Power Consumption	60 W @ 19 VDC
Touchscreen	Touch Type	5-wire resistive
LCD Display	Display Size	12.1"
	Max. Resolution	1024 x 768
	Viewing Angle (H/V°)	178/178
	Luminance (cd/m2)	600
	Backlight Life (hrs)	50,000
Environment	Operating Temperature	0~50 °C
	Storage Temperature	-20~60 °C
	Relative Humidity	95% RH (non-condensing)
	Shock Protection	10 G, half sine
	Vibration Protection	2 Grms, random
Hardware	Certification	CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
Environment	Ingress Protection	Front Panel IP66

Reference PPC-412-R750A

In stock 38 Items

Download

PPC-412_DS(081023)20230810135754.pdf
