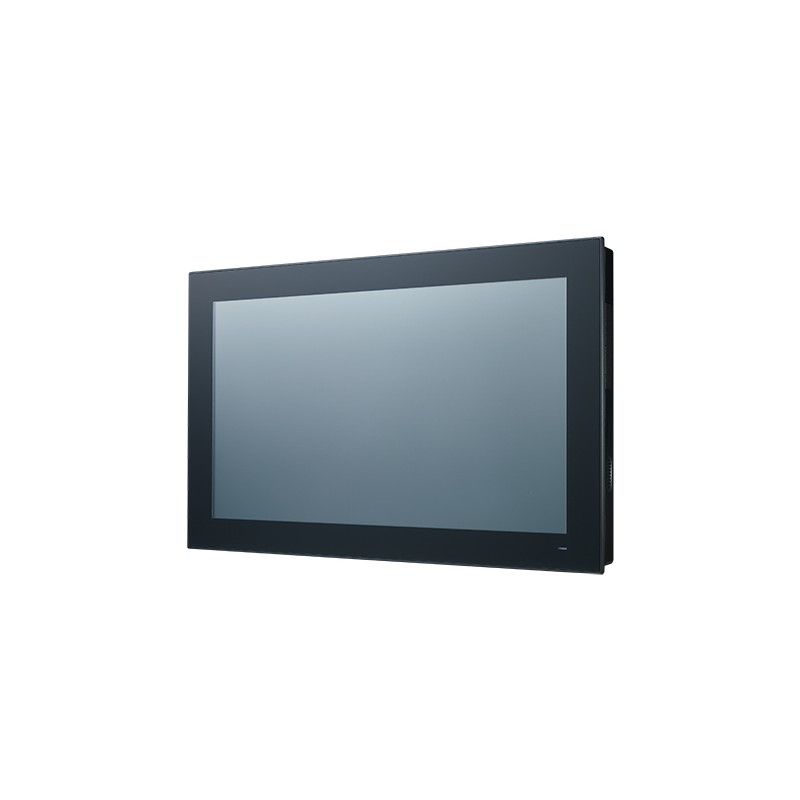

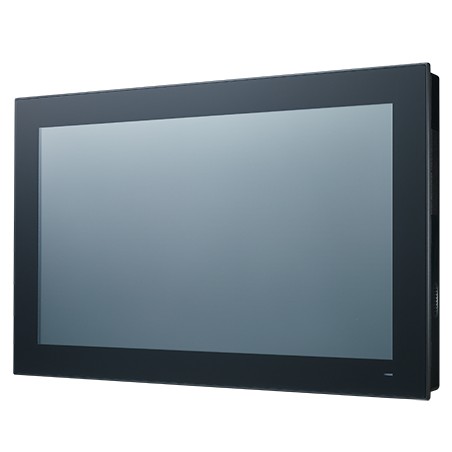

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file PPC-3211W_DS(052724)20240527144429.pdf
Terms and Conditions
| Hardware | CPU | 7th Gen. Intel® Core™ i5-7300U 2.6GHz Dual-Core |
| Memory | 1 x DDR4 SO-DIMM Slot | |
| Storage | 1 x SATA M.2 SSD slot (2242 B-Key), 2 x 2.5" SSD/HDD Bay | |
| LAN | 2 x 10/100/1000 Mbps | |
| Ethernet | Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802, Intel i219-IT GbE | |
| I/O | 2 x RS-232, 1 x RS-422/485, 4 x USB 3.0, 1 x Line Out, 1 x Mic In, 1 x VGA, 1 x DP | |
| Expansion | 1 x Mini PCIe, 1 x PCIe x 4, 1 x PCI | |
| Watchdog Timer | 1~255 s | |
| I/O Interface | Serial Ports | 4 x RS-232, 1 x RS-422/485 |
| USB Vision | Connector | 4 x USB 3.0 Type A |
| I/O Interface | Displays | 1 x VGA, 1 x DP |
| Audio | Line-Out, Mic-In | |
| Power Connector | 1 x 2-Pin Terminal Block | |
| Mechanical | Dimension (W x H x D) | 558 x 350 x 64 mm |
| Weight (Net) | 7.7 kg (17.1 lb) | |
| Enclosure | Die-cast aluminum alloy, PC + ABS | |
| Mounting | Stand, Wall, VESA, Panel | |
| Hardware | OS Support | Microsoft® Windows 10, Microsoft® Windows 10 LTSC, Linux |
| Power Input | 9~32 VDC | |
| Power Consumption | 75 W @ 19 VDC | |
| Touchscreen | Touch Type | PCAP |
| LCD Display | Display Size | 21.5" |
| Max. Resolution | 1920 x 1080 | |
| Viewing Angle (H/V°) | 178/178 | |
| Luminance (cd/m2) | 300 | |
| Backlight Life (hrs) | 50,000 | |
| Environment | Operating Temperature | 0~50 °C |
| Storage Temperature | -20~60 °C | |
| Relative Humidity | 95% RH (non-condensing) | |
| Shock Protection | 10 G, half sine | |
| Vibration Protection | 2 Grms, random | |
| Hardware | Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI |
| Environment | Ingress Protection | Front Panel IP66 |
