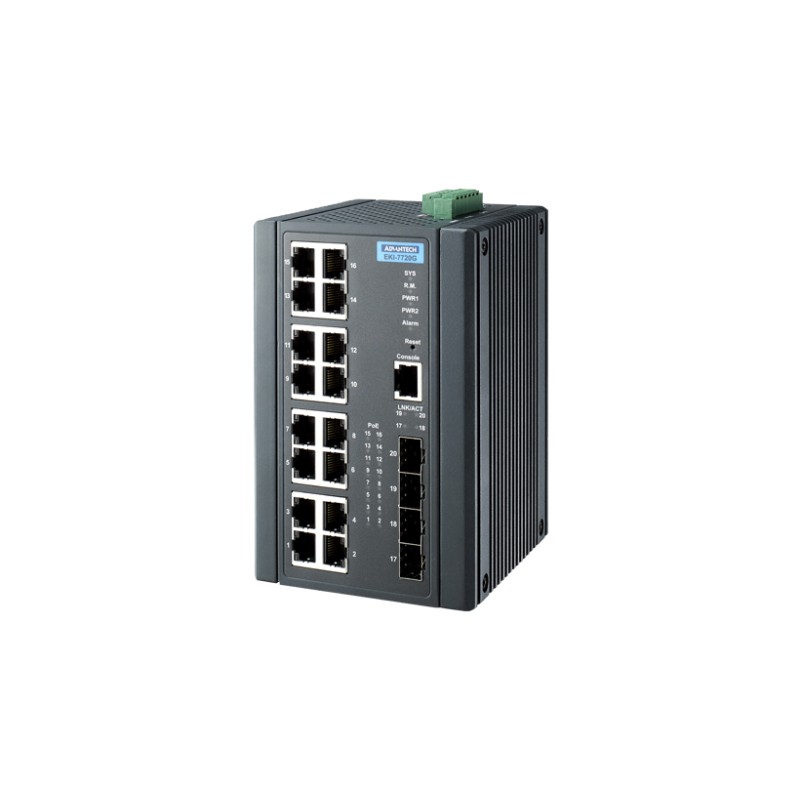

Advantech EKI-7720G-4FPI-AE

Name: Advantech EKI-7720G-4FPI-AE
Brand: Advantech
SKU: EKI-7720G-4FPI-AE
Price: 1451 EUR
Availability: InStock

€1,451

Tax excluded In stock

20 port Gigabit Managed Ethernet Switch with 16 PoE+ port, -40~70℃

16 IEEE 802.3af/at PoE ports.
Up to 420W power budget.
SFP socket for easy and flexible fiber expansion.
Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D).
IXM function enables fast deployment.
Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS.
Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB.
-40 ~ 70°C wide-range operating temperature.
Dual 48 ~ 57VDC power inputs and 1 x relay output.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-7720G-4FPI-AE

The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and din-rail/wall-mount installation options.

Certification	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	EMI	CE, FCC Class A
	Freefall	IEC 60068-2-32
	Safety	-
	Shock	IEC 60068-2-27
	Vibration	IEC 60068-2-6
Ethernet Communication	Ethernet Standard	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad
	RJ-45 Port Connector Type	16 x RJ-45 (Ethernet)
	RJ-45 Transmission Speed	10/100/1000 Mbps
	RJ-45 Transmission Distance	100 m
	Fiber Port Interface	SFP
	Fiber Transmission Speed	100/1000 Mbps
	Fiber Transmission Distance	Up to 110 km
Environment	Temperature (Operating Range)	-40 ~ 70°C
	Temperature (Storage Range)	-40 ~ 85°C
	Humidity (Operating Range)	10 ~ 95%
Mechanism	Dimensions (W x H x D)	97 x 152 x 105 mm
	Enclosure (Metal)	Metal
	IP Rating	IP30
	Mounting (DIN-rail)	Yes
	Mounting (Wall)	Yes
	Weight	1.2 kg
PoE Information	PoE Output	25.5W
	PoE Port Number	16
	PoE Budget	420W
Power	Power Connector Type	6-pin removable screw terminal (power & relay)
	Power Consumption	16W (system)
	Power Input (DC)	48 ~ 57 VDC
	Power Operating Current	0.3A @ 48 VDC (system)
Warranty	Warranty Period	5 years

Brand Advantech

Reference EKI-7720G-4FPI-AE

In stock 5 Items

Data sheet

Temperature (Operating Range): -40 ~ 70°C

Download

EKI-7720G-4FPI_DS(061721)20210709144315.pdf

EKI-7720G-4FPI_DS(062420)20210423145900.pdf
