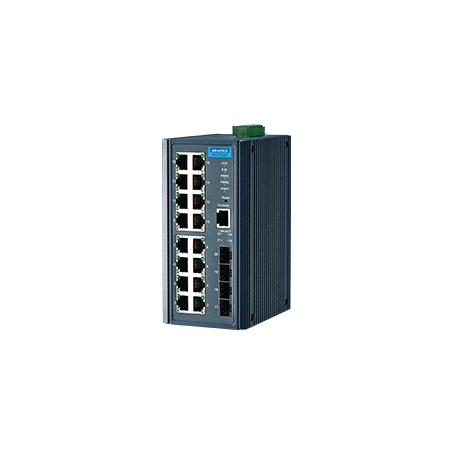

Advantech EKI-7720G-4F-AE

€1,191
Tax excluded In stock

20 port Full Gigabit Managed Ethernet Switch

  • 16 Gigabit Ethernet ports + 4 SFP ports.
  • SFP socket for Easy and Flexible Fiber Expansion.
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D).
  • IXM function enables fast deployment.
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS.
  • NEMA TS2 for Traffic Control.
  • EN50121-4 approval for Railway trackside deployment.
  • Dual 12~48 VDC power input and 1 relay output.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-7720G-4F-AE


EKI-7720G-4F/4FI supports 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advan-tech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720G-4FI).
* Port ConfigurationTotal Port Number20
Description16 x 10/100/1000Base-T(X)
CertificationEthernet StandardIEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
VibrationIEC 60068-2-6
FreefallIEC 60068-2-32
ShockIEC 60068-2-27
EMS-
EMICE, FCC Class A x
EMCEN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
SafetyUL 61010-2-201, EN 62368-1 (LVD)
EnvironmentTemperature (Max. Operating)60°C (140°F)
Temperature (Min. Operating)-10°C (14°F)
Relative Humidity10 ~ 95%
Temperature (Operating Range)-10 ~ 60°C (14 ~ 140°F)
Humidity (Operating Range)-
Temperature (Storage Range)-40 ~ 85°C (-40 ~ 185°F) x
Ethernet CommunicationRJ-45/SFP Combo Port Speed-
RJ-45/SFP Combo Port Number-
Fiber Port Optical Mode-
Fiber Transmission Speed-
Fiber Port Number4
RJ-45 Port Number-
Fiber Transmission DistanceUp to 110 km
Fiber Port Connector TypeSFP cage x
Fiber Port Interface xSFP
RJ-45 Transmission Distance100 m
Ethernet Standard-
RJ-45 Port Connector Type !16 x RJ-45 + 4 x SFP ports
RJ-45 Transmission Speed10/100/1000 Mbps x
MechanismMounting (Panel)-
Enclosure (Plastic)-
Mounting (Pole Mount)-
Mounting (Stack)-
Mounting (Wall)Yes
Mounting (Rack Mount)-
Mounting (DIN-rail)Yes
Weight1.1 kg
IP RatingIP30
Dimensions (W x H x D)74 x 152 x 105 mm (2.91 x 5.98 x 4.13) x
MTBFMethodTelcordia(Relax), GB
Time-
PoE InformationSupport PoE-
PoE Output-
PoE Budget-
PoE Port Number-
PowerRedundant Dual Inputs-
Power Input (Battery)-
Power Input (PoE)-
Power Input (AC)-
Power Operating Current0.25A @ 48VDC (system)
Power Connector Type6-pin removable screw terminal (power & relay)x
Power Input (DC)12 ~ 48 VDC
Power Consumption12.1W (system)
Protection Reverse PolarityPresent
Overload Current-
Switch PropertiesJumbo Frame9,216 bytes
Switch Fabric Speed40Gbps
Packet Buffer Size4.1M bit
MAC Table Size8K
WarrantyWarranty Period5 years
Advantech
EKI-7720G-4F-AE
22 Items

Data sheet

Ports Number
20
Temperature (Operating Range)
-10 ~ 60°C
Switch Fabric Speed
40Gbps

Download

EKI-7720G-4F_4FI_DS(062221)20210709144314.pdf

EKI-7720G-4F_4FI_DS(062221)20210709144314.pdf

EKI-7720G-4FI_DS(020521)20210422113519.pdf

EKI-7720G-4FI_DS(020521)20210422113519.pdf
