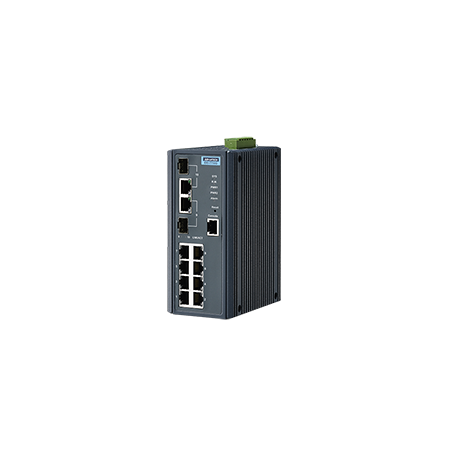

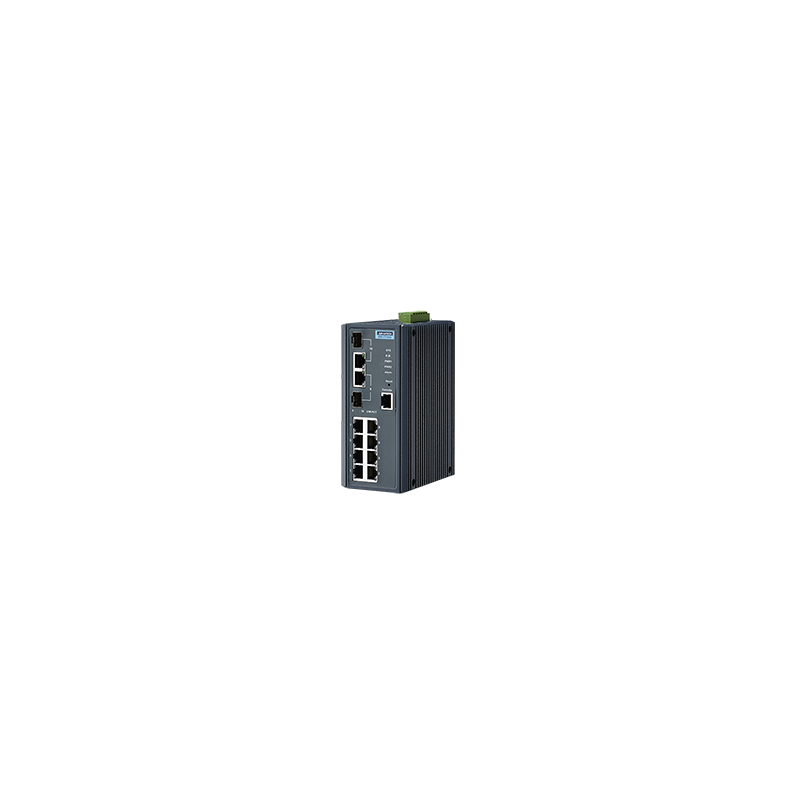

Advantech EKI-7710G-2CI-AE

Name: Advantech EKI-7710G-2CI-AE
Brand: Advantech
SKU: EKI-7710G-2CI-AE
Price: 903 EUR
Availability: OutOfStock

903 €

Tax excluded (incl. VAT: 1 093 €, 21%)

10 port Full Gigabit Managed Ethernet Switch, -40~75℃

8 Gigabit ports + 2 Gigabit Copper/SFP combo ports.
SFP socket for Easy and Flexible Fiber Expansion.
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D).
IXM function enables fast deployment.
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS.
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB.
-40 ~ 75°C wide-range operating temperature (EKI-7710G-2CI).
Dual 12~48 V DC power input and 1 relay output.

Technical Documentation:

EKI-7710G-2CI_DS(020521)20210205161428.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

EKI-7710G-2C/2CI supports 8 Gigabit ports and 2 Gigabit combo ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710G series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.

Certification	Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
	Vibration	IEC 60068-2-6
	Freefall	IEC 60068-2-32
	Shock	IEC 60068-2-27
	EMS	-
	EMI	CE, FCC Class A
	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Safety	LVD IEC/EN 62368-1
Environment	Temperature (Max. Operating)	75°C
	Temperature (Min. Operating)	-40°C
	Relative Humidity	10~95%
	Operating Temperature	-40 ~ 75°C
	Operating Humidity	-
	Storage Temperature	-40 ~ 85°C
Ethernet Communication	RJ-45/SFP Combo Port Speed	-
	RJ-45/SFP Combo Port Number	2
	Fiber Port Optical Mode	-
	Fiber Transmission Speed	-
	Fiber Port Number	2
	RJ-45 Port Number	10
	Fiber Transmission Distance	Up to 110 km
	Fiber Port Connector Type	SFP cage
	Fiber Port Interface	SFP
	RJ-45 Transmission Distance	100 m
	Ethernet Standard	-
	RJ-45 Port Connector Type	RJ-45
	RJ-45 Transmission Speed	10/100/1000 Mbps
Mechanism	Mounting (Panel)	-
	Enclosure (Plastic)	-
	Mounting (Pole Mount)	-
	Mounting (Stack)	-
	Mounting (Wall)	Yes
	Mounting (Rack Mount)	-
	Mounting (DIN-rail)	Yes
	Weight	1.1 kg
	IP Rating	IP30
	Dimensions (W x H x D)	74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
MTBF	Method	Telcordia(Relax), GB
	Time	858,835 hours
PoE Information	Support PoE	-
	PoE Output	-
	PoE Budget	-
	PoE Port Number	-
Power	Redundant Dual Inputs	-
	Power Input (Battery)	-
	Power Input (PoE)	-
	Power Input (AC)	-
	Power Operating Current	0.25A @ 48VDC (system)
	Power Connector Type	6-pin removable screw terminal (power & relay)
	Power Input (DC)	12 ~ 48 VDC
	Power Consumption	12.1W (system)
Protection	Reverse Polarity	Present
	Overload Current	-
Switch Properties	Jumbo Frame	9,216 bytes
	Switch Fabric Speed	20Gbps
	Packet Buffer Size	4.1M bit
	MAC Table Size	8K
Warranty	Warranty Period	5 years

Reference EKI-7710G-2CI-AE

Data sheet

Temperature (Operating Range): -40 ~ 75°C
Ports Number: 10
Switch Fabric Speed: 20Gbps

Download

EKI-7710G-2CI_DS(020521)20210205161428.pdf
