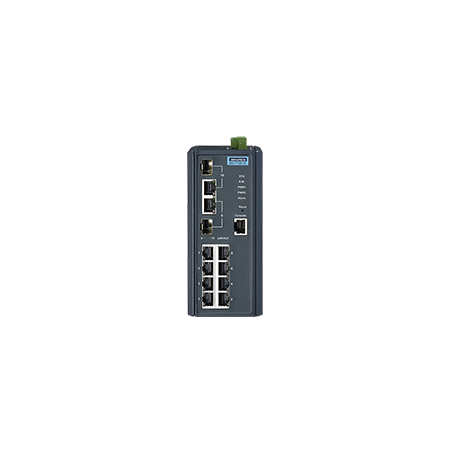

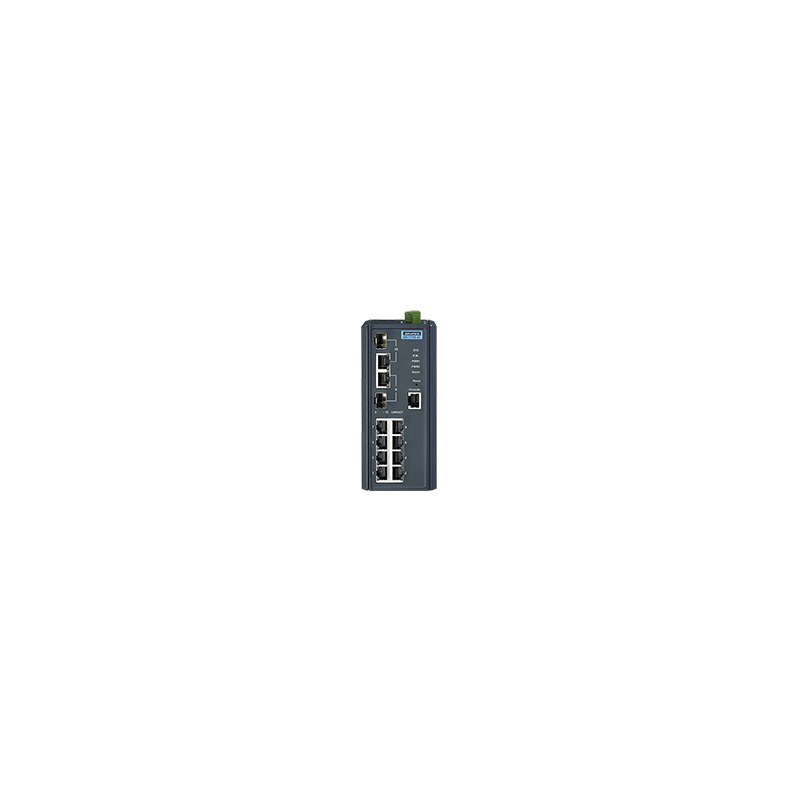

Advantech EKI-7710E-2C-AE

Name: Advantech EKI-7710E-2C-AE
Brand: Advantech
SKU: EKI-7710E-2C-AE
Price: 681 EUR
Availability: InStock

€681

Tax excluded In stock

8+2G port Gigabit Managed Ethernet Switch

8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports.
SFP socket for Easy and Flexible Fiber Expansion.
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D).
IXM function enables fast deployment.
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS.
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB.
-40 ~ 75°C wide-range operating temperature (EKI-7710E-2CI).
Dual 12~48 V DC power input and 1 relay output.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-7710E-2C-AE

EKI-7710E-2C/2CI supports 8 Fast Ethernet ports and 2 Gigabit combo ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710E series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710E series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.

* Port Configuration	Total Port Number	10
	Description	8 x 10/100-BaseT(X), 2 x 10/100/1000Base-T(X) (Combo)
Certification	Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
	Vibration	IEC 60068-2-6
	Freefall	IEC 60068-2-32
	Shock	IEC 60068-2-27
	EMS	-
	EMI	CE, FCC Class A x
	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Safety	LVD IEC/EN 62368-1
Environment	Temperature (Max. Operating)	60°C (140°F)
	Temperature (Min. Operating)	-10°C (14°F)
	Relative Humidity	10 ~ 95%
	Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
	Humidity (Operating Range)	-
	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Ethernet Communication	RJ-45/SFP Combo Port Speed	-
	RJ-45/SFP Combo Port Number	2
	Fiber Port Optical Mode	-
	Fiber Transmission Speed	-
	Fiber Port Number	2
	RJ-45 Port Number	10
	Fiber Transmission Distance	Up to 110 km
	Fiber Port Connector Type	SFP cage x
	Fiber Port Interface x	SFP
	RJ-45 Transmission Distance	100 m
	Ethernet Standard	-
	RJ-45 Port Connector Type !	RJ-45
	RJ-45 Transmission Speed	10/100/1000 Mbps x
Mechanism	Mounting (Panel)	-
	Enclosure (Plastic)	-
	Mounting (Pole Mount)	-
	Mounting (Stack)	-
	Mounting (Wall)	Yes
	Mounting (Rack Mount)	-
	Mounting (DIN-rail)	Yes
	Weight	1.1 kg
	IP Rating	IP30
	Dimensions (W x H x D)	74 x 152 x 105 mm (2.91 x 5.98 x 4.13) x
MTBF	Method	Telcordia(Relax), GB
	Time	858,835 hours
PoE Information	Support PoE	-
	PoE Output	-
	PoE Budget	-
	PoE Port Number	-
Power	Redundant Dual Inputs	-
	Power Input (Battery)	-
	Power Input (PoE)	-
	Power Input (AC)	-
	Power Operating Current	0.25A @ 48VDC (system)
	Power Connector Type	6-pin removable screw terminal (power & relay)x
	Power Input (DC)	12 ~ 48 VDC
	Power Consumption	12.1W (system)
Protection	Reverse Polarity	Present
	Overload Current	-
Switch Properties	Jumbo Frame	9,216 bytes
	Switch Fabric Speed	5.6Gbps
	Packet Buffer Size	4.1M bit
	MAC Table Size	8K
Warranty	Warranty Period	5 years

Brand Advantech

Reference EKI-7710E-2C-AE

In stock 42 Items

Data sheet

Ports Number: 10
Temperature (Operating Range): -10 ~ 60°C
Switch Fabric Speed: 5.6Gbps

Download

EKI-7710E-2C_2CI_DS(061521)20210709144309.pdf

EKI-7710E-2CI_DS(020521)20210205160643.pdf
