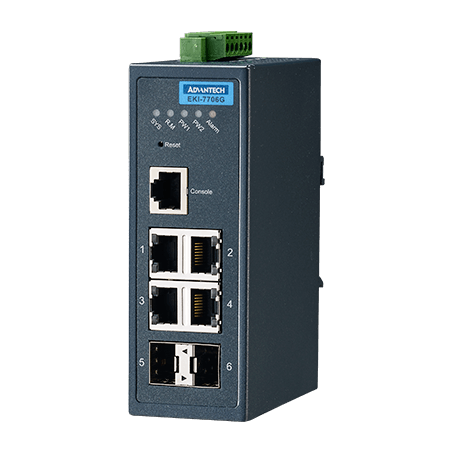

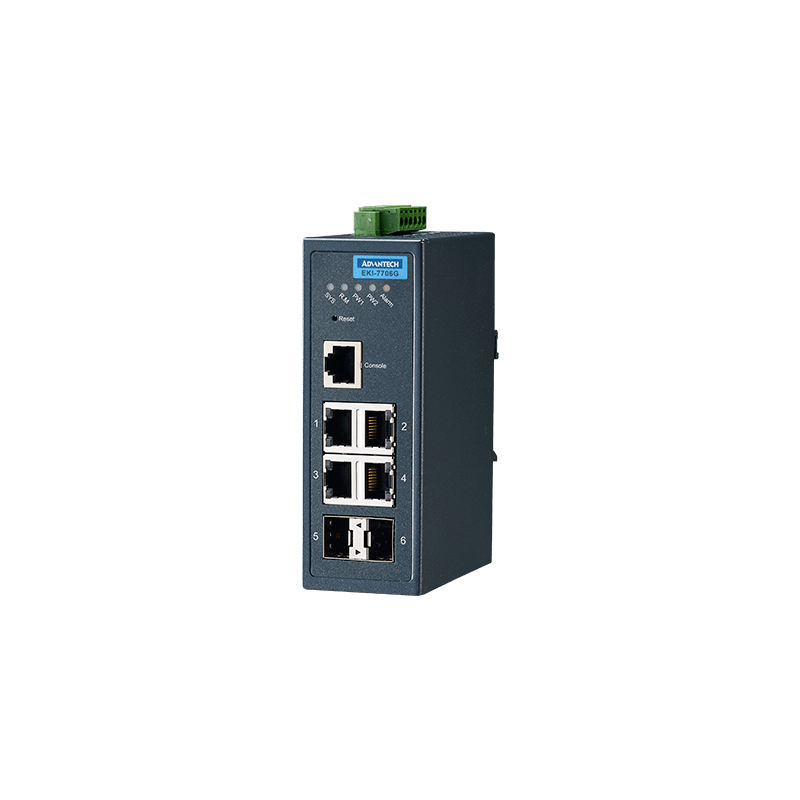

Advantech EKI-7706G-2FI-AE

Name: Advantech EKI-7706G-2FI-AE
Brand: Advantech
SKU: EKI-7706G-2FI-AE
Price: 589 EUR
Availability: InStock

€589

Tax excluded In stock

6port Full Gigabit Managed Ethernet Switch with 4 PoE+ port,-40~75℃

4 Gigabit Ethernet ports + 2 SFP ports.
SFP socket for easy and flexible fiber expansion.
Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D).
IXM function enables fast deployment.
Security: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS.
Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB.
-40 ~ 85 °C wide-range operating temperature (EKI-7706G-2FI).
Dual 12~48 VDC power input and 1 relay output.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-7706G-2FI-AE

EKI-7706G-2F/2FI supports 4 Gigabit Ethernet ports and 2 SFP ports. It provides abundant ports to connect many devices and it is embedded with Advantech’s IXM function, which benefits users with fast deployment and can dramatically save engineers time and costs. The EKI-7706G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7706G series is equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of less than 20 ms to ensure network stability.

* Port Configuration	Total Port Number	6
	Description	10 x 10/100/1000Base-T(X)
Certification	Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
	Vibration	IEC 60068-2-6
	Freefall	IEC 60068-2-32
	Shock	IEC 60068-2-27
	EMS	-
	EMI	CE, FCC Class A x
	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Safety	UL 61010-2-201, EN 62368-1 (LVD)
Environment	Temperature (Max. Operating)	75°C (167°F)x
	Temperature (Min. Operating)	-40°C (-40°F)x
	Relative Humidity	10 ~ 95%
	Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F) x
	Humidity (Operating Range)	-
	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Ethernet Communication	RJ-45/SFP Combo Port Speed	-
	RJ-45/SFP Combo Port Number	-
	Fiber Port Optical Mode	-
	Fiber Transmission Speed	10/100/1000 Mbps x
	Fiber Port Number	2
	RJ-45 Port Number	4
	Fiber Transmission Distance	Up to 110 km
	Fiber Port Connector Type	SFP cage x
	Fiber Port Interface x	SFP
	RJ-45 Transmission Distance	100 m
	Ethernet Standard	-
	RJ-45 Port Connector Type !	RJ-45
	RJ-45 Transmission Speed	10/100/1000 Mbps x
Mechanism	Mounting (Panel)	-
	Enclosure (Plastic)	-
	Mounting (Pole Mount)	-
	Mounting (Stack)	-
	Mounting (Wall)	Yes
	Mounting (Rack Mount)	-
	Mounting (DIN-rail)	Yes
	Weight	0.45 kg (1.0 lb) x
	IP Rating	IP30
	Dimensions (W x H x D)	43 x 120 x 84 mm
MTBF	Method	Telcordia, GB
	Time	-
PoE Information	Support PoE	-
	PoE Output	-
	PoE Budget	-
	PoE Port Number	-
Power	Redundant Dual Inputs	-
	Power Input (Battery)	-
	Power Input (PoE)	-
	Power Operating Current	0.11A @ 48Vdc
	Power Connector Type	6-pin removable screw terminal (power & relay)x
	Power Input (DC)	12 ~ 48 VDC
	Power Consumption	5.28W
Protection	Reverse Polarity	Present
	Overload Current	-
Switch Properties	Jumbo Frame	-
	Switch Fabric Speed	12Gbbps x
	Packet Buffer Size	4.1M bit x
	MAC Table Size	8K
Warranty	Warranty Period	5 years

Brand Advantech

Reference EKI-7706G-2FI-AE

In stock 12 Items

Data sheet

Ports Number: 6
Temperature (Operating Range): -40 ~ 75°C
Switch Fabric Speed: 12Gbbps x

Download

EKI-7706G-2F_2FI_DS(062221)20210709144306.pdf
