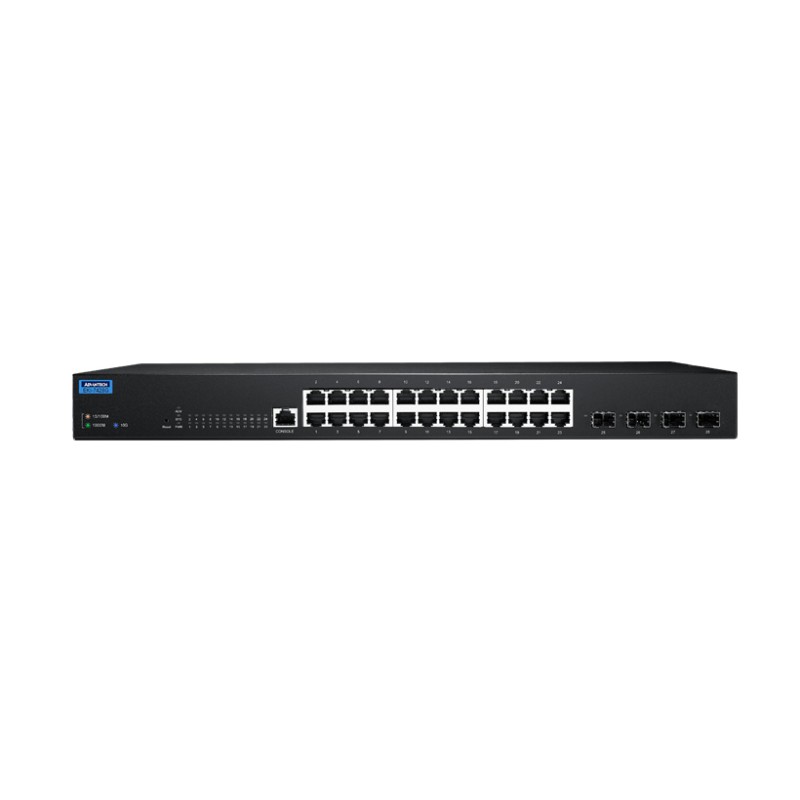

Advantech EKI-7428G-4X-AE

Name: Advantech EKI-7428G-4X-AE
Brand: Advantech
SKU: EKI-7428G-4X-AE
Price: 879 EUR
Availability: InStock

879 €

Tax excluded (incl. VAT: 1 064 €, 21%) In stock

24GE + 4 SFP+ L2 Managed Switch

24 Gigabit Ethernet ports and 4 10G SFP ports.
0 to 60°C operating temperature range.
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB.
IXM function enables f deployment.
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D), MSTP.

Technical Documentation:

EKI-7428G-4X_4XP_DS(062221)20210625115148.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The EKI-7248G-4X is equipped with 24 Gigabit Ethernet ports plus 4 10G SFP+ ports, supporting up to 60°C wide operating temperature against the harsh environment.

Certification	Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3ae
	Vibration	-
	Freefall	-
	Shock	-
	EMS	-
	EMI	-
	EMC	EN 55032:2015+AC:2016 ClassA EN 61000-3-2:2014 Class A EN 61000-3-3:2013 EN 55035:2017 FCC Part 15, Subpart B
	Safety	LVD 62368-1
Environment	Temperature (Max. Operating)	60°C
	Temperature (Min. Operating)	0°C
	Relative Humidity	-
	Operating Temperature	0 ~ 60°C
	Operating Humidity	10~95%
	Storage Temperature	-40 ~ 70°C
Ethernet Communication	RJ-45/SFP Combo Port Speed	-
	RJ-45/SFP Combo Port Number	-
	Fiber Port Optical Mode	-
	Fiber Transmission Speed	1G/2.5G/5G/10G
	Fiber Port Number	4
	RJ-45 Port Number	28
	Fiber Transmission Distance	Up to 100 km
	Fiber Port Connector Type	SFP+ cage
	Fiber Port Interface	SFP+
	RJ-45 Transmission Distance	100 m
	Ethernet Standard	-
	RJ-45 Port Connector Type	RJ-45
	RJ-45 Transmission Speed	10/100/1000 Mbps
Mechanism	Mounting (Panel)	-
	Enclosure (Plastic)	-
	Mounting (Pole Mount)	-
	Mounting (Stack)	-
	Mounting (Wall)	-
	Mounting (Rack Mount)	Yes
	Mounting (DIN-rail)	-
	Weight	-
	IP Rating	-
	Dimensions (W x H x D)	441 x 44 x 196 mm
MTBF	Method	-
	Time	-
PoE Information	Support PoE	-
	PoE Output	-
	PoE Budget	-
	PoE Port Number	-
Power	Redundant Dual Inputs	-
	Power Input (Battery)	-
	Power Input (PoE)	-
	Power Input (AC)	100 ~ 240 VAC
	Power Operating Current	-
	Power Connector Type	-
	Power Input (DC)	-
	Power Consumption	-
Protection	Reverse Polarity	-
	Overload Current	-
Switch Properties	Jumbo Frame	-
	Switch Fabric Speed	-
	Packet Buffer Size	-
	MAC Table Size	-
Warranty	Warranty Period	-

Reference EKI-7428G-4X-AE

In stock 12 Items

Data sheet

Switch Fabric Speed: -
Temperature (Operating Range): 0 ~ 60°C
Ports Number: 28

Download

EKI-7428G-4X_4XP_DS(062221)20210625115148.pdf
