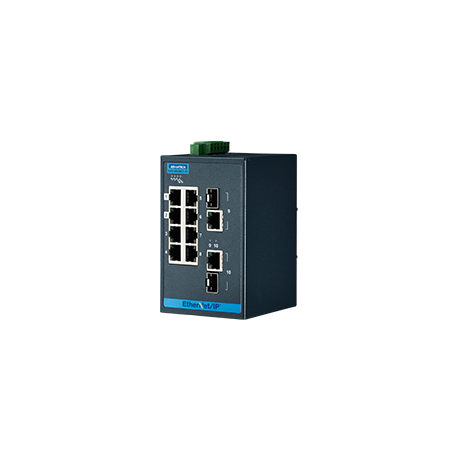

Advantech EKI-5629CI-EI-AE

Name: Advantech EKI-5629CI-EI-AE
Brand: Advantech
SKU: EKI-5629CI-EI-AE
Price: 480 EUR
Availability: OutOfStock

480 €

Tax excluded (incl. VAT: 581 €, 21%)

8+2G Lite Managed Ethernet Switch support EtherNet/IP, -40~75℃

8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports (EKI-5629C/I-EI).
Entry-Level Managed Switch.
IXM function enables fast deployment.
Provides EtherNet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions) file, and FactoryTalk® View faceplate.
Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB.

Technical Documentation:

EKI-5629C_I-EI20161013213538.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The EKI-5629C/I-EI are a new generation of entry-level managed switch products. They support the EtherNet/IP protocol to communicate with Ethernet/IP based PLCs. Advantech also provides the FactoryTalk® View compliant faceplate, so users can easily integrate the switch with Allen-Bradley® PLCs. "Electronic Data Sheet" (EDS files) are also available for users to customize faceplate. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.

Certification	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	EMI	CE, FCC Class A
	EMS	-
	Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
	Freefall	IEC 60068-2-32
	Safety	UL 508
	Shock	IEC 60068-2-27
	Vibration	IEC 60068-2-6
Environment	Relative Humidity	10~95%
	Temperature (Max. Operating)	75°C
	Temperature (Min. Operating)	-40°C
	Operating Temperature	-40 ~ 75°C
	Storage Temperature	-40 ~ 85°C
Ethernet Communication	Fiber Port Connector Type	SFP cage
	Fiber Port Interface	SFP
	Fiber Port Number	2
	Fiber Transmission Speed	10/100/1000 Mbps
	Fiber Transmission Distance	Up to 110 km
	RJ-45 Port Connector Type	RJ-45
	RJ-45 Port Number	8
	RJ-45 Transmission Distance	100 m
	RJ-45 Transmission Speed	10/100 Mbps
	RJ-45/SFP Combo Port Number	2
	RJ-45/SFP Combo Port Speed	10/100/1000 Mbps
Protocol Support	Modbus TCP	-
	Modbus RTU	-
	PROFINET	-
	EtherNet/IP	Yes
	EtherCAT	-
	OPC UA	-
	BACnet	-
	Ethernet	Yes
Mechanism	Dimensions (W x H x D)	74 x 120 x 84 mm
	Enclosure (Plastic)	-
	IP Rating	IP30
	Mounting (DIN-rail)	Yes
	Mounting (Panel)	-
	Mounting (Pole Mount)	-
	Mounting (Rack Mount)	-
	Mounting (Stack)	-
	Mounting (Wall)	Yes
	Weight	0.7 kg
MTBF	Method	Telcordia(Relax), GB
	Time	3,183,604 hours
PoE Information	PoE Port Number	-
	PoE Budget	-
	PoE Output	-
	Support PoE	No
Power	Power Connector Type	6-pin removable screw terminal (power & relay)
	Power Consumption	5.8W
	Power Input (AC)	-
	Power Input (Battery)	-
	Power Input (DC)	12 ~ 48 VDC
	Power Input (PoE)	-
	Power Operating Current	0.12A @ 48Vdc (system)
	Redundant Dual Inputs	-
Protection	Reverse Polarity	Present
	Overload Current	-
Switch Properties	Jumbo Frame	9,216 bytes
	MAC Table Size	8K
	Packet Buffer Size	4.1M bit
	Switch Fabric Speed	5.6Gbps
Warranty	Warranty Period	5 years

Reference EKI-5629CI-EI-AE

Data sheet

Temperature (Operating Range): -40 ~ 75°C
Switch Fabric Speed: 5.6Gbps
Ports Number: 8

Download

EKI-5629C_I-EI20161013213538.pdf
