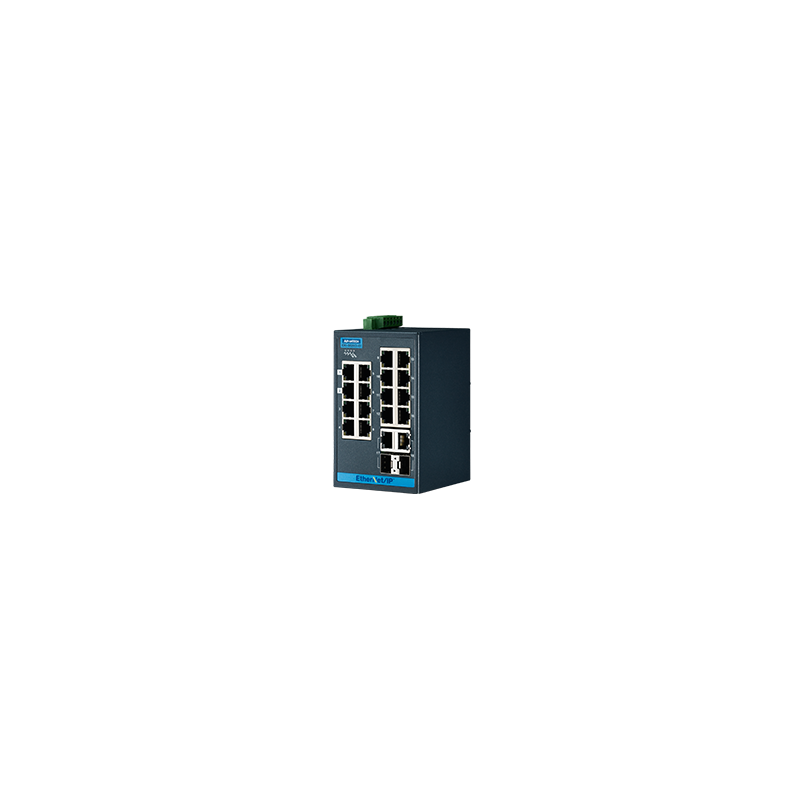

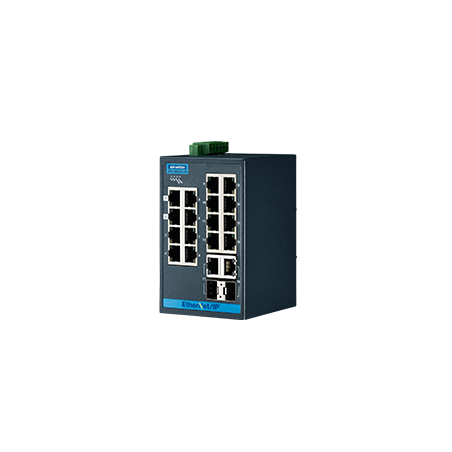

Advantech EKI-5626CI-EI-AE
search
  • Advantech EKI-5626CI-EI-AE
  • Advantech EKI-5626CI-EI-AE

Advantech EKI-5626CI-EI-AE

€806
Tax excluded In stock

16+2G port Lite Managed Ethernet Switch support EtherNet/IP, -40~75℃

  • 16 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports (EKI-5626C/I-EI).
  • Entry-Level Managed Switch.
  • IXM function enables fast deployment.
  • Provides EtherNet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions) file, and FactoryTalk® View faceplate.
  • Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-5626CI-EI-AE


The EKI-5626C/I-EI are a new generation of entry-level managed switch products. They support the EtherNet/IP protocol to communicate with Ethernet/IP based PLCs. Advantech also provides the FactoryTalk® View compliant faceplate, so users can easily integrate the switch with Allen-Bradley® PLCs. "Electronic Data Sheet" (EDS files) are also available for users to customize faceplate. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
* Port ConfigurationDescription16 x 10/100BaseT(X), 2 x 10/100/1000Base-T(X)
Total Port Number16
CertificationEMCEN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
EMICE, FCC Class A x
EMS-
Ethernet StandardIEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
FreefallIEC 60068-2-32
SafetyUL 508
ShockIEC 60068-2-27
VibrationIEC 60068-2-6
EnvironmentRelative Humidity10 ~ 95%
Temperature (Max. Operating)75°C (167°F)x
Temperature (Min. Operating)-40°C (-40°F)x
Temperature (Operating Range)-40 ~ 75°C (-40 ~ 167°F) x
Temperature (Storage Range)-40 ~ 85°C (-40 ~ 185°F) x
Ethernet CommunicationFiber Port Connector TypeSFP cage x
Fiber Port Interface xSFP
Fiber Port Number2
Fiber Transmission Speed10/100/1000 Mbps x
Fiber Transmission DistanceUp to 110 km
RJ-45 Port Connector Type !RJ-45
RJ-45 Port Number16
RJ-45 Transmission Distance100 m
RJ-45 Transmission Speed10/100 Mbps x
RJ-45/SFP Combo Port Number2
RJ-45/SFP Combo Port Speed10/100/1000 Mbps
Protocol SupportModbus TCP-
Modbus RTU-
PROFINET-
EtherNet/IPYes
EtherCAT-
OPC UA-
BACnet-
EthernetYes
MechanismDimensions (W x H x D)74 x 120 x 84 mm
Enclosure (Plastic)-
IP RatingIP30
Mounting (DIN-rail)Yes
Mounting (Panel)-
Mounting (Pole Mount)-
Mounting (Rack Mount)-
Mounting (Stack)-
Mounting (Wall)Yes
Weight0.7 kg
MTBFMethodTelcordia(Relax), GB
Time2,825,281 hours
PoE InformationPoE Port Number-
PoE Budget-
PoE Output-
Support PoENo
PowerPower Connector Type6-pin removable screw terminal (power & relay)x
Power Consumption8.2W (system)
Power Input (AC)-
Power Input (Battery)-
Power Input (DC)12 ~ 48 VDC
Power Input (PoE)-
Power Operating Current0.12A @ 48Vdc (system)
Redundant Dual Inputs-
Protection Reverse PolarityPresent
Overload Current-
Switch PropertiesJumbo Frame9,216 bytes
MAC Table Size8K
Packet Buffer Size4.1M bit
Switch Fabric Speed7.2Gbps
WarrantyWarranty Period5 years
Advantech
EKI-5626CI-EI-AE
1 Item

Data sheet

Ports Number
16
Temperature (Operating Range)
-40 ~ 75°C
Switch Fabric Speed
7.2Gbps

Download

EKI-5626CI-MB-Series_DS(031521)20210504130824.PDF

EKI-5626CI-MB-Series_DS(031521)20210504130824.PDF

EKI-5626C_I-EI20161014075028.pdf

EKI-5626C_I-EI20161014075028.pdf
