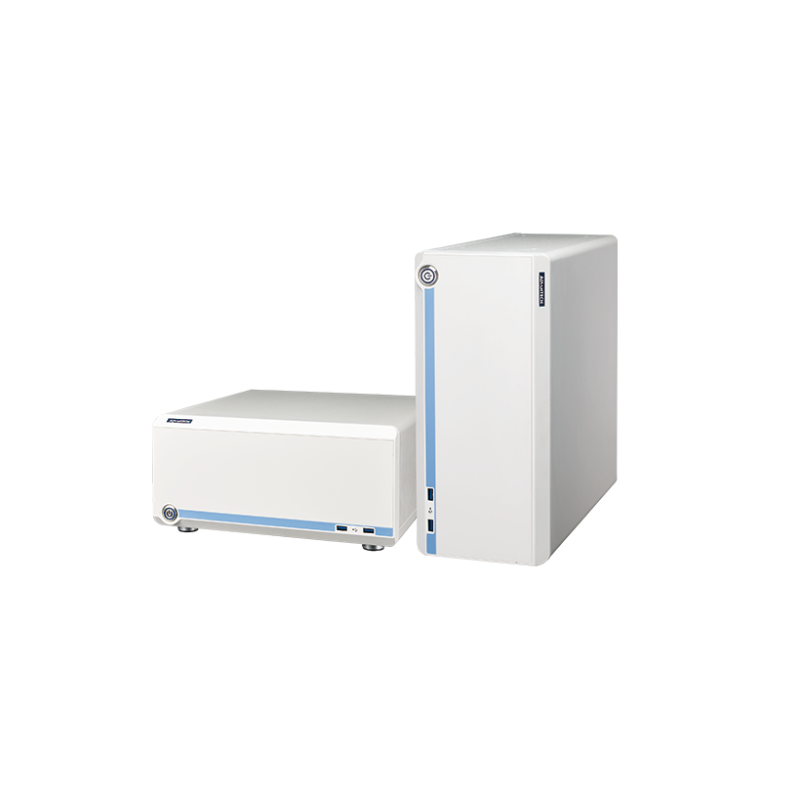

Advantech USM-500JW7165S
I7-8700/16G/512GSSD
- Stylish and user friendly outlook for hospital environment.
- Support Intel® Xeon® 8th/9th Gen Core™ i7/i5/i3 processor with intel Q370/ C246.
- Rich expansion for multi-purpose application.
- Support Window 10 LTSC/Linux/nVidia AI (Clara SDK).
- M.2 2280/2230 expansion slot.
- HDMI and DP for multiple display used.
- Support WISE-Device on.
- Support Software RAID 0,1,5,10, TPM1.2/2.0 (Optional).
Terms and Conditions
* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech USM-500JW7165S
Processor | CPU | Intel 8th/9th Gen Processor (i3/i5/i7 TDP 65W) |
Chipset | Intel Q370/Intel C246 (Optional for Xeon CPU) | |
Processor System | Memory | 4 slots U-DIMM sockets support up to 128GB DDR4 2666MHzx SDRAM (Intel Q370) 4 slots U-DIMM sockets support up to 128GB ECC/ 2666MHzx SDRAM (Intel C246) |
Operating System | Embedded OS Support | Windows 10 LTSC/Linux and windows 2016 server (By project base) |
Expansion slot | PCIe x1 | 1GB/s per direction |
PCIe x4 | 4GB/s per direction | |
PCIe x 8 (Gen3) | (BOM option, but only can choose 2 PCIe x8 or 1 PCIe x16 , default is PCIe x16) | |
PCIe x 16 (Gen3) | 16GB/s per direction | |
M.2 (M key) | 1 (Type :2280 NVMe PCIex4 and SATA M.2 support) | |
M.2(E key) | 1 (Type 2230 for WIFI) | |
Serial | 5 (4 x RS-232, 1 x RS-232/422/485 with auto flow control)/1 (1 x RS-232/422/485 with auto flow control) | |
Physical Characteristics | Dimensions (W x D x H) | 320 x 329.5 x 145 mm |
Weight | 10 kg | |
I/O | HDMI | Supports max resolution HDMI 1.2 1920 x 1200 @ 60 Hz (Colay HDMI 2.0a 4096 x 2160 @ 60 Hz, via BOM Option) |
eDP | 1, Internal pin header, supports max. resolution 3840 x 2160 @ 60 Hz (Internal pin header) | |
Display port | Supports max resolution 4096 x 2304 @ 60 Hz | |
Storage | HDD | 2.5" SATAIII 5KRPM 128M up to 2TB (Support 2 slot 2.5 HDD/SDD by BOM option) |
CD Drive (Optional) | SLIM 8X SATA DVD+/-RW DL BLACK | |
I/O Interface | HDMI | 1 |
Rear I/O Interface | Display port | 2 |
I/O Interface | RS232 | 1 |
I/O | USB | 10 (4 x USB 3.1/2 x USB 3.0 /4 x USB 2.0) |
Front I/O Interface | RJ-45 | 2 (LAN1:Intel I219LLM ; LAN2 Intel I211AT)) |
Audio | Audio | 2 (Line-in/Line-out) |
Power Supply | Power Supply | Input Voltage: internal PSU 100-240V 8-4A 47~63 Hz, maximum output power 500W / Output Voltage: +3.3, 20A; +5V 20A; +12V1, 16A; +12V2, 16A; +12V3 16A; +5Vsb, 3A; -12V, 0.5A; -5V, 0.2A |
Warranty | - | 2 years |
Certification | CE/FCC/CCC/IEC-606061-1/IEC-60601-1-2 4th, RED, KCC |
