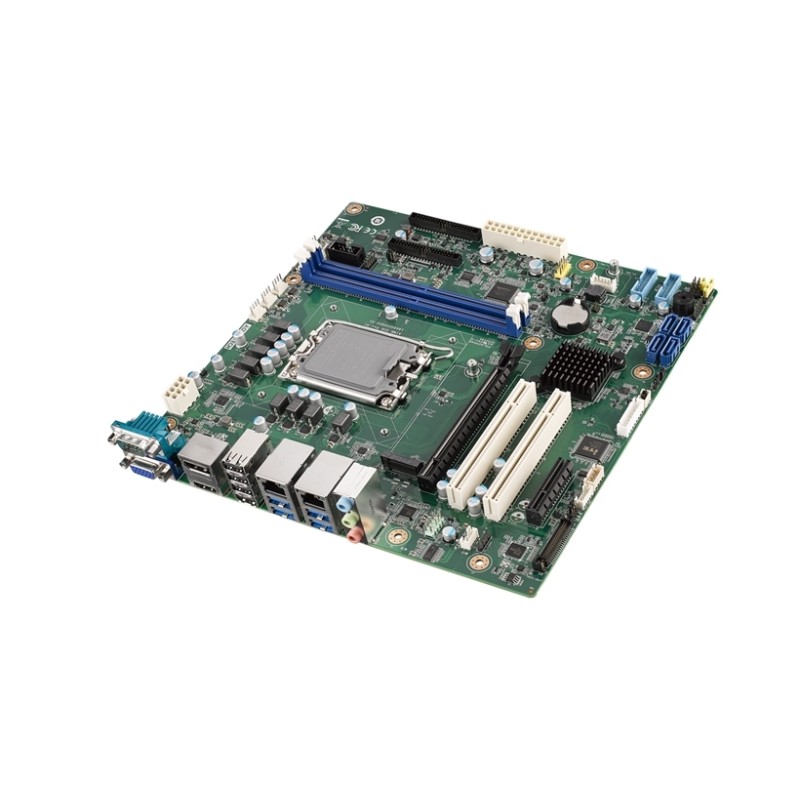

Advantech AIMB-508HL-0AA1

Name: Advantech AIMB-508HL-0AA1
Brand: Advantech
SKU: AIMB-508HL-0AA1
Price: 186 EUR
Availability: OutOfStock

186 €

Tax excluded (incl. VAT: 226 €, 21%)

MicroATX with H610E/4USB3.2/5COM/1G LAN

Intel® Core™ 14/13/12th gen processors with H610E chipset.
Up to 64GB DDR4 UDIMMs for data transfer.
PCIe x16 slot Gen4, PCIe x4 slot Gen3, PCI slot.
Numerous expansion: 8 USB 3.2 ports, 6 USB 2.0 ports, and 10 COM.

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Description
Product Details

Processor	CPU	Intel® 12/13/14th Gen Core™ I Processor
Form Factor	Form Factor	MicroATX
Processor	Core Number	Up to 24C
	Max Speed	Up to 5.2GHz
	CPU TDP	65W / 35W
	BIOS	AMI 64 Mbit, SPI
	Smart Cache	4MB/6MB/12MB/18MB/25MB/30MB
	Chipset	H610E
Memory	Max. Capacity	64 GB
	Technology	Dual Channel DDR4 3200MHz UDIMM
Display	Controller	Intel UHD Graphics
Memory	ECC Support	No
	Socket	2 x 288 pin DIMM
Display	Graphic Engine	DirectX 12,OpenGL 4.5,OpenCL 2.1
	Output	1 x HDMI , 1 x DP++ , 1 x VGA
	DDI (HDMI/DVI/DisplayPort)	HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz
	LCD (TTL/LVDS/eDP)	eDP: support to 3840 x 2160 @ 60 Hz
	Multiple Display	Dual/ Triple
Expansion	PCI Express x 16	1
	PCI Express x 8	0
	PCI Express x 4	1
Ethernet	Controller	Intel i219V and Intel i226V
	Connector	RJ45
Storage	SATA	4 x SATA III (Max. Data Transfer Rate600 MB/s)
	RAID	Software RAID 0, 1, 5, 10
I/O	GPIO	8-bit
	USB 3.2	4
	USB2.0	6
	COM Port	5 x RS232, 1 x RS232/ 422/ 485
	TPM	TPM 2.0
	Smart Fan	Yes
Power	Power Type	ATX
	Connector	ATX24P
Environment	Temperature (Storage)	- 40 ~ 85° C
	Temperature (Operating)	0 ~ 60° C
	Vibration Resistance	3.5 Grms
Physical	Dimension (mm)	244 x 244 mm
	Weight	1.2 kg (2.65 lb)
Operating System	Microsoft Windows	Windows 10
	Linux	Yes
	SUSIAccess	Yes
Certifications	EMC	CE, FCC

Reference AIMB-508HL-0AA1
