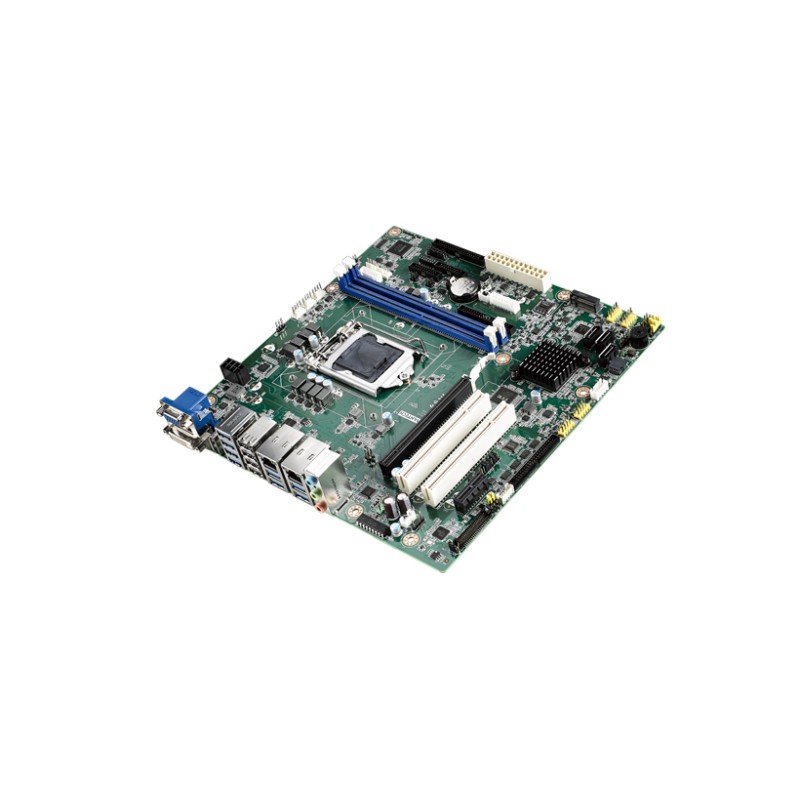

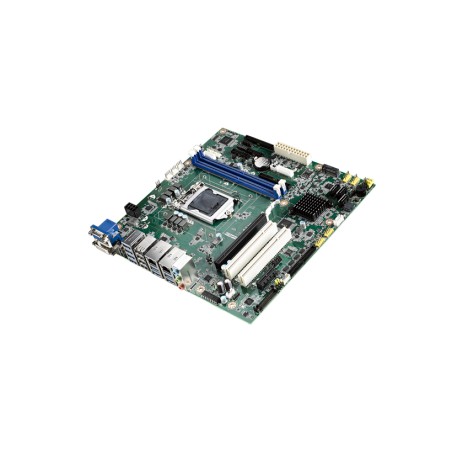

Advantech AIMB-506G2-00A1E
MicroATX with 1VGA/1DVI/1DP/10COM/12USB
- Supports Intel® 8th/9th Gen Core i7/i5/i3 processor with H310 chipset.
- Supports up to 14 COM, 8 USB 3.0, 12 USB 2.0, TPM 1.2/2.0 (optional).
- Supports Dual display of VGA, DP, DVI, eDP, LVDS (optional) and two GbE LAN.
- Two DIMM sockets support up to 64 GB DDR4 2666 MHz SDRAM.
- Supports WISE PaaS/Device-On, McAfee, Acronis, Edge AI Suite and Embedded Software APIs.
Terms and Conditions
* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech AIMB-506G2-00A1E
Form Factor | Form Factor | Micro ATX |
Processor | CPU | Intel Core i7/ i5/ i3/ Pentium/ Celeron |
CPU TDP | 95W/65W/45W/35W | |
BIOS | AMI EFI 128Mbit | |
Core Number | Up to 8 | |
Frequency | Up to 3.6GHz | |
Memory | Max. Capacity | 64GB (up to 32GB per DIMM) |
Processor | L3 Cache | 2 ~ 12MB |
Chipset | Intel H310 | |
Memory | Technology | DDR4 2666MHz |
Display | Controller | Intel HD Graphics |
Graphic Engine | DirectX11.1, Open GL 4.0 | |
VGA | Up to 1920 x 1200 at 60 Hz | |
Memory | ECC Support | No |
Display | LCD (TTL/LVDS/eDP) | eDP: support 3840x2160@ 60Hz / LVDS: support 48bits 1920x1200 (optional) |
Memory | Socket | 2 x 288 pin DIMM |
Display | DDI (HDMI/DVI/DisplayPort) | DP: max resolution 4096 x 2304 @ 60Hz |
Multiple Display | Dual | |
Expansion | PCI Express x 16 | 1 |
PCI | 2 | |
PCI Express x 1 | 1 | |
SMBus | 1 | |
Ethernet | Controller | GbE LAN1: Realtek RTL8111G-CG, GbE LAN2: Realtek RTL8111G-CG |
Speed | 10/ 100/ 1000 Mbps | |
Audio | Audio Interface | HD Audio |
CODEC | Realtek ALC888S, High Definition Audio (HD) | |
Connector | 2 (Line out, Mic-in) | |
Ethernet | Connector | RJ45 x 2 |
Watchdog Timer | WatchDog Timer | Yes |
Storage | RAID | None |
SATA | 3 x SATA III (Max. Data Transfer Rate 600 MB/s) | |
I/O | GPIO | 16-bit GPIO |
USB3.0 | 4 | |
USB2.0 | 8 | |
COM Port | 10 ( 8 x RS232, 2 x RS232/ 422/ 485) | |
TPM | Optional | |
Power | Power Type | ATX |
Connector | ATX24P | |
Battery | Lithium 3 V / 200 mAh | |
Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
Power | Power Consumption (Full Load) | 0.7A @ +5V/ 0.78A @ +3.3V/ 3.462A @ 12V_4P/ 0.303A @ 12V/ 0.53 @ 5VSB |
Environment | Non-Operational Temperature | -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing |
Vibration Resistance | 3.5 Grm (Non-Operation Mode) | |
Physical | Dimension (mm) | 244 x 244 mm |
Weight | 1.2 kg (2.64 lb), weight of total package | |
Operating System | Microsoft Windows | Yes |
Linux | Yes | |
SUSIAccess | Yes | |
Certification | EMC | CE, FCC |
Download
AIMB-506_DS(050421)20210504163507.pdf
AIMB-506_DS(050421)20210504163507.pdf
