* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file ULI-226-Series_DS_(05Oct2023)20231107171943.pdf
Terms and Conditions
| General | Temperature | 0 to 70C |
| Serial Communication | Serial Converter | RS-232 to RS-485 |
| General | Serial Type | RS-485 |
| Serial Communication | Serial Port Connector Type | 1 x DB9 Female, 1 x Terminal Block |
| General | RS-232 Connector | DB9 Female |
| Serial Communication | Serial Port Number | 1 |
| General | RS-422/485 Connector | Terminal Block |
| Serial Communication | Maximum Serial Transmission Speed | 115.2 Kbps |
| Environment | Operating Temperature | 0 ~ 70°C |
| Power | Power Input (DC) | 12 VDC |
| Power Input (Serial) | Port-Powered from RS-232 | |
| Accessory General | Mounting | Inline |
Data sheet
After placing your order, you will receive an email with a proforma invoice that details the most advantageous shipping cost. With us, you won't pay any hidden fees; we do not incorporate shipping costs into the product price. We will also provide you with an estimated delivery date. By confirming the proforma invoice, you give us the green light to dispatch your order and agree to our delivery terms.
We are proud certified partners of brands like Advantech, Westermo, Elproma, and Korenix. This ensures that you are purchasing quality and verified products directly from a trusted supplier. Visit the link to verify our collaboration directly on the official website.
Our team has extensive experience in designing and implementing large industrial projects. We have already collaborated with significant industrial enterprises, metro systems, and railway transport. If you are planning a larger project or need consultation, we are here for you! Our specialists are happy to assist you and prepare an offer tailored precisely to your needs.
Do you have questions or need quick assistance? Our customer service is ready to respond as quickly as possible and provide you with all the information you need.
We believe in the quality of our products and services. If for any reason you are not satisfied, we are happy to help you find a solution.
ULI-226D - RS-232 to RS-485 (2-Wire) Converter, Port Powered, DB9 Female Extend RS-232 data signals up to 1.2 km (4,000 ft). Change RS-232 TD and RD to RS-485 signals. Automatic Send Data Control - no software drivers necessary. Baud rates up to 115.2 kbps. Powered from RS-232 handshake lines - no power supply required.

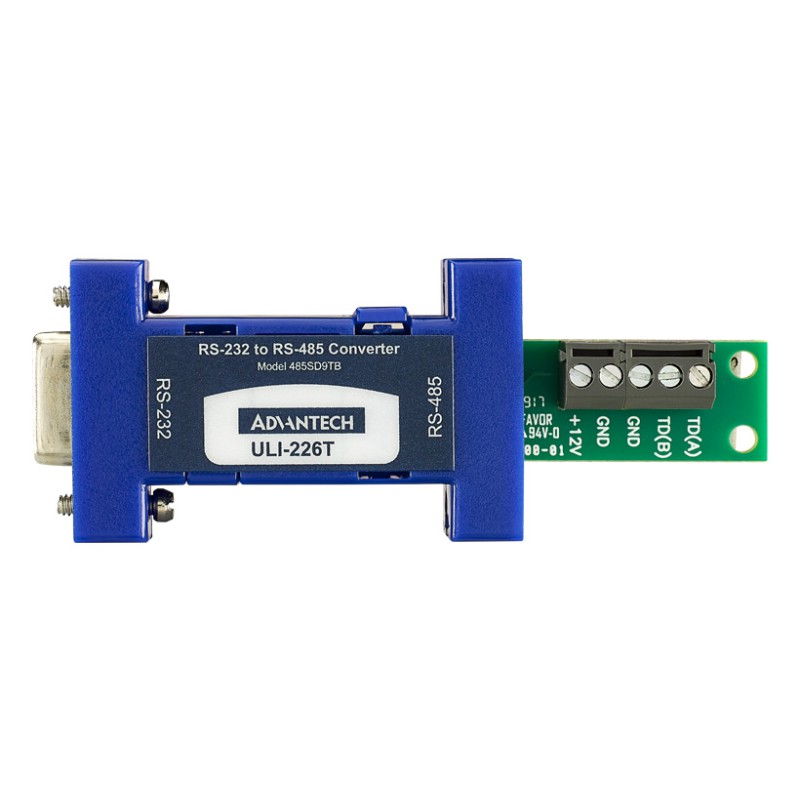

RS-232 to RS-485 Converter – pluggable terminal block Converts RS-232 signals to RS-485 signals. Extends data communication up to 1219 meters (4000 ft). Multi-drop capability - up to 32 receivers per driver. Pluggable terminal block for easy wiring. Data rate: up to 115.2 kbps. Quick, easy inline installation. 12 VDC power supply required (not included,...
ULI-226J - RS-232 (DB9 Female) to RS-485 2-Wire (RJ 11) Converter Extend RS-232 data signals up to 1.2 km (4,000 ft). Change RS-232 TD and RD to RS-485 signals. Automatic Send Data Control - no software drivers necessary. Baud rates up to 115.2 kbps. Powered from RS-232 handshake lines - no power supply required.
Serial Converter, RS-232 DB25 F to RS-485 TB Converts RS-232 to RS-485 signals. Extends data communication up to 1219 meters (4000 ft). Data rate: up 115.2 kbps. Quick inline installation. Terminal block for easy wiring. Multi-drop capability - up to 32 receivers per driver. 12 Vdc power supply required (not included, sold separately).
ULI-226D - RS-232 to RS-485 (2-Wire) Converter, Port Powered, DB9 Female Extend RS-232 data signals up to 1.2 km (4,000 ft). Change RS-232 TD and RD to RS-485 signals. Automatic Send Data Control - no software drivers necessary. Baud rates up to 115.2 kbps. Powered from RS-232 handshake lines - no power supply required.
RS-232 to RS-485 Converter – pluggable terminal block Converts RS-232 signals to RS-485 signals. Extends data communication up to 1219 meters (4000 ft). Multi-drop capability - up to 32 receivers per driver. Pluggable terminal block for easy wiring. Data rate: up to 115.2 kbps. Quick, easy inline installation. 12 VDC power supply required (not included,...
ULI-226J - RS-232 (DB9 Female) to RS-485 2-Wire (RJ 11) Converter Extend RS-232 data signals up to 1.2 km (4,000 ft). Change RS-232 TD and RD to RS-485 signals. Automatic Send Data Control - no software drivers necessary. Baud rates up to 115.2 kbps. Powered from RS-232 handshake lines - no power supply required.
Serial Converter, RS-232 DB25 F to RS-485 TB Converts RS-232 to RS-485 signals. Extends data communication up to 1219 meters (4000 ft). Data rate: up 115.2 kbps. Quick inline installation. Terminal block for easy wiring. Multi-drop capability - up to 32 receivers per driver. 12 Vdc power supply required (not included, sold separately).
