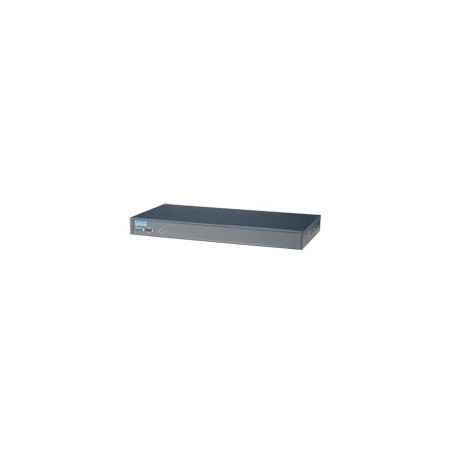

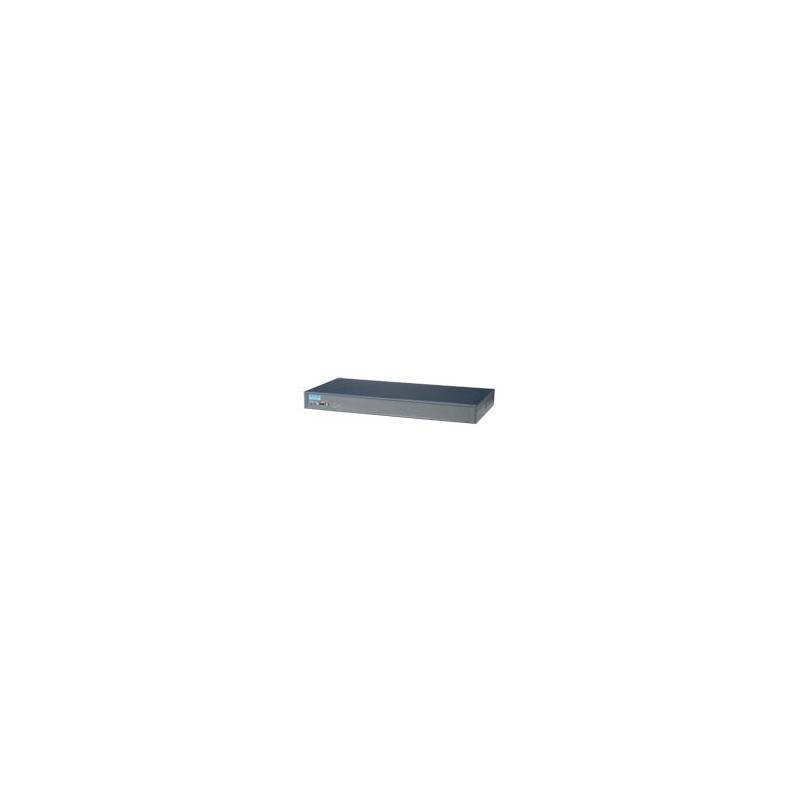

Advantech EKI-1528I-CE

Name: Advantech EKI-1528I-CE
Brand: Advantech
SKU: EKI-1528I-CE
Price: 989 EUR
Availability: InStock

€989

Tax excluded In stock

8-port RS-232/422/485 Serial Device Server - Wide Temp., AC Input, DB9, Rackmount

Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy.
Supports up to 976.5 kbps, and any baud rate setting.
Standard 1U rackmount size.
Provides COM port redirection (Virtual COM), TCP and UDP operation modes.
Built-in buzzer for easy location.
Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console.
SNMP MIB-II for network management.
Built-in 15 KV ESD protection for all serial signals.
8 or 16-port RS-232/422/485 serial communication.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-1528I-CE

The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Certification	EMC	CE, FCC
	EMI	EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
	EMS	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
	Freefall	IEC 60068-2-32
	Safety	UL 60950-1, UL 62368
	Vibration	IEC 60068-2-6
Ethernet Communication	RJ-45 Port Connector Type !	RJ-45
Serial Communication	Serial Port Connector Type	DB9 male
Environment	Humidity (Operating Range)	10 ~ 95% RH
	Temperature (Min. Operating)	-40°Cx
	Temperature (Max. Operating)	70°C (158°F)x
	Temperature (Operating Range)	-40 ~ 70°C (-40 ~ 158°F) x
	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Ethernet Communication	Ethernet Standard	IEEE 802.3 , 802.3u
	RJ-45 Port Number	2
	RJ-45 Transmission Speed	10/100 Mbps x
Serial Communication	Serial Port Number	8
Mechanism	Dimensions (W x H x D)	438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
	IP Rating	IP30
	Mounting (DIN-rail)	Yes
	Mounting (Wall)	Yes
	Weight	2.9 kg
Power	Power Consumption	5.6W
	Power Input (AC)	100 ~ 240 VAC x
	Power Operating Current	0.3A @ 110 VAC ; 0.2A @ 220 VAC
Protection	Reverse Polarity	Present
Serial Communication	RS-232	Yes
	RS-422	Yes
	RS-485	Yes
	Baud Rate	50 ~ 921.6 Kbps
Protection	Port to Port Isolation	-
Serial Communication	Serial Transmission Speed	50 ~ 921.6 Kbps
Software	Configuration	Windows utility, Telnet console, Web Browser
	Driver	Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
	Operation Mode	COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,
Warranty	Warranty Period	5 years

Brand Advantech

Reference EKI-1528I-CE

In stock 17 Items

Data sheet

Temperature (Operating Range): -40 ~ 70°C

Download

EKI-1528_I_TI_N_1526_I_TI_N_DS(031720)20200319162908.pdf
