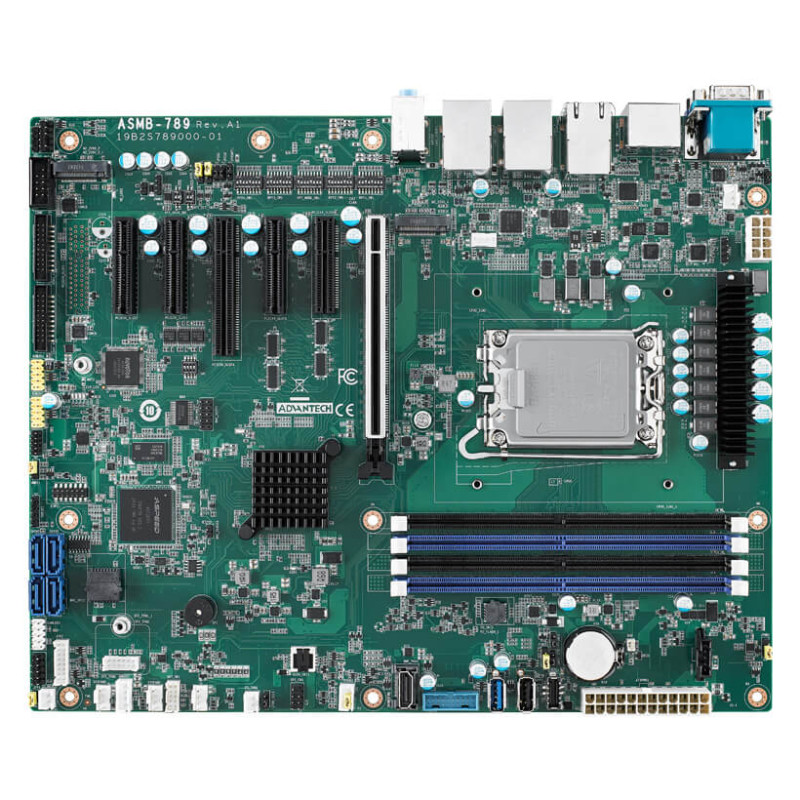

Advantech ASMB-789G2-00A1

Name: Advantech ASMB-789G2-00A1
Brand: Advantech
SKU: ASMB-789G2-00A1
Price: 600 EUR
Availability: InStock

600 €

Tax excluded (incl. VAT: 726 €, 21%) In stock

LGA 1851 ATX Server Board W880 GbEx2

Features an LGA 1851 socket for Intel® Core™ Ultra 9/7/5 processors with the W880 chipset, delivering next-gen performance..
Supports up to 192 GB of high-speed DDR5 ECC/Non-ECC UDIMM memory at up to 5600 MT/s..
Provides extensive expansion with one PCIe x16 (Gen5), one PCIe x8 (Gen5), and five PCIe x4 slots..
Drives triple independent displays through DisplayPort, VGA, and HDMI 2.0 for advanced visual workspaces..
Includes four SATA 3 ports for traditional storage and seven USB 3.2 ports for high-speed peripherals..
Features one M.2 2280 slot (PCIe x4) for fast NVMe SSDs, accelerating boot times and application performance..
Its rackmount-optimized design ensures positive airflow, enhancing cooling and system reliability in server environments..
Built to operate reliably in a 0 ~ 60°C (32 ~ 140°F) ambient temperature range, suitable for various industrial settings..

Technical Documentation:

ASMB-789_DS(091025)20250911093852.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

LGA 1851 Intel® Core™ Ultra 9/7/5 ATX Server Board with 4 x DDR5, 5 x PCIe (1 x Gen 5, 3 x Gen 4, 1x Gen 3), 7 x USB 3.2, 4 x SATA3, Quad/Dual LANs

Processor System	CPU	Intel® Core™ Ultra Processors
	Socket Q'ty	1 x LGA1851
	TDP	Up to 125 W
	Chipset	Intel® W880
Memory	Type and Speed	DDR5 5600 MHz UDIMM
	Channel	2
	Slots	4 x 288-pin UDIMM
	Per Slot Max Capacity	48 GB
	System Max Capacity	192 GB
Expansion	PCIe/PCI Module	1 x PCIe 5.0 x16, 1 x PCIe 5.0 x 8, 4 x PCIe 4.0 x4, 1 x PCIe 4.0 x2
Internal Storage	M.2	1 (PCIe 4.0 x4, NVMe)
Front Panel & I/O	USB	2 x USB 3.2 Gen1 (one onboard header), 4 x USB 2.0 (2 onboard headers), 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen2 Type E
Rear I/O	Display	1 x VGA port, 1 x DVI port, 1 x HDMI port
	USB	4 x USB 3.2 Gen1
LAN	Controller	Intel® I210, Intel® I219, Intel® I226
	1GbE	2
Security	TPM	TPM 2.0 optional module card
Storage	SATA Port	4
Cooling	System Fan	4 x system, 1 x CPU
System Management	Controller	Aspeed AST2600
	IPMI	Advantech remote monitoring utility
Watchdog Timer	Output	System Reset
Environment	Operating Temperature	0 ~ 60 °C
	Non-Operating Temperature	-40 ~ 85 °C
	Operating Humidity	10 ~ 95%
	Non-Operating Humidity	10 ~ 95%, non-condensing
Physical Characteristics	Form Factor	ATX
	Dimensions (L x H)	305 x 244 mm (12" x 9.6")
Certification	EMC	CE/FCC

Reference ASMB-789G2-00A1

In stock 70 Items

Data sheet

Temperature (Operating Range): 0 ~ 60 °C

Download

ASMB-789_DS(091025)20250911093852.pdf
