Advantech ASMB-561I-00A1

Name: Advantech ASMB-561I-00A1
Brand: Advantech
SKU: ASMB-561I-00A1
Price: 697 EUR
Availability: InStock

697 €

Tax excluded (incl. VAT: 844 €, 21%) In stock

SP6 AMD 9004 µATX SMB w/four PCIe5.0 x16 IPMI

Powered by SP6 LGA 4844 AMD® EPYC™ Embedded 8004 Series processors for high-performance edge computing..
Supports up to 576GB of six-channel DDR5 4800 MHz ECC RDIMM memory for massive data processing..
Features four PCIe Gen5 x16 slots with CXL support, enabling high-speed GPU and accelerator integration..
Equipped with both dual 10GbE (Intel® X710-AT2) and dual GbE (I226) ports for flexible, high-speed networking..
Offers four MCIO interfaces for modern storage solutions and five USB 3.2 (Gen1) ports for peripheral devices..
Includes two M.2 2280 slots with PCIe Gen4 x4 interface for fast NVMe boot drives and storage..
Enhances system security with an onboard TPM 2.0 module integrated via the eSPI interface..
Designed for reliability in harsh conditions, supporting a 0 ~ 60°C ambient operating temperature range..

Technical Documentation:

ASMB-561_DS(051425)20250522190632.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

AMD® EPYC™ Embedded 8004 MicroATX Server Board with 6 x DDR5,4 x PCIe5.0 x16, up to 4 x MCIO, 5 x USB 3.2 (Gen1), Dual 10GbE, TPM2.0, IPMI

Processor System	CPU	AMD EPYC™ 8004 processors
	Socket Q'ty	1 x LGA4844
Memory	Type and Speed	DDR5 4800 MHz RDIMM
Processor System	Core Number	Up to 128 cores
Memory	Slots	6 x 288-pin UDIMM
	Channel	1
	System Max Capacity	2 TB
Expansion	PCIe/PCI Module	4 x PCIe 5.0 x16
	MCIO	4 (2 ports for SATA3, 2 ports for PCIE5.0)
Internal Storage	M.2	2 (PCIe 4.0 x4, NVMe)
Front Panel & I/O	USB	2 x USB 3.2 Gen1 ports (one onboard header), 1 x Type-A USB 3.2 Gen1 port

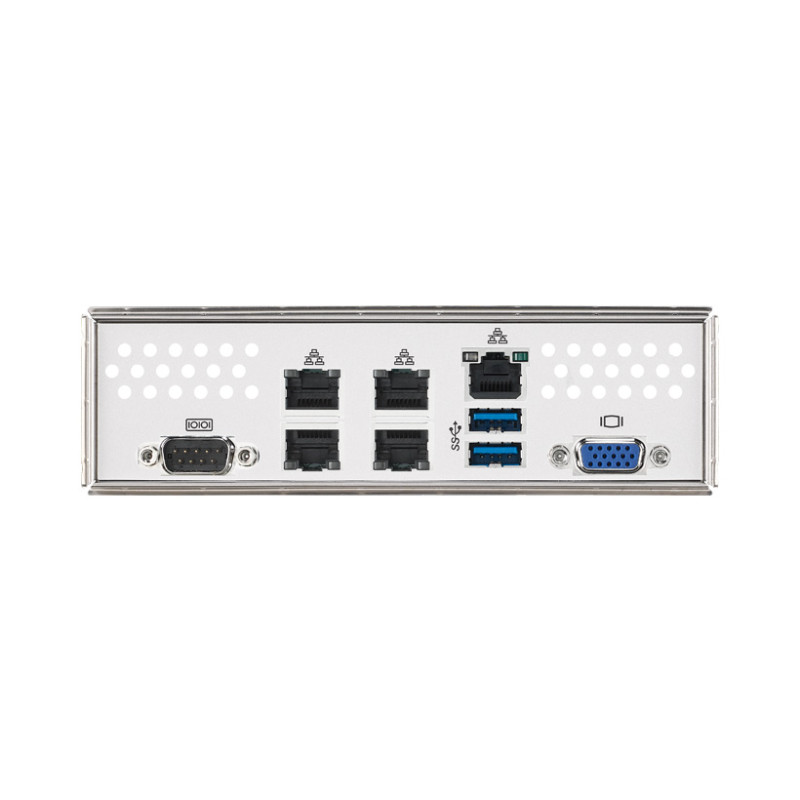

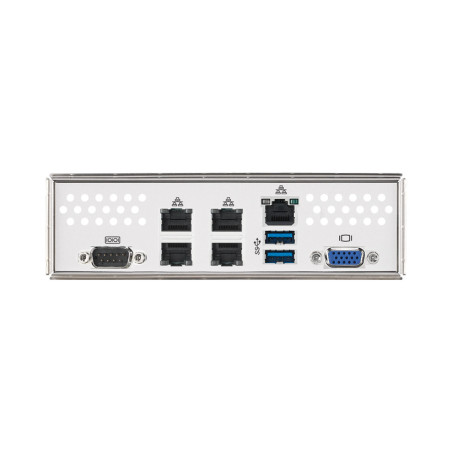

Rear I/O	Display	1 x VGA port
	USB	2 x USB 3.2 Gen1
LAN	Controller	Intel® I226
	2.5GbE	2
	10GbE	-
Security	TPM	TPM 2.0 onboard
Storage	SATA Port	16 x (via 4 x MCIO)
Cooling	System Fan	5 x system, 1 x CPU
System Management	Controller	Aspeed AST2600
	IPMI	IPMI2.0 compliant Advantech iManager
Watchdog Timer	Output	System Reset
Environment	Operating Temperature	0 ~ 60 °C
	Non-Operating Temperature	-40 ~ 85 °C
	Operating Humidity	10 ~ 95%
	Non-Operating Humidity	10 ~ 95%, non-condensing
Physical Characteristics	Form Factor	MicroATX
	Dimensions (L x H)	244 x 244 mm (9.6" x 9.6")
Certification	EMC	CE/FCC

Reference ASMB-561I-00A1

In stock 25 Items

Data sheet

Temperature (Operating Range): 0 ~ 60 °C

Download

ASMB-561_DS(051425)20250522190632.pdf
