Advantech MIO-5355Q6Z-U7A1U

585 €

Tax excluded (incl. VAT: 708 €, 21%) In stock

Qualcomm QCS6490, 3.5" SBC, UFS 128G, -20~70, TW

Qualcomm® QCS6490/QCS5430 on 3.5" SBC, support extend operating temperature -20~70°C.
Powerful but Low Power with 8x Kryo 670 CPU from 1.9 up to 2.7 GHz + Adreno GPU 643 + up to 12.3 TOPs iNPU.
Rugged Design with On-board 8GB LPDDR5 and 128GB UFS or eMMC.
Flexible Displays with HDMI and LVDS or eDP & Rich I/Os: 2x GbE, 6x USB, 4x COM, 2x MIPI-CSI, 1x Audio.
3x M.2 Expansions: M.2 E-Key 2230 for WiFi/BT, M.2 B-Key 3052 for 4G/LTE, M.2 B-Key 2280 for NVMe Storage.
Various OS Support: Yocto BSP, Windows on Arm and Ubuntu.

Technical Documentation:

MIO-5355_DS(120825)20251208111326.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Processor	CPU	Qualcomm Dragonwing™ QCS6490
	Max Turbo Frequency	2.7GHz
	Core Number	8
Memory	Technology	LPDDR5
	Max. Capacity	up to 8 GB
Storage	UFS	Up to 128GB
	eMMC	Up to 128GB
Graphics	GPU	Adreno™ 643
	Max. Frequency	1.25 GHz
AI Engine	NPU	Hexagon™ 770
	Clock Speed	1.45 GHz
Display	LCD	LVDS: Dual channel 18/24-bit, up to 1920 x 1080
	HDMI	1 x HDMI2.0, up to 4096 x 2160
	Dual Display	HDMI+LVDS
Ethernet	Controller	LAN1/LAN2: RTL8211FS
	Speed	10/100/1000 Mbps

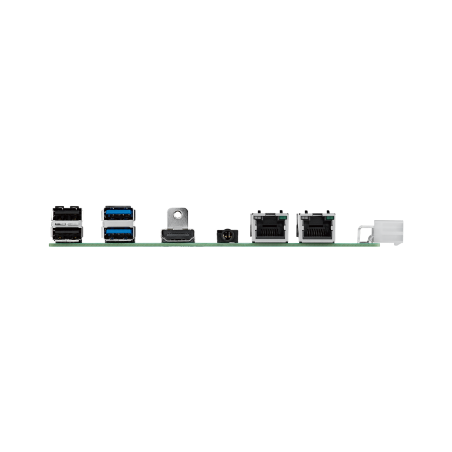

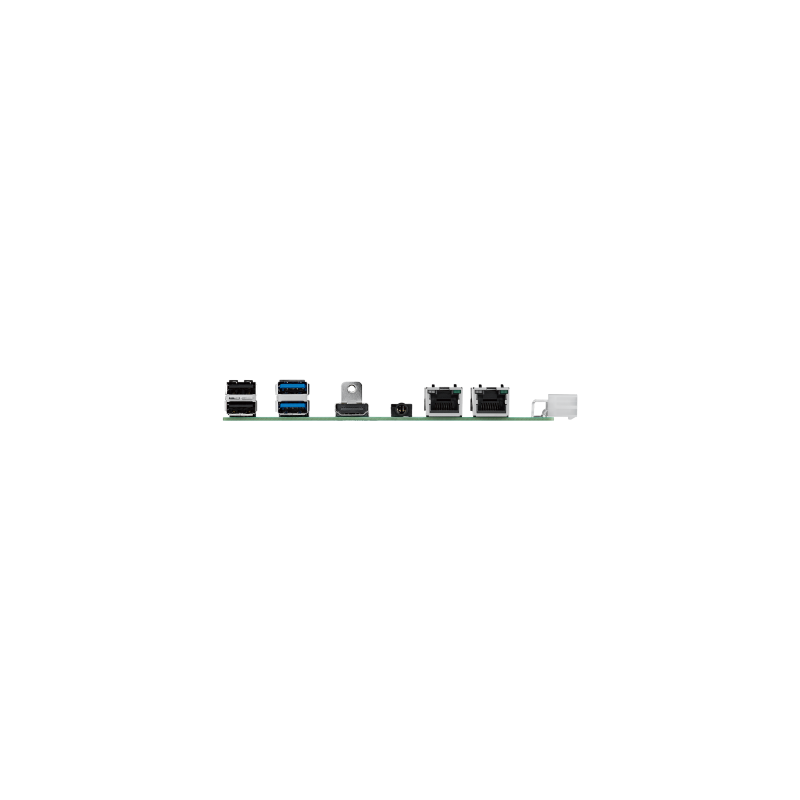

Rear I/O	Ethernet	2
	HDMI	1
	USB 3.0	2
	Audio	1 (Line-Out, Mic-In)
	USB 2.0	2
Internal I/O	USB	2 x USB3.0
	Serial	COM1/2 RS232/422/485, COM3/4 RS232 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)
	GPIO	8-bit general purpose input/output
	I2C	2
	Front Panel Control	Power-on, Reset, Power LED
	Inverter	1
Expansion	M.2 E-Key	1 x E-Key 2230
	M.2 B-Key	1 x B-Key 2280, 1 x B-Key 3052 with Nano-SIM
Power	Power Supply Voltage	12V ± 10%
	Connector	ATX 2x2p
	Power Management	AT, ATX
Environment	Operating Temperature	Standard: 0 ~ 60 °C with 0.7m/s airflow
	Storage Temperature	- 40 ~ 85° C
	Humidity	Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
	Vibration Resistance	3.5 Grms
Certification	EMC	CE, FCC
Mechanical	Dimensions	146 x 102 mm (5.75" x 4.02")

Reference MIO-5355Q6Z-U7A1U

In stock 6 Items

Data sheet

Temperature (Operating Range): Standard: 0 ~ 60 °C with 0.7m/s airflow

Download

MIO-5355_DS(120825)20251208111326.pdf
