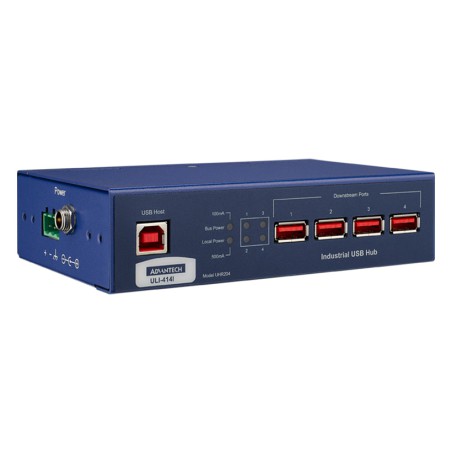

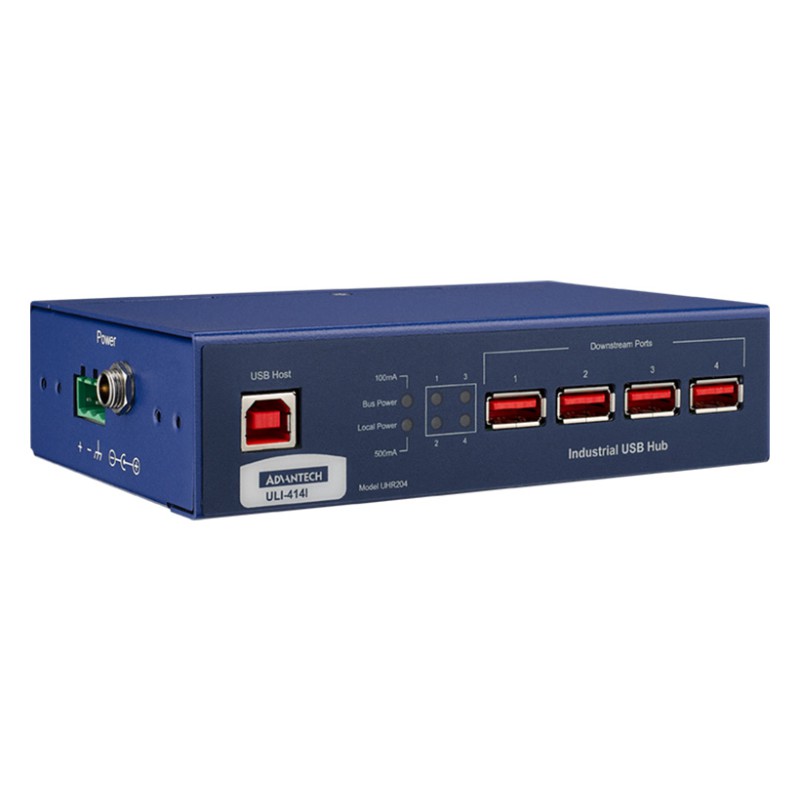

Advantech BB-UHR204

Name: Advantech BB-UHR204
Brand: Advantech
SKU: BB-UHR204
Price: 248 EUR
Availability: InStock

248 €

Tax excluded (incl. VAT: 301 €, 21%) In stock

ULI-414I USB 2.0 Hub, 4 Port, Industrial

Expands one USB port to 4 USB ports (USB 2.0).
ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B.
Data rate: 480 Mbps full speed.
Wide operating temperature: -40 to +80 °C.
Rugged metal case - desk, panel or DIN rail mount (brackets included).
FCC, CE, UL, EMC heavy industrial.
High retention USB port connectors.
USB cable included, 1.8 m.
Bus power or external power (power supply not included, sold separately).

Technical Documentation:

ULI-414_417-Series_DS-(19Jun2024)20240711224639.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

BB-UHR204, 4-port USB hub, is designed and tested to heavy industrial EMC standards and is UL C1/D2 rated. High retention USB ports hold standard cables tight. USB cable included.

General	Technology	USB
	Mounting	DIN, Panel
Power	Power Input (DC)	10 ~ 30 VDC
General	Power	Bus, 10-30VDC
	Temperature	-40 to 80C
Environment	Operating Temperature	-40 ~ 80°C
General	USB Port Count	1
Protection	ESD Protection	8 kV (Contact) ; 15 kV (Air)
Certification	Safety	UL508, Class 1 Division 2
Upstream USB Port	Standard	USB 2.0
	Maximum Transfer Rate	Hi-Speed (480 Mbps)
	Connector Type	Type B (Female) High Retention
	Ports Number	1
Downstream USB Port	Standard	USB 2.0
	Maximum Transfer Rate	Hi-Speed (480 Mbps)
	Connector Type	Type A (Female) High Retention
	Ports Number	4
	Supply Current	500mA for each downstream port
Mechanism	Enclosure (Metal)	Metal
Accessory General	Mounting	DIN

Reference BB-UHR204

In stock 10 Items

Download

ULI-414_417-Series_DS-(19Jun2024)20240711224639.pdf
