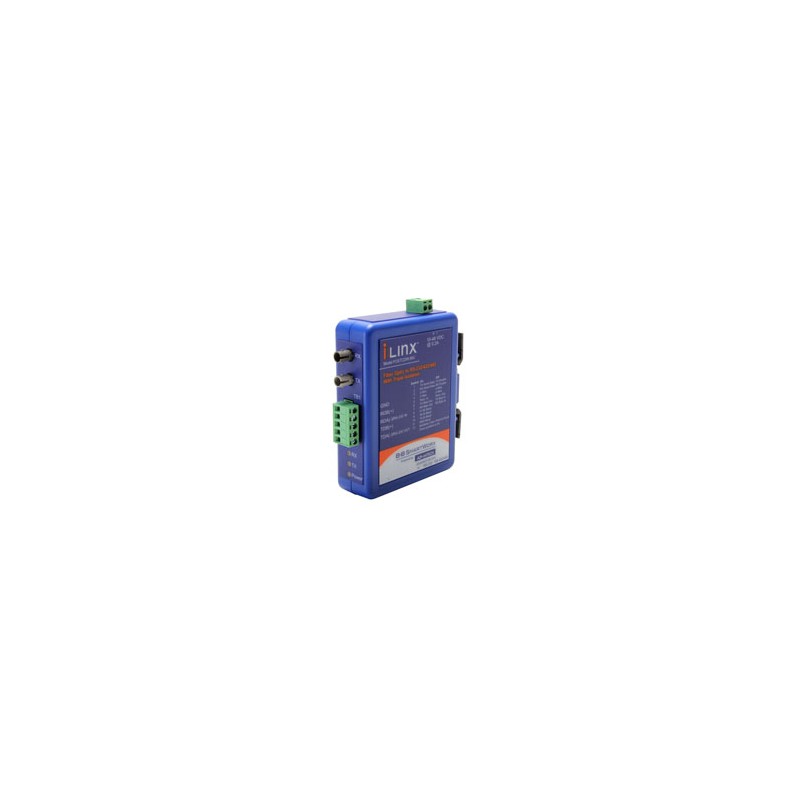

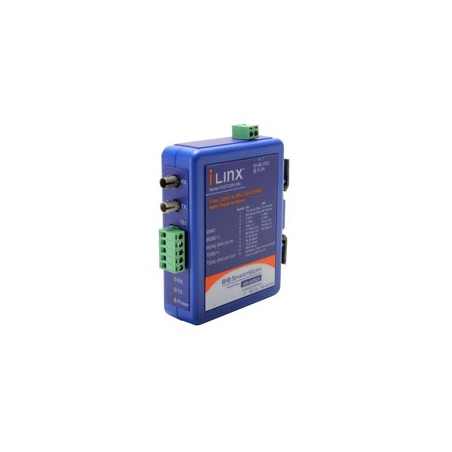

Advantech BB-FOSTCDRI-INV

Name: Advantech BB-FOSTCDRI-INV
Brand: Advantech
SKU: BB-FOSTCDRI-INV
Price: 273 EUR
Availability: OutOfStock

273 €

Tax excluded (incl. VAT: 331 €, 21%)

Serial to Fiber Converter, RS-232/422/485 TB to MM Fiber ST (Inverted), Ind. DIN, C1D2

Converts serial data signals to multi-mode ST fiber optic.
Inverted fiber state - fiber light OFF in idle state.
2 KV 3-way optical isolation (input/output/power); EMI/RFI protection.
Data rate: up to 115.2 kbps.
Wide operating temperature: -40 to +80 °C.
DIN mount, IP20 plastic case.
10–48 VDC power source required (not included, sold separately).
UL Class 1 / Division 2 rated.

Technical Documentation:

BB-FOSTCDRI_BB-FOSTCDRI-INV_1220ds20200319172133.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Model FOSTCDRI-INV is a premium industrial serial to multi-mode fiber optic converter. Its rugged design is UL approved and certified for Class 1/Division 2 industrial environments. It extends data communications up to 4 km (2.5 miles). It provides three-way optical isolation on the input, output and power lines. In addition to direct point-to-point connectivity, it is capable of operating in a multi-drop mode. This allows one serial device to communicate with up to 31 other devices around a fiber ring. Since it supports mixed standards, you can replace other converters and isolators and add the EMI / RFI protection inherent to fiber optic communications. In RS-232 mode, the converter supports Transmit and Receive data. Handshaking signals are not passed through. An Automatic Send Data Control circuit controls the RS-422/485 driver chip, eliminating the requirement for external software. Easy to install and configure, it has a 12-position DIP switch on the bottom to configure RS-422/485 parameters. Serial data and power cables connect to removable terminal blocks. ST connectors are used for the fiber. A 10-30 VDC external power source is required (power supply not included, sold separately). Model FOSTCDRI-INV features an "inverted fiber state" and is suitable for applications requiring the fiber optic transmit light to be Off in the idle state.

General	Technology	Serial
	Mounting	DIN
	Power	10-48VDC
	Temperature	-40 to 80C
	Serial Type	RS-232/422/485
	Serial Connector	Terminal Block
	Fiber Type	Multi-mode

Reference BB-FOSTCDRI-INV

Download

BB-FOSTCDRI_BB-FOSTCDRI-INV_1220ds20200319172133.pdf
