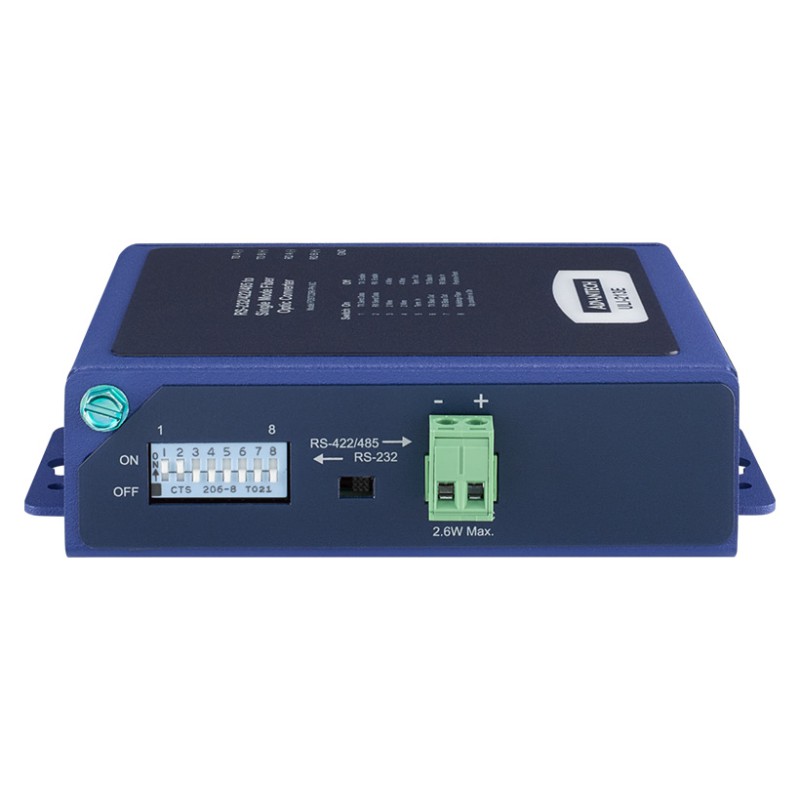

Advantech BB-FOSTCDRI-PH-SC

Name: Advantech BB-FOSTCDRI-PH-SC
Brand: Advantech
SKU: BB-FOSTCDRI-PH-SC
Price: 446 EUR
Availability: OutOfStock

€446

Tax excluded

Serial Converter, RS-232 TB to SM Fiber SC, Ind. Panel, C1D2

Converts serial data signals to multi- or single-mode fiber.
2 KV, 3-way isolation (input, output, power circuits).
Data rate: 9.6 to 115.2 kbps (bit-wise enable).
-40 to +85°C wide operating temperature.
IP30 metal panel mount case (DIN rail adaptable).
FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2.
10-48 VDC power source required (not included, sold separately).
Note: 2 units required to extend data via fiber optic connection (see datasheet).

Quantity

On enquiry

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech BB-FOSTCDRI-PH-SC

Model FOSCTDRI-PH-SC is a premium heavy industrial serial-to-fiber optic converter. Designed for rugged industrial environments, it has been put through some of the most exacting compliance testing in the industry. Meeting IEC 61850-3 and IEEE 1613 requirements, it is suitable for installation in electrical substations. These specifications are more stringent than NEMA TS1/TS2 requirements for transportation applications. Powerful isolation protects equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third level of protection. An external 10-48 VDC power source is required (not included, sold separately). Packaged in a rugged IP30 metal case, this converter converts serial signals to single-mode fiber optic. Bit-wise enabled circuitry automatically detects the data rate without setting a DIP switch. In addition to direct point-to-point connectivity, operation in multi-drop mode is possible. This enables serial devices to communicate with up to 31 others in a fiber ring. Supporting mixed standards, you can replace other converters and add the EMI / RFI protection inherent to fiber optic communications. Note: These converters use a proprietary modulated fiber optic signal. Two units are required to extend the data via the fiber optic connection. Any FOSTCDRi-PH-x converter can (only-) connect to another FOSTCDRi-PH-x converter model at the other end of the fiber optic cable.

General	Technology	Serial
	Mounting	Panel
	Power	10-48VDC
	Temperature	-40 to 85C
Environment	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
General	Serial Type	RS-232/422/485
	Serial Connector	Terminal Block
Environment	Temperature (Operating Range)	-40 ~ 85°C (-40 ~ 185°F) x
General	Fiber Type	Single-mode

Brand Advantech

Reference BB-FOSTCDRI-PH-SC

Data sheet

Temperature (Operating Range): -40 ~ 85°C

Download

ULI-211_212_213-Series_DS_(09Mar2022)20220309112748.pdf
